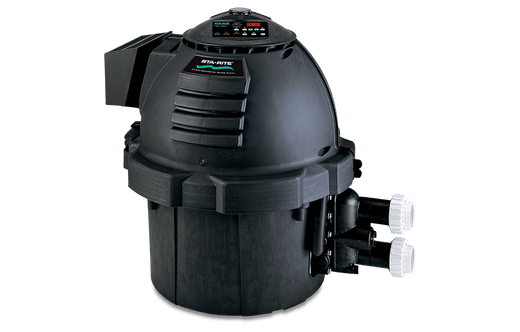

Pentair Max-E-Therm Heater Replacement Parts

Pentair

Pentair Max-E-Therm Heater Replacement Parts

Fits models:Max-E-Therm 200Max-E-Therm 333Max-E-Therm 400Max-E-Therm HD

  • Genuine PentairOEM factory parts
  • Fast ShippingFrom AZ & NV
  • 5 Local StoresPhoenix · Las Vegas
  • Expert HelpReal pool pros
Shop the complete heater

Exploded View

Tap a number to see the part, price and stock.

Pentair Pentair Max-E-Therm Heater Replacement Parts exploded parts diagram

Pick a part

Click any number on the diagram, or choose from the parts list below.

Know the part number? Use the search in the list.

Common Problems

Show the parts that usually fix it.

Replacement Parts (24)

3/4 in. Union

Part # 38404-4097S

Call for availability

Air Blower Kit

Part # 77707-0251 / 77707-0252 / 77707-0253 / 77707-0254 / 77707-0255 / 77707-0256

Call for availability

Enclosure Kit, Upper Right- Hand

Part # 77707-0002

Call for availability

One Piece Metal Chamber/ Combustion Chamber Assembly

Part # 474095 / 474957

Call for availability

Lower Enclosure

Part # 42001-0001S

Call for availability

Enclosure Kit, Upper Left- Hand

Part # 77707-3200N / 77707-3333N / 77707-3400N / 77707-3200L / 77707-3333L / 77707-3400L

Call for availability

Combustion Chamber O-Ring Kit

Part # 474201

Call for availability

Combustion Chamber O-Ring Kit

Part # 474952

Call for availability

One Piece Metal Elbow/ Combustion Chamber Cover Assembly

Part # 474094 / 474958

Call for availability

Metal Vent Cover

Part # 42002-0005S

Call for availability

Kit Lower Enclosure Insulation

Part # 42001-0074S

Call for availability

Gas Orifice Kit – Natural

Part # 77707-0431

Call for availability

Gas Orifice Kit – Natural

Part # 77707-0421

Call for availability

Gas Orifice Kit – Natural

Part # 77707-0411

Call for availability

Gas Orifice Kit – Propane

Part # 77707-0461

Call for availability

Gas Orifice Kit – Propane

Part # 77707-0451

Call for availability

Gas Orifice Kit – Propane

Part # 77707-0441

Call for availability

NG to Propane Conversion Kit

Part # 77707-1461

Call for availability

NG to Propane Conversion Kit

Part # 77707-1451

Call for availability

Propane to NG Conversion Kit

Part # 77707-1431

Call for availability

Propane to NG Conversion Kit

Part # 77707-1421

Call for availability

Air Orifice Kit - (Incl. 6 & 7, 200 Model Only)

Part # 77707-0111

Call for availability

Air Orifice Kit - (Incl. 6 & 7, 333 Model Only)

Part # 77707-0112

Call for availability

Air Orifice Kit - (Incl. 6 & 7, 400 Model Only)

Part # 77707-0113

Call for availability

Blower/Adapter Plate Gasket Kit - (Incl. 8, 9, 10, & 12)

Part # 77707-0011

Call for availability

Flameholder Kit

Part # 77707-0202

Call for availability

Flameholder Kit

Part # 77707-0203

Call for availability

Flameholder Kit

Part # 77707-0204

Call for availability

Lower Enclosure Insulation

Part # 42001-0074S

Call for availability

Insulation Kit (Incl. 13, 15, 20, 21, 22, 23, 24, 25, 26)

Part # 77707-0008

Call for availability

Air Orifice Kit 333 Model

Part # 77707-0112

Call for availability

Air Orifice Kit 400 Model

Part # 77707-0113

Call for availability

Rodent Resistant Air Orifice Protection Cap

Part # 475265

Call for availability

Bolt Down Kit

Part # 42001-0085S

Call for availability

Display Cover Retainer Cap Kit, Cap and CPSC Warning Label

Part # 77707-0009

Call for availability

Igniter Bracket

Part # 42001-0030S

Call for availability

Igniter Gasket

Part # 42001-0066S

Call for availability

High Limit Switch

Part # 42001-0063S

$47.94$59.99In Stock

Thermistor

Part # 42001-0053S

$58.94$79.99In Stock

Terminal Board

Part # 42001-0056S

Call for availability

Fireman’s Switch Fuse (1.25A, 1-1/4 in.)

Part # 32850-0099Z

Call for availability

Transformer, 115/230V

Part # 42001-0107Z

Call for availability

Air Flow Switch

Part # 42001-0061S

$99.94$149.99In Stock

Junction Box Cover Kit

Part # 77707-0022

Call for availability

Stack Flue Sensor

Part # 42002-0024S

$94.94$123.99In Stock

Stack Flue Switch NOT SHOWN

Part # 42002-0009

Call for availability

Heater Wiring Harness - 115/230V

Part # 461107

Call for availability

120/240 Volt Plug Kit

Part # 42001-0105S

Call for availability

Temp Probe Pro Service Page

Part # 42002-0009

Call for availability

- Electrical Parts (includes items in a reusable hardcase: 4, 7 qty (2), 8 qty (2), 9 qty

Part # 461101

Call for availability

Coil/Tubesheet Sealing O-Ring Kit

Part # 77707-0117 / 77707-0118 / 77707-0119

Call for availability

O-Ring

Part # U9-266

Call for availability

Drain Plug

Part # U178-920PZ

$8.94$14.99In Stock

Kit Pressure Relief Valve

Part # 473715Z

Call for availability

2 in. Union Adapter Package (includes 2) Pro Service Package - Water

Part # Call for part number

Call for availability

System Parts (Includes items in reusable hard case; #8, #9, #15, not shown - Thermistor qt

Part # 461102

Call for availability

qty(2), AGS Switch qty(2)) Accessories and Documents Bundle

Part # 462052

Call for availability

Bypass Access Plug (Old Header Design ASME)

Part # 472648Z

Call for availability

- 400 Heat Exchanger Kit ASME

Part # 474956

Call for availability

(Old ASME Bypass Valve Kit Header Design)

Part # 460923

Call for availability

Thermal Regulator Kit (incl. spring clip & install tools) (ASME) (Old Heater Design)

Part # 460924

Call for availability

Heat Exchanger Kit - 250 ASME

Part # 460941

Call for availability

Heat Exchanger Kit - 250 ASME

Part # 474097

Call for availability

Interactive exploded-view parts diagram for the Pentair Max-E-Therm Heater. Switch between the Burner System, Electrical System, Water System views, then click any numbered part to see the part number, price and stock, or call us and we will find it for you.
