Pentair MasterTemp/Max-E-Therm Tube Sheet Coil Assembly | 474061
Pentair
SKU: 474061
Pentair Tube Sheet Coil Assembly Kit (New Tub Design) for MasterTemp® / Max-E-Therm® 400 | 474061
The Pentair 474061 is a complete tube sheet coil assembly kit (heat exchanger assembly) for select 400,000 BTU Pentair MasterTemp® and Sta-Rite Max-E-Therm® pool/spa heaters. It’s used to restore proper heat transfer and water sealing when the original coil/tube sheet assembly is leaking, scaled, damaged by corrosion, or freeze-stressed.
Compatibility
- Pentair MasterTemp® 400 models: 400NA and 400LP1
- Sta-Rite Max-E-Therm® 400 (NA/LP series where parts diagram specifies 474061)
- Heaters manufactured after 01/12/2009 (new tub design)
Tip: MasterTemp/Max-E-Therm coil kits are model- and revision-specific. Confirm your heater model and manufacture date so you get the correct “new tub design” kit.
What This Kit Does
- Replaces the heater’s internal tube sheet/coil heat exchanger assembly
- Restores proper water sealing and heat transfer through the heater
- Helps correct leaks or loss of performance caused by a compromised coil assembly
What’s Included

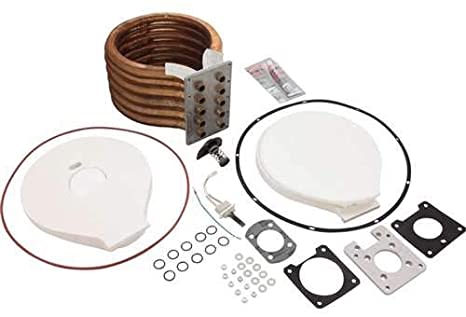

- Tube sheet coil assembly kit for MasterTemp/Max-E-Therm 400 (new tub design)
- Seal/O-ring and gasket components commonly included with the kit for coil installation (contents can vary by packaging revision)
Common Reasons to Replace
- Water leaking from inside the heater (coil/tube sheet area)
- Reduced heating performance due to heavy scaling or internal restriction
- Freeze damage, cracking, or corrosion on the heat exchanger assembly
- Major heater rebuild where you want fresh seals and core water-system components
Installation Notes
- Turn off gas and power at the breaker, and allow the heater to cool fully before service.
- Shut off the pump, relieve pressure, and drain the heater water circuit as needed.
- Clean mating surfaces thoroughly before installing new seals to reduce leak risk.
- Reassemble evenly and verify no leaks during startup and heat-up.
- Heater service should be performed by a qualified pool professional or technician.
Specifications
- Brand: Pentair
- Part Number: 474061
- Part Type: Tube Sheet Coil Assembly Kit (heat exchanger assembly)
- Heater Size: 400,000 BTU class (400 models listed above)
- Design: Post-01/12/2009 (new tub design)
Related Products
- Search Aqua Pool Supply for 474061
- Pentair MasterTemp 400 replacement parts
- Sta-Rite Max-E-Therm 400 replacement parts
- Heater gaskets & seals
- Heater union kits
Maintenance Tips
- Maintain balanced water chemistry to reduce scale buildup that restricts flow and lowers heat transfer efficiency.
- Keep circulation strong (clean baskets and filter) to avoid heater cycling and overheating.
- If your area freezes, winterize properly—freeze damage is one of the most common causes of coil failure.
- If you see recurring internal leaks, address water balance and bonding/grounding issues that can accelerate corrosion.
