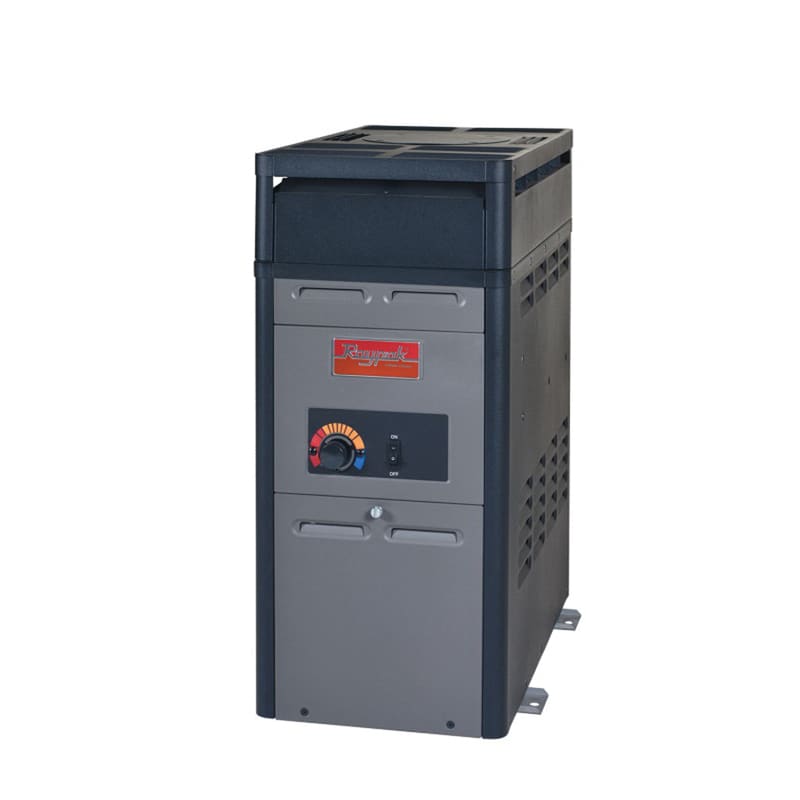

Raypak P-R106A-AP-C Analog Control Propane Gas Heater, 105K BTU, 120V, Polymer Headers, Electronic Ignition, Copper Exchanger, 85 lbs | 014781
Raypak
SKU: 14781
Raypak 014779 P-R106A-AN-C Analog Natural Gas Heater 105K BTU
The Raypak 014779 P-R106A-AN-C Analog Control Natural Gas Pool and Spa Heater is a compact 106A-series heater designed for natural gas applications. This model features analog temperature control, electronic ignition, polymer headers, and a copper heat exchanger for dependable heating in properly sized pool and spa systems.
This heater is commonly used for above-ground pools, smaller pools, and spa applications where a 105K BTU natural gas Raypak 106A heater is required. Always confirm gas type, elevation, local code requirements, pool size, plumbing, clearances, and heater sizing before ordering.
Product Features
- Genuine Raypak 106A analog pool and spa heater
- Manufacturer part number: 014779
- Model: P-R106A-AN-C
- 105,000 BTU input natural gas heater
- Analog thermostat control
- Electronic ignition
- Polymer headers for corrosion-resistant water connections
- Copper heat exchanger for standard pool and spa applications
- Automatic water bypass
- Compact footprint for tight equipment pads
- 120V power cord with 3-prong plug where specified
Product Details
| Brand | Raypak |
| Part Number | 014779 |
| Model | P-R106A-AN-C |
| Product Type | Analog Gas Pool and Spa Heater |
| Fuel Type | Natural Gas |
| Heater Size | 106A / 105K BTU class |
| Elevation Range | 0 to 4,999 ft where specified |
| Ignition Type | Electronic Ignition |
| Control Type | Analog Thermostat |
| Header Type | Polymer Headers |
| Heat Exchanger | Copper Tubing |
| Voltage | 120V where specified |
| Shipping Weight | 85 lbs |
| Application | Pool, spa, and above-ground pool heating |
Compatibility
- Pool and spa systems requiring a Raypak P-R106A-AN-C natural gas heater
- Above-ground pool heating applications where this model is properly sized
- Smaller pool and spa applications requiring a 105K BTU class natural gas heater
- Installations located at 0 to 4,999 ft elevation where this model is specified
- Outdoor installations where this heater is approved by local code and installed to Raypak specifications
Common Uses
- Heating above-ground swimming pools
- Heating smaller residential pools
- Heating spas when properly sized and plumbed
- Replacing a compatible Raypak 106A natural gas heater
- Equipment pad installations requiring a compact natural gas heater
Important Notes
- This item is the heater only.
- Gas line, electrical outlet, bonding, plumbing fittings, unions, venting, indoor draft hood, check valves, bypass plumbing, pressure relief valve where required, and installation materials are sold separately unless otherwise stated.
- This model is natural gas only. Do not use propane unless the exact propane model is ordered.
- Verify natural gas availability, gas line sizing, elevation range, and local code requirements before ordering.
- This is an analog 106A heater and is not the same as larger Raypak Digital, ASME, Low NOx, cupro-nickel, commercial, or propane models.
- Some jurisdictions require Low NOx heaters or have restrictions on standard atmospheric gas heaters. Confirm local requirements before purchase or installation.
- Improper water chemistry, low flow, scale, corrosive water, freeze damage, or improper bypass settings can damage the heater and heat exchanger.
- Gas heater installation and service should be performed by a qualified pool heater professional according to Raypak instructions and local code.
Installation Notes
- Confirm the model, fuel type, altitude range, BTU size, and local code requirements before installation.
- Install the heater on a level, non-combustible equipment pad with proper service access and clearances.
- Size the natural gas line according to the heater demand, gas type, run length, and local code.
- Confirm proper water flow through the heater before firing.
- Use proper plumbing practices and install any required check valves to protect the heater from chemical backflow.
- Bond and wire the heater according to the installation manual and applicable electrical code.
- Verify inlet/outlet plumbing orientation before startup.
- Check for gas leaks, water leaks, proper ignition, and correct temperature operation during startup.
- Register the heater and keep installation records, serial number, and startup documentation for warranty and service reference.
Related Products
- Raypak 014779 P-R106A-AN-C Analog Natural Gas Heater
- Raypak 014781 P-R106A-AP-C Analog Propane Gas Heater
- Raypak 014784 P-R156A-EN-C Digital Natural Gas Heater
- Raypak 014786 P-R156A-EP-C Digital Propane Gas Heater
- Raypak 006723F 2" CPVC Connector & Nut Kit
- Raypak 006737F 1.75 PSI Pressure Switch
- Raypak 006736F 120/240V to 24V Transformer
- Raypak 005899F 106 / 156 Thermal Cut-Off Fuse Kit
- Raypak 014874F 106A Polymer Tube Bundle
Maintenance Tips
- Maintain proper pool water chemistry to help protect the copper heat exchanger.
- Keep pH, alkalinity, calcium hardness, and sanitizer within recommended ranges.
- Clean the pool filter regularly to maintain proper heater flow.
- Inspect the heater area for leaves, debris, insects, rodents, and restricted airflow.
- Check the equipment pad for water leaks, gas odor, rust, or signs of overheating.
- Winterize the heater properly in freeze-prone conditions.
- Have ignition, gas pressure, flame quality, venting, safety controls, and heat exchanger condition checked by a qualified heater technician during routine service.
