Raypak 120/240V 24V Transformer | 006736F
Raypak
SKU: 006736F

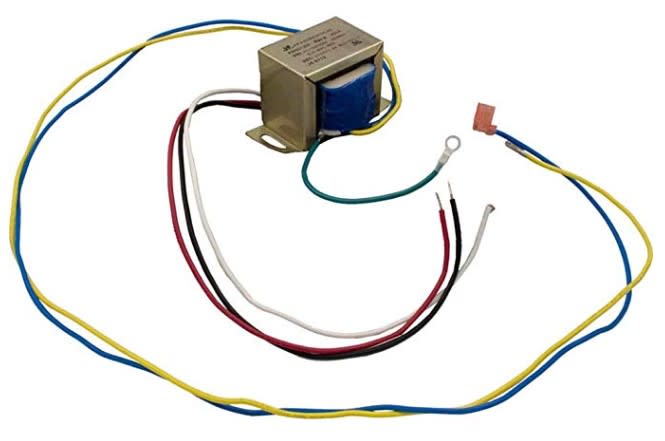

Raypak 006736F Transformer Replacement Kit (115/230 V to 24 V)
The Raypak 006736F transformer kit is a factory-approved replacement component for Raypak pool & spa heaters. Designed to convert standard 115 V or 230 V input to the 24 V control circuit required by models like the R185A, R265A, R335A, R405A, 185A, 207A and others.
Key Features
- Dual-voltage input: supports both 115 V and 230 V supply.
- Provides 24 V low-voltage output for the heater control board and ignition system.
- Includes mounting hardware and wiring harness for simplified replacement.
- OEM part from Raypak — ensures compatibility with specified heater models.
Technical Specifications
- Part Number: 006736F
- Input Voltage: 115 V / 230 V
- Output Voltage: 24 V (nominal)
- Application: Compatible with Raypak heater models R- series (R185A, R265A, R335A, R405A) and others using the same control scheme.
- Mounting Type: Surface mount kit with wiring harness.
Installation & Compatibility Notes
Before replacing the transformer, shut off power to the heater and allow it to cool. Remove the heater access panel, disconnect the old transformer wiring and remove the old unit. Install the new 006736F transformer in the same location, secure properly, and reconnect the wiring harness per the original configuration (observing correct input voltage). Restore power and verify the heater control board displays correct 24 V via the transformer output. If more than 7–8 V appears or no output at all, the transformer may be faulty.
Maintenance Tips
- Check low-voltage output during annual service; any readings significantly below 24 V indicate potential failure.
- Inspect wiring and connections for corrosion, overheating or signs of charring.
- Ensure ventilation around the transformer to avoid thermal stress and prolong life.
- Replace the transformer as part of preventive maintenance if the heater is more than 8–10 years old or experiencing frequent control-board faults.
Why Choose This Transformer Kit?
Original equipment manufacturer (OEM) components like the Raypak 006736F provide a reliable solution for maintaining or restoring heater operation. Using the correct transformer ensures proper voltage to the control board and ignition system, reducing service callbacks and enhancing system safety and durability.
