Pentair Amerlite Face Ring Assembly w/ Screw | 79110600
Pentair
SKU: 79110600

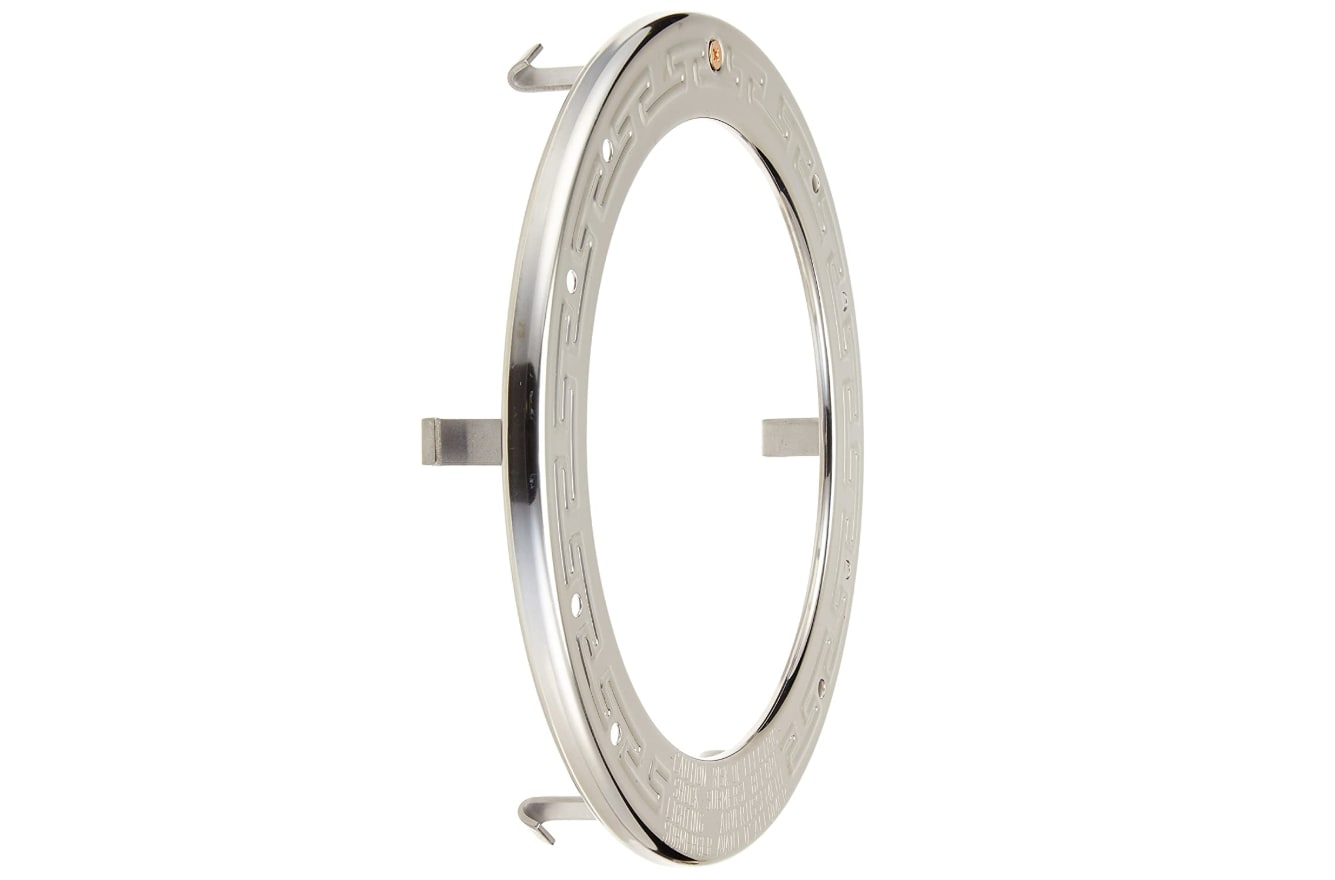

Pentair Stainless Steel Face Ring Assembly for Large Pool & Spa Lights | 79110600
The Pentair 79110600 is a genuine stainless steel face ring assembly used on select Pentair and American Products large-format underwater pool and spa lights. The face ring secures the lens to the light housing and provides the finished trim appearance at the pool wall. Replace it when the ring is corroded, pitted, bent, or no longer clamps the lens evenly.
Compatible Light Series
- Pentair AmerLite (large lights)
- Pentair SAm® Spectrum AmerLite
- Pentair AmerQuartz
- Pentair IntelliBrite® 5G White and Color LED (commonly listed for units produced after 2009)
- Tip: Match your light’s parts diagram and ring size before ordering (large light trim components are not interchangeable with small lights).
Key Features
- Stainless steel construction for durability and corrosion resistance at the waterline.
- Maintains lens clamp pressure so the gasket can seal properly (gasket sold separately).
- Restores the finished trim look when the original ring is stained, warped, or damaged.
- OEM-fit replacement for compatible Pentair/American Products light assemblies.
Specifications
- Brand: Pentair
- Part Number: 79110600
- Part Type: Face ring assembly (stainless steel)
- Catalog Reference (common): 3525-15
- Cross Reference (common): AMP-301-1232
- UPC: 788379651206
- Approx. Outer Diameter: 10.15"
- Approx. Inner Diameter: 7.5"
- Quantity: Sold individually
Common Reasons to Replace
- Face ring shows pitting, rust staining, or sharp corrosion edges
- Ring is bent/warped and won’t sit flat on the lens/gasket stack
- Uneven clamping causes recurring moisture intrusion after service
- Cosmetic renovation to restore the light’s finished appearance
Installation Notes
- Turn off power at the breaker and follow all underwater light safety procedures.
- Always replace the lens gasket when opening the light; reusing old gaskets is a common cause of leaks.
- Clean lens and housing sealing surfaces thoroughly before reassembly.
- Tighten hardware evenly to avoid distorting the ring and pinching the gasket.
- Do not over-tighten; stainless hardware can still strip threads in older housings if forced.
Related Products
- Search Aqua Pool Supply for 79110600
- Large Light Lens Gasket (79101600Z / O-170 style)
- AmerLite lenses
- IntelliBrite 5G parts
- Pool light gaskets
Maintenance Tips
- If you service the light (bulb/LED engine work), replace the gasket and inspect the ring for flatness before reinstalling.
- Rinse chemical residue from the ring area when possible; concentrated chemicals at the waterline can accelerate corrosion.
- If you see fogging or water inside the lens after reassembly, shut power off and re-check gasket seating and clamping immediately.
