Pentair IntelliBrite Architectural Series 120V Pool Light Replacement Parts

Pentair

Pentair IntelliBrite Architectural Series 120V Pool Light Replacement Parts

Fits models:IntelliBrite Architectural 120V PoolWhiteWarm White / TurtleColor

  • Genuine PentairOEM factory parts
  • Fast ShippingFrom AZ & NV
  • 5 Local StoresPhoenix · Las Vegas
  • Expert HelpReal pool pros

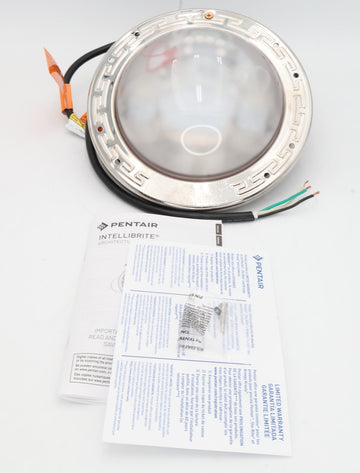

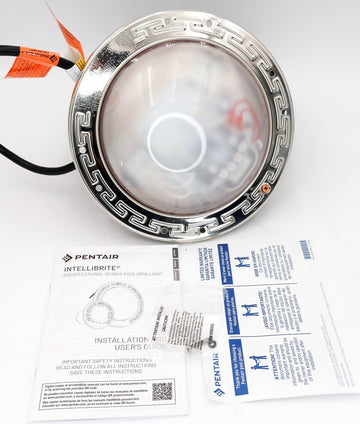

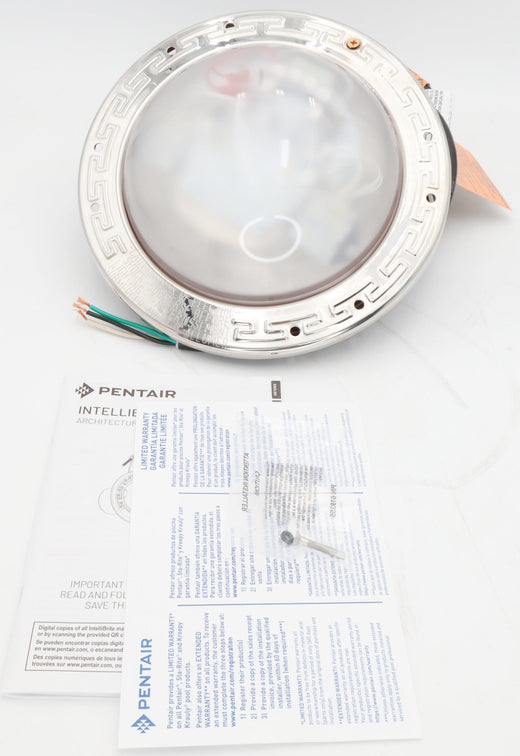

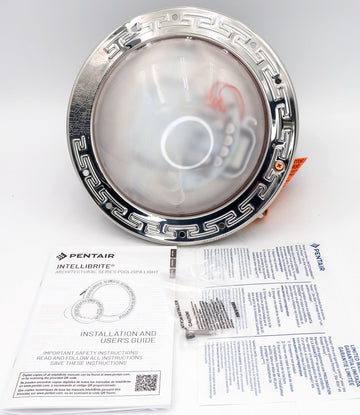

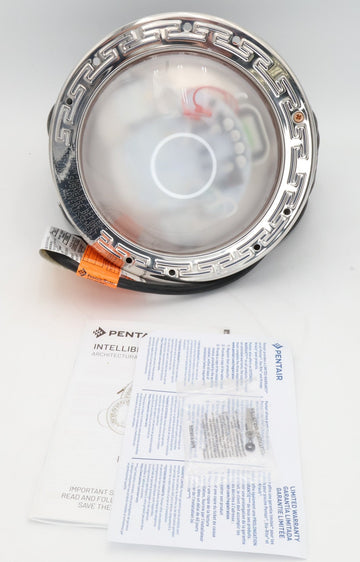

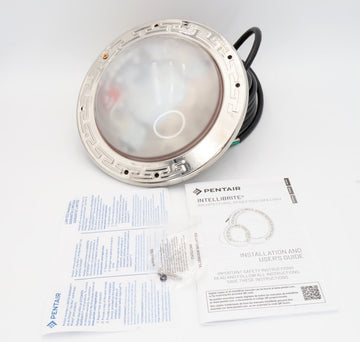

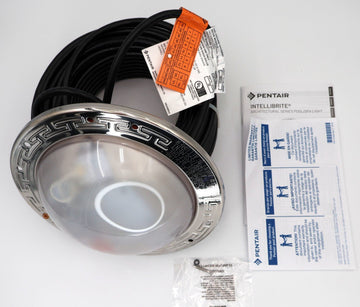

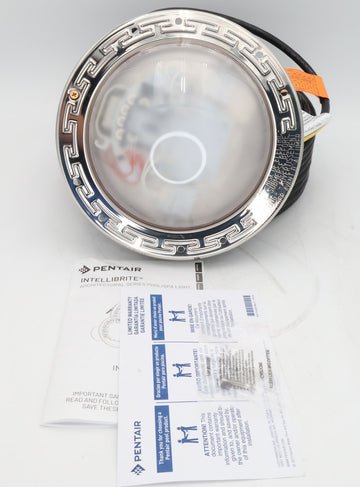

Shop the complete light

Exploded View

Tap a number to see the part, price and stock.

Pentair Pentair IntelliBrite Architectural Series 120V Pool Light Replacement Parts exploded parts diagram

Pick a part

Click any number on the diagram, or choose from the parts list below.

Know the part number? Use the search in the list.

Common Problems

Show the parts that usually fix it.

Replacement Parts (12)

Pilot Screw

Part # 79104800Z

+1 more option

$7.94$12.99In Stock

Lens Kit

Part # 602168

Call for availability

Gasket

Part # 620400z

Call for availability

LED Board Kit

Part # 618091z / 618090z / 618092z / 618137z / 618135z / 618136z

Call for availability

White Light Assembly, 300W, 30 ft. (9.2 m)

Part # 602181

Call for availability

White Light Assembly, 300W, 250 ft. (76.2 m)

Part # 602207

Call for availability

White Light Assembly, 500W, 30 ft. (9.2 m)

Part # 602177

Call for availability

White Light Assembly, 500W, 250 ft. (76.2 m)

Part # 602208

Call for availability

Warm White / Turtle Light Assembly, 30 ft. (9.2 m)

Part # 602189

Call for availability

Warm White / Turtle Light Assembly, 50 ft. (15.2 m)

Part # 602190

Call for availability

Warm White / Turtle Light Assembly, 100 ft. (30.5 m)

Part # 602191

Call for availability

Warm White / Turtle Light Assembly, 150 ft. (45.7 m)

Part # 602192

Call for availability

Warm White / Turtle Light Assembly, 250 ft. (76.2 m)

Part # 602221

Call for availability

Warm White / Turtle Light Assembly (Turtle), 150 ft. (45.7 m)

Part # 602223

Call for availability

Color Light Assembly, 30 ft. (9.2 m)

Part # 602185

Call for availability

Color Light Assembly, 250 ft. (76.2 m)

Part # 602206

Call for availability
