Hayward Pool VAC Navigator Universal A-Frame Kit | AXV621D
Hayward Products
SKU: AXV621D
Hayward AXV621D – Universal A-Frame Kit
Product Overview
This A-Frame kit from Hayward is designed to upgrade select suction-pool cleaners with the latest “V-Flex” turbine technology. It includes all the components needed to enhance the cleaner’s internal A-frame drive, improve debris pickup and support variable-speed pump circulation.
Key Features
- Two A-frames and bushings for improved debris handling and longer service life.
- Saddle, keeper, pod screws and washers included—complete hardware kit for the A-frame assembly.
- Works with many suction-side cleaners and all major hose systems when matched with the correct body or pod branch.
- Optimized for modern pool systems—including variable-speed pumps and low-flow operation.
Technical Specifications
- Part Number: AXV621D

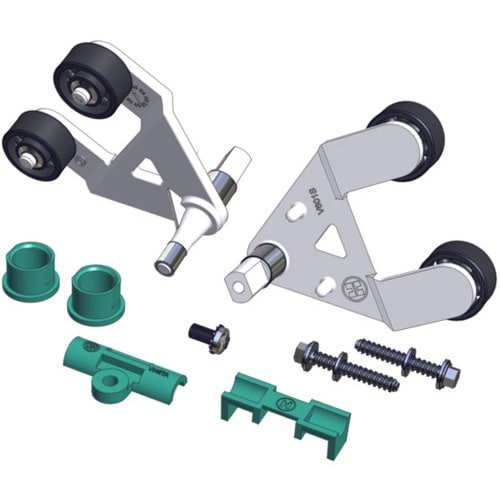

- Contents: 2 A-frames + 2 bushings + saddle + keeper + 2 pod screws + 2 pod washers
- UPC: 610377912594
- Applicable Cleaner Type: Suction-side in-ground pool cleaners (consult cleaner model for compatibility)
Compatibility & Fitment
This kit fits many models of suction-side pool cleaners including those in the Hayward PoolVac and Navigator families. Always verify your cleaner’s model number before installing to ensure fit. Works for concrete or vinyl pools when matched properly.
Installation Instructions
- Turn off the pool circulation pump and relieve pressure from the system.
- Remove the cleaner from the pool and access the A-frame drive mechanism.
- Disassemble the old A-frame components, install the new A-frames, bushings and hardware from the kit.
- Re-assemble the cleaner, reinstall in the pool and verify correct travel, suction and performance across the pool floor and wall.
Troubleshooting
- The cleaner is not tracking properly: Check that the A-frame bushings are seated and rotating freely and that the frame is not binding.
- Reduced debris pickup: Confirm the A-frames are installed correctly, the cleaner hose length is correct and the pump suction flow is adequate.
- Excess wear on the A-frames: Inspect the impact surfaces and bushing wear—replace any damaged items to restore optimal performance.
Maintenance Tip
Inspect the A-frame and bushings during your seasonal cleaner service. Replacing the A-frame kit at the first sign of wear will help maintain cleaning efficiency, extend the life of the cleaner and keep pool circulation optimal.
