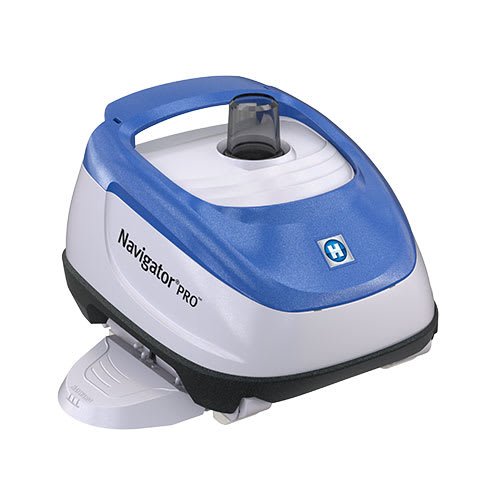

Hayward Navigator Pro Replacement Parts

Hayward

Hayward Navigator Pro Replacement Parts

Fits models:W3925ADCW3925ADV925ADC925ADV925ADHBX

  • Genuine HaywardOEM factory parts
  • Fast ShippingFrom AZ & NV
  • 5 Local StoresPhoenix · Las Vegas
  • Expert HelpReal pool pros
Shop the complete cleaner

Exploded View

Tap a number to see the part, price and stock.

Hayward Hayward Navigator Pro Replacement Parts exploded parts diagram

Pick a part

Click any number on the diagram, or choose from the parts list below.

Know the part number? Use the search in the list.

Common Problems

Show the parts that usually fix it.

Replacement Parts (25)

Navigator Pro Shell Assembly

Part # AXV925ADSA

Call for availability

Inter Gear

Part # AXV301

$13.94$22.99In Stock

Spindle Gear Screw

Part # AXV068

Call for availability

Cone Spindle Gear

Part # AXV303

Call for availability

Medium Turbine

Part # AXV062C

$19.94$34.99In Stock

Screen Kit

Part # AXVU009-237

$12.94$16.95In Stock

Float Kit

Part # AXV054FH

$24.48$30.95Out of stock

Flap Adjuster

Part # AXV031B

Call for availability

Open Lower Body

Part # AXV230DWH

$39.94$49.99In Stock

Pod Kit

Part # AXV417WHP

$42.99$59.99In Stock

Wing Kit

Part # AXV604WHP

$15.94$19.99In Stock

Shoes

Part # AXV413P

+1 more option

$18.94$29.99In Stock

Captive Screw with Clip

Part # AXV314P

Call for availability

Hayward Navigator Pro suction-side pool cleaner parts, matched to the official Hayward parts diagram (3 views). Pick a view, then click any number to see the part, price and stock. Fits models W3925ADC, W3925ADV. Not sure what you need? Call us or bring the part into any of our stores and we'll match it.
