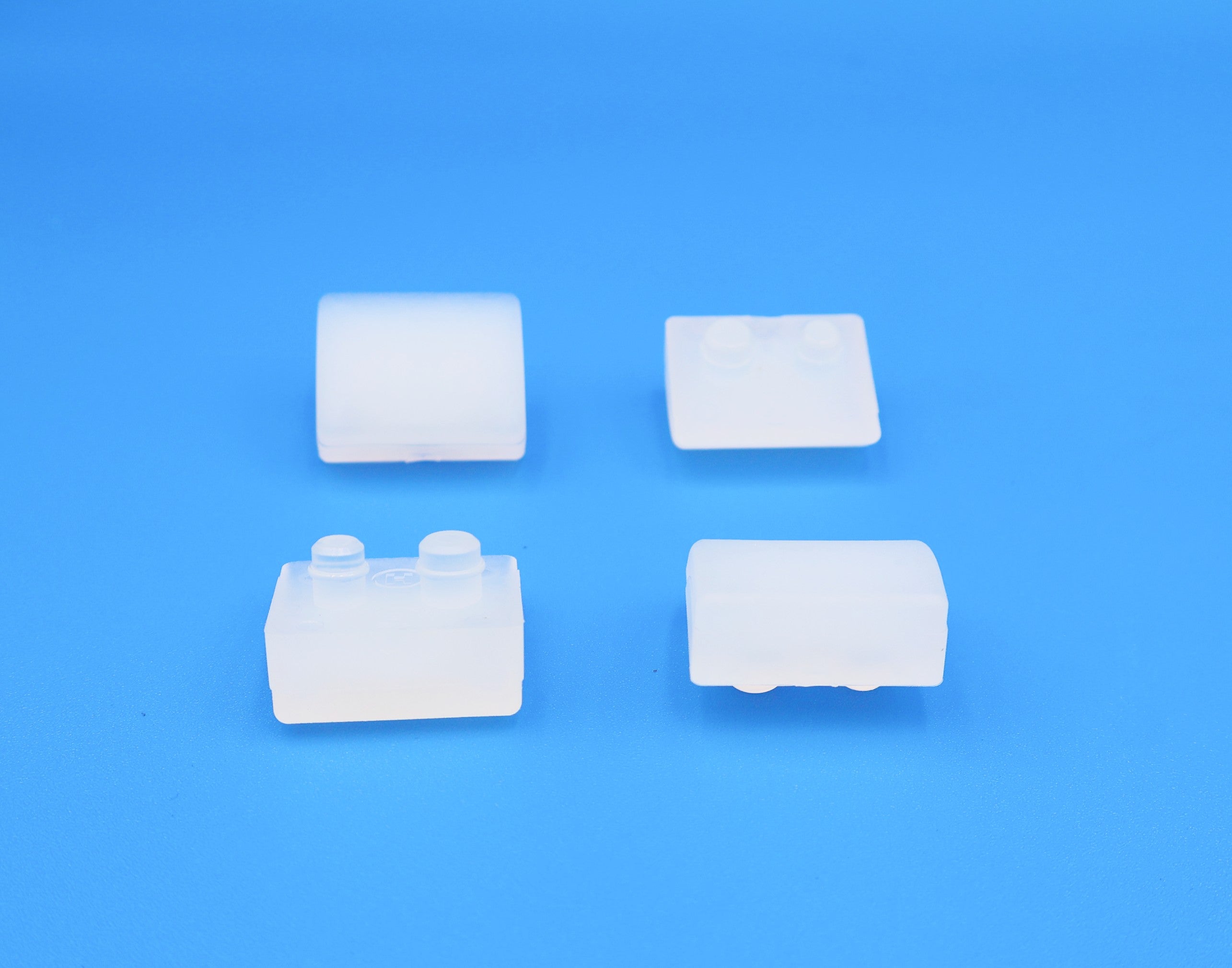

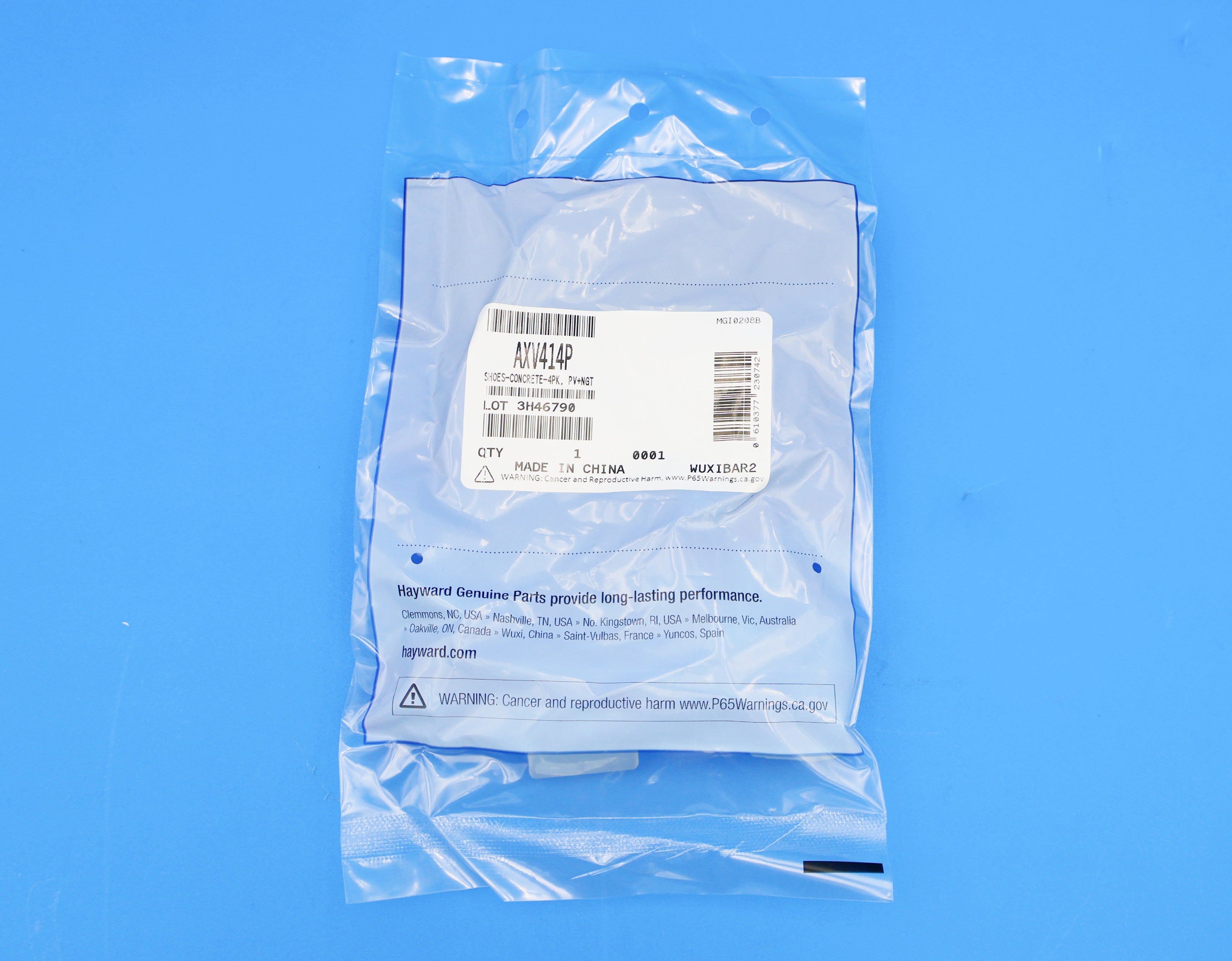

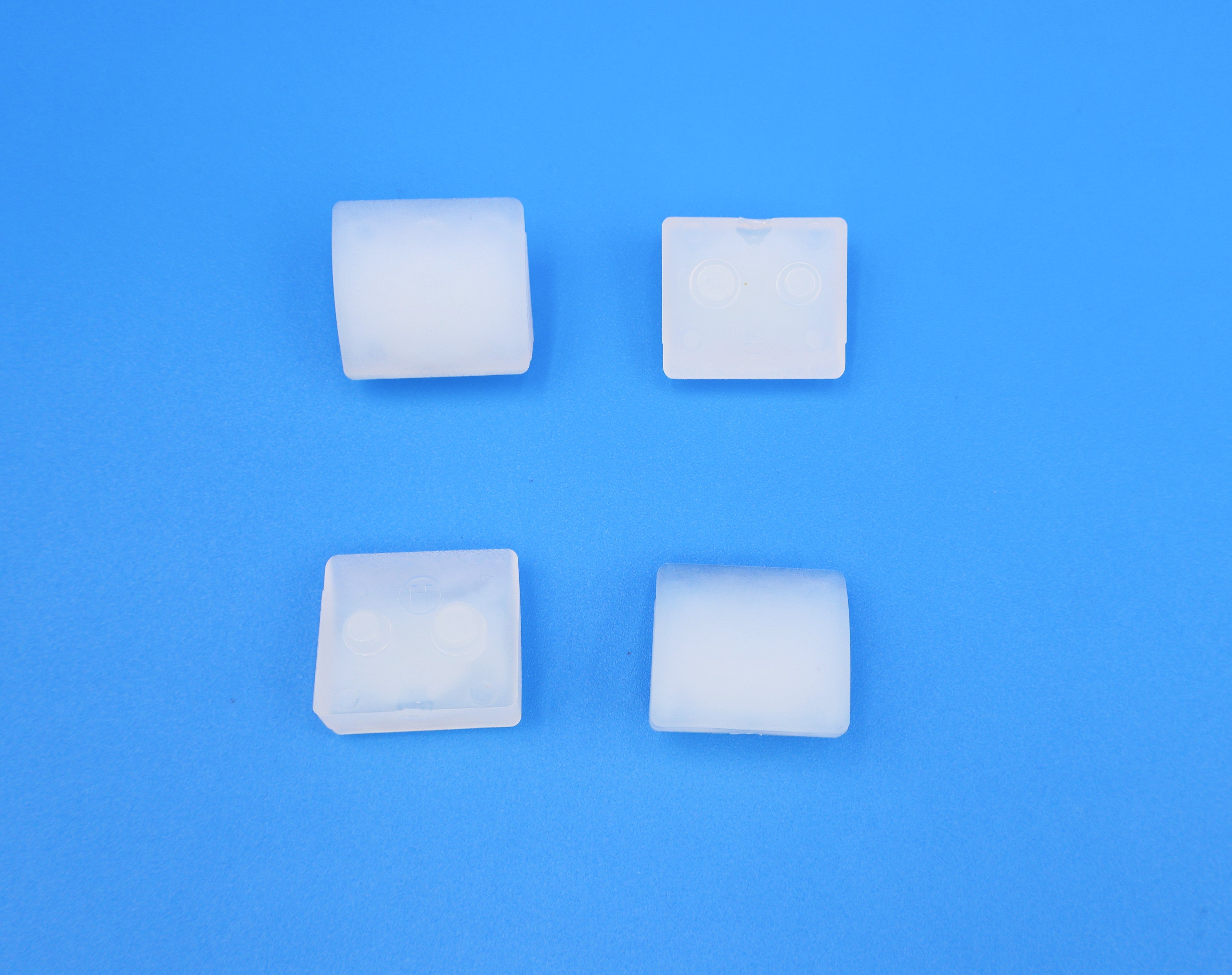

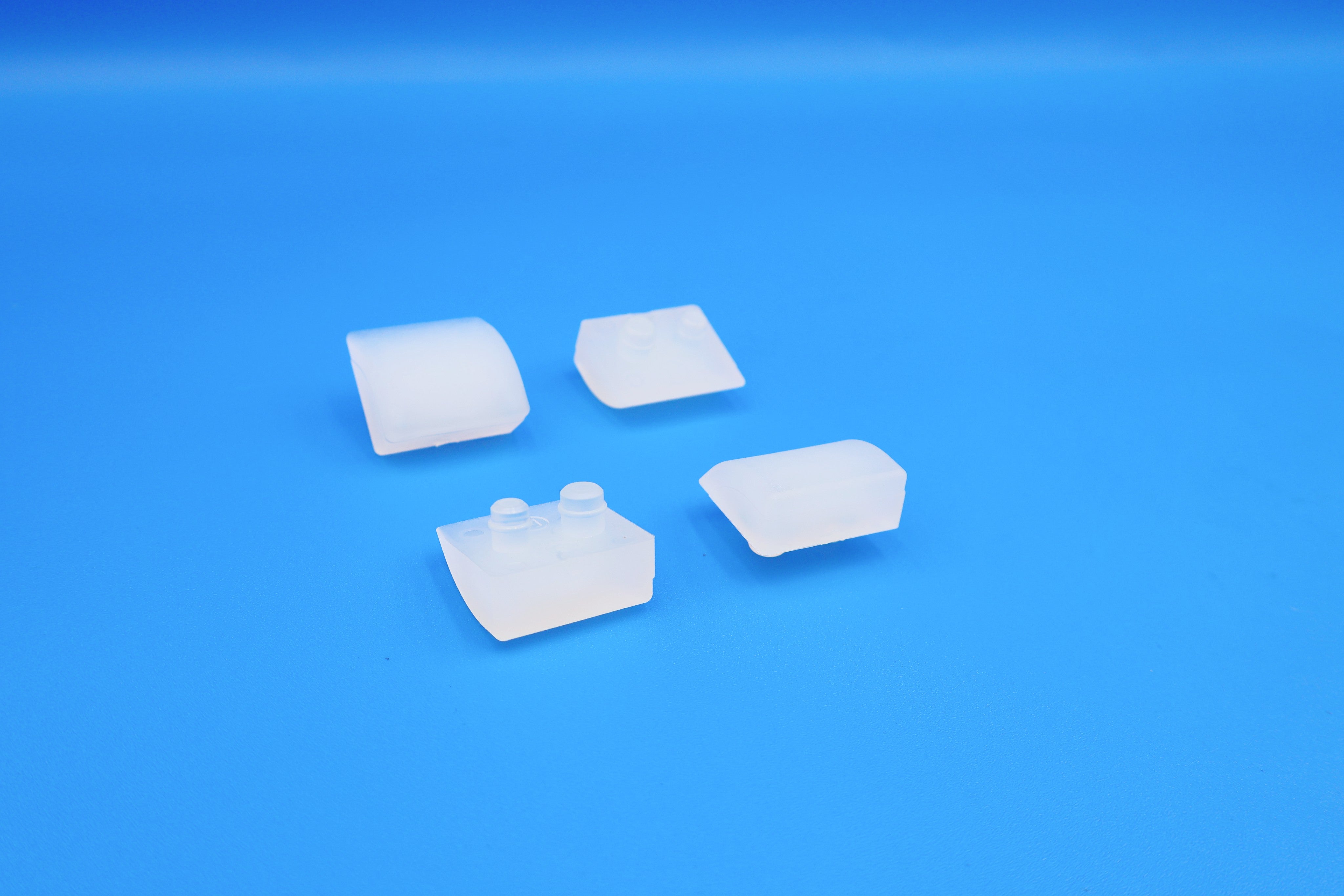

Hayward AXV414P Concrete Pod Shoes - 4 Pack for Navigator and Pool Vac Cleaners

These genuine Hayward concrete pod shoes are essential replacement parts for maintaining optimal cleaning performance on your automatic pool cleaner. Designed specifically for concrete and gunite pool surfaces, these durable shoes provide the traction and protection needed for efficient pool cleaning while preventing damage to both your cleaner and pool floor.

Key Features

• Genuine Hayward OEM Parts - Factory original components ensure proper fit and reliable performance
• Built-In Wear Indicators - Visual markers show when replacement is needed to prevent damage to pods
• Concrete/Gunite Specific Design - Optimized material composition for rough pool surfaces
• Set of 4 - Complete replacement set for all four pod positions
• Easy Installation - Simple snap-in design allows quick replacement with just a flathead screwdriver
• Durable Construction - High-quality polymer material resists wear and pool chemicals
• Two-Pin Mounting - Keyed design with different size holes prevents incorrect installation

Compatible Pool Cleaners

This pod shoe set is compatible with all Hayward Navigator and Pool Vac automatic pool cleaners, including:

• Hayward Navigator
• Hayward Navigator Pro (925ADC)
• Hayward Pool Vac
• Hayward Pool Vac Classic
• Hayward Pool Vac Ultra
• Hayward Pool Vac XL
• Hayward Pool Vac V-Flex
• Hayward Pool Vac Plus

Product Specifications

• Manufacturer: Hayward Pool Products
• Part Number: AXV414P
• Also Known As: AXV014P
• ProStar Equivalent: HWN115
• UPC: 610377230742
• Quantity: 4 shoes per pack
• Pool Surface: Concrete and gunite pools
• Material: Durable polymer plastic
• Color: White/clear

When to Replace Pod Shoes

Regular inspection and timely replacement of pod shoes is critical to prevent damage to more expensive components. Replace your pod shoes when:

• Shoes No Longer Extend Above Pod Surface - When pushed against the pod end, shoes should extend above the pod surface
• Wear Indicators Are Reached - Built-in wear marks indicate when replacement is needed
• Shoes Are Worn Below Pod Level - If shoes wear below the pod surface, the pod itself will start rubbing on the pool floor
• Material Becomes Hard or Brittle - Hardened shoes lose traction and cleaning efficiency
• Cleaner Loses Traction - Difficulty climbing walls or reduced movement indicates worn shoes
• Cleaner Moves Too Slowly - Excessive shoe wear can reduce cleaner speed and coverage

Why Timely Replacement Matters

• Prevents Pod Damage - Worn shoes expose pods to direct pool surface contact, causing expensive pod wear
• Maintains Cleaning Performance - Fresh shoes provide proper traction for efficient pool coverage
• Protects Other Components - Proper shoes reduce stress on A-frames, turbines, and bearings
• Extends Cleaner Lifespan - Regular shoe replacement is the most cost-effective maintenance task

Installation Instructions

1. Disconnect cleaner from hose (pull straight off to avoid breaking internal gears)
2. Turn cleaner upside down to access pod shoes
3. Insert flathead screwdriver between shoe and pod
4. Gently pry old shoe off the pod mounting pins
5. Dip new shoe in water for lubrication
6. Align the two mounting pins with the two holes in the pod (note: holes are different sizes for proper orientation)
7. Press firmly until shoe snaps into place
8. Repeat for remaining three shoes
9. Reconnect cleaner to hose and test operation

Maintenance Tips

• Inspect shoes monthly during pool season
• Replace all four shoes at the same time for balanced performance
• Never allow shoes to wear down to the pod surface
• Consider replacing shoes annually as preventive maintenance
• Check shoes more frequently if pool has very rough surfaces
• When replacing shoes, also inspect wings, flaps, and A-frames for wear

Important Notes

• Surface Type Matters: These shoes are specifically for concrete and gunite pools. Different shoes (vinyl/fiberglass version) are required for vinyl liner and fiberglass pools
• Replace Before Complete Wear: Do not wait until shoes are completely worn - this will damage pods which are much more expensive to replace
• Complete Set Required: Always replace all four shoes together to maintain balanced cleaner operation

Tune-Up Kit Option

If your cleaner requires multiple worn parts, consider the Hayward Navigator/Pool Vac Tune-Up Kit (AXW350 for concrete pools) which includes:

• 4 pod shoes (concrete version)
• 2 wings
• 2 flaps (front and rear)
• Screwdriver
• Cleaning brush
• Maintenance guide

Note: Verify your pool surface type before ordering. These AXV414P shoes are for concrete and gunite pools only. For vinyl liner or fiberglass pools, order the appropriate vinyl/fiberglass shoe model.

SKU: AXV414P
