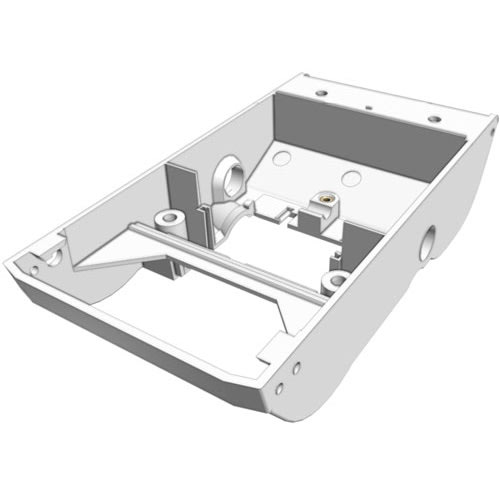

Hayward Open Lower Body, White | AXV230DWH - Cleaner Parts - img - 1
Hayward Open Lower Body, White | AXV230DWH
Hayward Open Lower Body, White | AXV230DWH
Hayward Open Lower Body, White | AXV230DWH
Hayward Open Lower Body, White | AXV230DWH
Hayward Open Lower Body, White | AXV230DWH
Hayward Open Lower Body, White | AXV230DWH
Hayward Open Lower Body, White | AXV230DWH - Cleaner Parts - img - 1
Hayward Open Lower Body, White | AXV230DWH
Hayward Open Lower Body, White | AXV230DWH
Hayward Open Lower Body, White | AXV230DWH
Hayward Open Lower Body, White | AXV230DWH
Hayward Open Lower Body, White | AXV230DWH
Hayward Open Lower Body, White | AXV230DWH
Hayward PoolVac XL Suction Pool Cleaner Not sure it fits? See this part on the interactive diagrams Hayward PoolVac XL Suction Pool CleanerHayward Navigator Pro Suction Pool Cleaner

Hayward Open Lower Body, White | AXV230DWH

Hayward Products SKU: AXV230DWH
  • In stock, ready to ship
  • Inventory on the way
$39.94
Instant Savings: $10.05
/
Questions about returns? View our return policy.
Free US Shipping - Shipping Policy

Hayward AXV230DWH Open Lower Body – White

Part Number: AXV230DWH

Description

Replacement open lower body housing designed for select Hayward automatic suction-side pool cleaners. Provides the structural foundation for internal components and offers a durable mounting surface in a white finish.

Compatibility & Fitment

  • Fits Hayward PoolVac Classic and PoolVac XL suction-side cleaners, as well as Navigator models that specify this lower body.
  • Used when the cleaner’s lower body is cracked, discolored, or no longer provides secure mounting for internal parts.
  • Ideal when performing major service on the cleaner, replacing cracked housings or transitioning to updated parts.

Features & Specifications

  • Color: White finish for seamless visual integration.
  • Manufactured to Hayward OEM specifications for fit and performance.
  • Designed to retain internal cleaner components such as turbine, pod kits and A-frame assembly.
  • Screw-mount installation for easy servicing and replacement.

Installation Notes

Disconnect the cleaner from the pool and remove from circulation. Remove old lower body housing, transfer internal parts to the new body, ensure all hardware is aligned and tightened. Reinstall the cleaner, re-connect hose and return the system to normal operation.

Maintenance Tip

Inspect the lower body housing periodically during major service visits. Look for cracks, composite material degradation or fastener loosening. A damaged body can lead to misalignment of internal components, reduced cleaning efficiency or premature wear.
