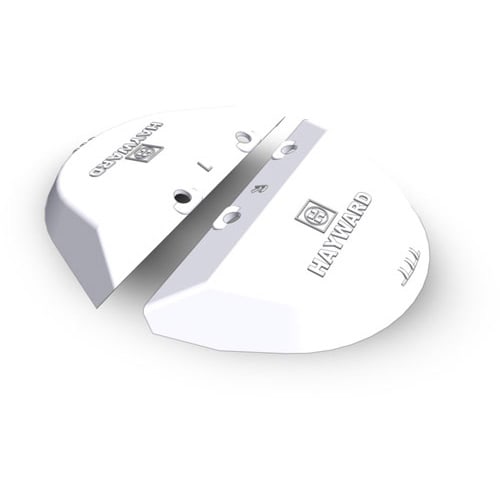

Hayward Navigator Pool VAC Wing Kit | AXV604WHP - Cleaner Parts - img - 1
Hayward Navigator Pool VAC Wing Kit | AXV604WHP
Hayward Navigator Pool VAC Wing Kit | AXV604WHP
Hayward Navigator Pool VAC Wing Kit | AXV604WHP
Hayward Navigator Pool VAC Wing Kit | AXV604WHP
Hayward Navigator Pool VAC Wing Kit | AXV604WHP
Hayward Navigator Pool VAC Wing Kit | AXV604WHP - Cleaner Parts - img - 1
Hayward Navigator Pool VAC Wing Kit | AXV604WHP
Hayward Navigator Pool VAC Wing Kit | AXV604WHP
Hayward Navigator Pool VAC Wing Kit | AXV604WHP
Hayward Navigator Pool VAC Wing Kit | AXV604WHP
Hayward Navigator Pool VAC Wing Kit | AXV604WHP
Hayward PoolVac XL Suction Pool Cleaner Not sure it fits? See this part on the interactive diagrams Hayward PoolVac XL Suction Pool CleanerHayward Navigator Pro Suction Pool Cleaner

Hayward Navigator Pool VAC Wing Kit | AXV604WHP

Hayward Products SKU: AXV604WHP
  • In stock, ready to ship
  • Inventory on the way
$15.94
Instant Savings: $4.05
/
Questions about returns? View our return policy.
Free US Shipping - Shipping Policy

Hayward AXV604WHP Wing Kit – White (Left & Right Wings)

Part Number: AXV604WHP

Description

A genuine OEM replacement wing kit for Hayward automatic suction-side pool cleaners. Includes two white replacement wings (left and right) that restore optimal movement, tracking and debris pickup of your cleaner.

Compatibility & Fitment

  • Fits Hayward Pool Vac Classic, Pool Vac Ultra, Pool Vac XL, Navigator and Navigator Pro suction-side cleaners.
  • Use when the current wings are worn, cracked, missing or the cleaner is not gliding over surfaces properly.
  • Drop-in replacement for systems specifying part number AXV604WHP.

Features & Specifications

  • Kit includes two white wings — one for each side.
  • Durable material designed for pool water chemical exposure and UV light resistance.
  • Snap-on installation: no tools required, quick maintenance upgrade.
  • Weight: approximately 5 lb boxed shipping weight.

Installation Notes

Disconnect cleaner from power (or pump) and remove it from the pool. Turn the cleaner over to access wing mounting hooks. Remove the old wings by unhooking, attach the new left and right wings from the kit, ensure secure fit, return cleaner to pool and resume operation. Monitor for proper movement and wall climb performance.

Maintenance Tip

Inspect the wings at each service interval for signs of wear, cracks or flattened surfaces. Replacing worn wings improves cleaner efficiency, extends cleaner life and ensures better pool surface coverage.
