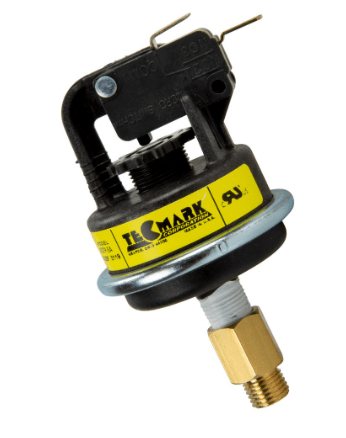

Jandy Water Pressure Switch R0013200
Jandy
SKU: R0013200
Not sure it fits?
See this part on the interactive diagram
Jandy Hi-E2 Heater
Not sure it fits?
See this part on the interactive diagram
Jandy Hi-E2 Heater
Jandy 2 PSI Water Pressure Switch for Pool & Spa Heaters | R0013200
The Jandy R0013200 Water Pressure Switch is a genuine OEM replacement safety component designed for compatible Jandy, Zodiac, and Laars gas swimming pool and spa heaters. Rated at 2 PSI, this switch monitors water pressure in the heater's circulation system and helps prevent heater operation when adequate water pressure is not established.
Manufactured to the original equipment specifications, the Jandy R0013200 is an important part of the heater's water-pressure safety circuit. Replacing a failed switch can help restore normal heating operation when a qualified technician has verified that the pressure switch is defective.
Product Features
- Genuine Jandy OEM: Original manufacturer replacement water pressure switch.
- 2 PSI Rating: Designed for heater applications requiring a 2 PSI water pressure switch.
- Heater Safety Component: Helps prevent burner operation when the required water pressure is not present.
- Broad Heater Compatibility: Used in select Jandy JXi, Legacy, LXi, Lite2, LX/LT, Hi-E2 and Hot Shot heaters.
- Service Replacement: Designed to replace a damaged or malfunctioning original pressure switch.
- OEM Fitment: Manufactured for compatible Jandy and Laars heater configurations.
Product Specifications
- Manufacturer: Jandy / Fluidra
- Manufacturer Part Number: R0013200
- Distributor Part Number: LAR-151-2613
- Product Type: Heater Water Pressure Switch
- Pressure Rating: 2 PSI
- Color: Black
- Application: Gas Pool and Spa Heater Water-Pressure Safety Circuit
- UPC: 052337011709
- Package Quantity: 1 Water Pressure Switch
Compatible Jandy and Laars Pool Heaters
- Jandy JXi 200, 260 and 400 Models
- Jandy Legacy LRZE Electronic Heaters
- Jandy Legacy LRZM Millivolt Heaters
- Jandy LXi Low NOx Heaters
- Jandy Lite2 LD, LG and LJ Heaters
- Jandy LX and LT Heaters
- Jandy LX/LT Low NOx Heaters
- Jandy / Laars Hi-E2 Heaters
- Jandy / Laars Hot Shot Model 100
- Other Compatible Heaters Requiring Jandy R0013200
Compatibility Notice: Some heater models have alternative 1 PSI or adjustable pressure switch configurations. Verify the heater model, serial number, original pressure switch part number, and specified pressure rating before ordering.
What Does a Heater Water Pressure Switch Do?
The water pressure switch is part of the pool heater's safety control system. Its purpose is to confirm the presence of sufficient water pressure before allowing the heater's burner circuit to operate.
If water pressure is insufficient, the switch prevents or interrupts heater operation to help protect the equipment. However, water pressure does not directly measure actual water flow, so proper pump operation and circulation must also be verified.
Signs of a Possible Pressure Switch Problem
- Heater displays a water-pressure or flow-related fault.
- Heater fails to initiate the heating sequence.
- Heater safety circuit remains open despite verified adequate circulation.
- Pressure switch shows physical damage or corrosion.
- Qualified diagnostic testing confirms incorrect switch operation.
Troubleshooting: A pressure-switch fault does not always mean the switch is defective. Restricted filters, closed valves, inadequate pump flow, blocked plumbing, or damaged wiring may produce similar symptoms. Always identify and correct the underlying problem before replacing components.
Replacement and Installation
- Turn off the heater and disconnect electrical power.
- Shut down the circulation pump and prevent automatic restart.
- Allow the heater to cool and relieve water pressure according to the manufacturer's service instructions.
- Verify that the replacement R0013200 matches the existing heater's required pressure switch specification.
- Have a qualified technician remove the existing switch according to the heater service manual.
- Install the replacement switch using the manufacturer-approved connection and sealing procedure.
- Restore circulation and inspect the connection for leaks.
- Test the complete heater safety circuit and verify correct operation.
Safety: Never bypass, jumper, or disable a heater water pressure switch to force the heater to operate. The switch is an important protective device.
Related Jandy Heater Replacement Parts
Find other replacement components for compatible Jandy heaters at Aqua Pool Supply.
- Jandy R0015500 – Adjustable 1–10 PSI Water Pressure Switch – Alternative pressure switch used in specified heater configurations. Not a direct substitute for the R0013200 unless approved for the application.
- Jandy R0483600 – Water Pressure Switch Tubing – Replacement tubing for compatible Jandy heater pressure switch assemblies.
- Jandy R0456500 – Heater Temperature Sensor Kit – Replacement temperature sensing component for compatible Jandy gas heaters.
Additional Jandy Pool Heater Parts
Browse Jandy pool and spa heater replacement parts for pressure switches, sensors, controls, igniters, and other service components.
Package Contents
Includes: One (1) genuine Jandy R0013200 2 PSI Water Pressure Switch.
Important: This product is the pressure switch replacement component, not a complete heater pressure switch and tubing assembly. Other installation components are not included unless specified by the manufacturer.
Compatibility: Designed for select Jandy, Zodiac, and Laars pool heaters requiring a 2 PSI pressure switch. Confirm the original part number and pressure rating before ordering.
Installation Safety: Gas-fired pool heaters contain electrical, gas, and water-pressure hazards. Replacement and testing should be performed by a qualified pool heater service professional following Jandy/Fluidra service instructions.
