Jandy Hi-E2 Heater Replacement Parts

Jandy

Jandy Hi-E2 Heater Replacement Parts

Fits models:EHE350NCEHE350PCEHE350NSEHE350PSEHE220NEHE220P

  • Genuine JandyOEM factory parts
  • Fast ShippingFrom AZ & NV
  • 5 Local StoresPhoenix · Las Vegas
  • Expert HelpReal pool pros
Owner's Manual (PDF)

Exploded View

Tap a number to see the part, price and stock.

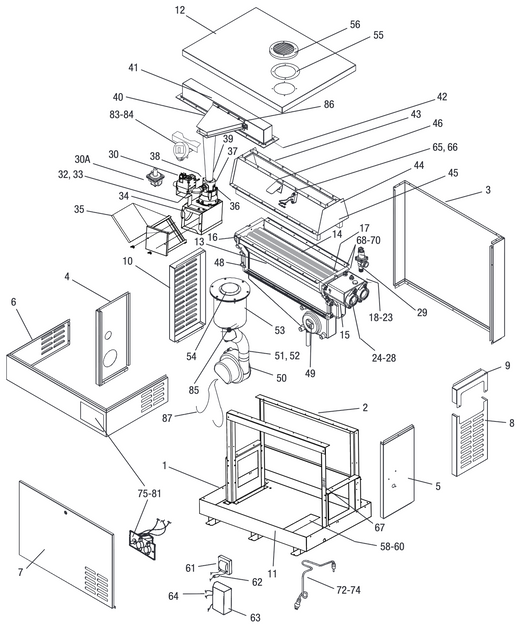

Jandy Jandy Hi-E2 Heater Replacement Parts exploded parts diagram

Pick a part

Click any number on the diagram, or choose from the parts list below.

Know the part number? Use the search in the list.

Common Problems

Show the parts that usually fix it.

Replacement Parts (1)

Base Panel

Part # R0347105

Call for availability

Frame Support Assembly

Part # R0301505

Call for availability

Back Panel

Part # R0347205

Call for availability

Left Side Panel

Part # R0347300

Call for availability

Right Side Panel

Part # R0347400

Call for availability

Temperature Control Panel Assembly

Part # R0347505

Call for availability

Door

Part # R0347605

Call for availability

Inlet/Outlet Header Panel

Part # R0347700

Call for availability

Right Top Side Panel

Part # R0347800

Call for availability

Return Header Panel

Part # R0347900

Call for availability

Front Kick Panel

Part # R0348005

Call for availability

Top Panel (Pewter)

Part # R0348105

Call for availability

Heat Exchanger Assembly, Complete

Part # R0303805 / R0523705

Call for availability

Inlet/Outlet Header

Part # R0303900

Call for availability

Return Header

Part # R0304000

Call for availability

Header Gasket

Part # R0304300

Call for availability

Bypass Valve Assembly

Part # R0304400

Call for availability

Bypass Valve Gasket

Part # R0011400

Call for availability

Bypass Valve Spring

Part # R0304500

Call for availability

Bypass Valve Rod

Part # R0304900

Call for availability

Bypass Valve Disk

Part # R0011500

Call for availability

Flange & Gasket Assembly, 2" (2/PK)

Part # R0055000

Call for availability

Flange, 2"

Part # 10573500

Call for availability

Flange Gasket, 2"

Part # S0078000

Call for availability

Flange Sleeve, 2"

Part # S0078200

Call for availability

Flange Gasket, 1-1/2" - 2"

Part # S0078100

Call for availability

Pressure Relief Valve, 75 PSI

Part # R0040400

Call for availability

Gas Valve

Part # R0200100

Call for availability

Step Down Regulator

Part # R0337300

Call for availability

Anti-Rotation Bracket

Part # R0348500

Call for availability

Orifice Holder

Part # R0320000

Call for availability

Gas Orifice

Part # R0309305 / R0309405

Call for availability

Combustion Air Filter Assembly

Part # R0348200

Call for availability

Combustion Air Filter

Part # R0308000

Call for availability

Venturi Inlet

Part # R0320305

Call for availability

Venturi O-Ring

Part # R0320400

Call for availability

Venturi Plenum

Part # R0320500

Call for availability

Venturi/Tailpipe Gasket

Part # R0320600

Call for availability

Mixing Chamber/Tailpipe Assembly

Part # R0348300

Call for availability

Mixing Chamber/Burner Gasket

Part # R0320800

Call for availability

Burner Assembly

Part # R0305905

Call for availability

Burner/Combustion Chamber Gasket

Part # R0305805

Call for availability

Combustion Chamber Assembly

Part # R0305105

Call for availability

Refractory Tile Set

Part # R0305305

Call for availability

Sight Glass Assembly

Part # R0305400

Call for availability

Combustion Chamber Strip Set

Part # R0213105

Call for availability

Combustion Chamber/Collector Gasket

Part # R0305705

Call for availability

Blower/Collector Gasket

Part # R0308700

Call for availability

Combustion Blower

Part # R0308200

Call for availability

Blower/Vent Duct Sleeve

Part # R0308600

Call for availability

Blower/Vent Duct Clamp

Part # R0308800

Call for availability

Vent Duct Assembly

Part # R0303100

Call for availability

Vent Duct/Heater Top Gasket

Part # R0309100

Call for availability

Heater Top/Outdoor Exhaust Grill Gasket

Part # R0309500

Call for availability

Outdoor Exhaust Grill

Part # R0348400

Call for availability

Indoor Vent Collar

Part # R0307900

Call for availability

Condensate Trap Assembly and Drain Tube

Part # R0303300

Call for availability

Limestone Gravel (Condensate Neutralizer)

Part # R0306200

Call for availability

Condensate Trap Cover

Part # R0213300

Call for availability

Transformer

Part # R0061100

Call for availability

In-Line Fuse Holder Assembly

Part # R0325600

Call for availability

Ignition Control

Part # R0202900

Call for availability

Wire Harness, Ignition Control

Part # R0302700

Call for availability

Igniter Assembly and Gasket (Replaces R0016400 and R0205300)

Part # R0457503

Call for availability

Terminal Block

Part # R0301900

Call for availability

High-Limit Switch/Harness Set

Part # R0322700

Call for availability

High-Limit Switch, 135°F

Part # R0302400

Call for availability

High-Limit Switch, 150°F

Part # R0302300

Call for availability

High-Limit Switch Wire Harness

Part # R0322600

Call for availability

Pressure Switch and Siphon Loop Assembly

Part # R0322900

Call for availability

Pressure Switch Siphon Loop

Part # R0307800

Call for availability

Temperature Control Assembly, Electronic

Part # R0011700

Call for availability

Temperature Sensor

Part # R0011800

Call for availability

Temperature Sensor Gasket

Part # E0116400

Call for availability

Temperature Sensor Plastic Sleeve

Part # 10444900

Call for availability

Temperature Control Knob

Part # R0010700

Call for availability

Pool/Spa Selector Knob

Part # R0099900

Call for availability

Temp-Lok Disc

Part # 10583100

Call for availability

Differential Pressure Switch

Part # R0302000

Call for availability

Differential Pressure Switch Bracket

Part # R0302200

Call for availability

Exhaust Vent Limit Switch

Part # R0309000 / R0461600

Call for availability

Burner High-Limit Switch

Part # R0319700

Call for availability

Combustion Blower Wire Harness

Part # R0308100

Call for availability

Jacket Hardware Kit

Part # R0302100

Call for availability

Internal Hardware Kit

Part # R0302500

Call for availability

Heat Exchanger Hardware Kit

Part # R0319105

Call for availability

Inlet/Outlet Header Hardware Kit

Part # R0319300

Call for availability

Return Header Hardware Kit

Part # R0319200

Call for availability

Venturi Hardware Kit

Part # R0322200

Call for availability

Mixing Chamber Hardware Kit

Part # R0322100

Call for availability

Burner Hardware Kit

Part # R0319405

Call for availability

High-Temperature Silicone Sealant

Part # R0322800

Call for availability

4" Venting Connector

Part # R0444900

Call for availability

Gas Conversion Kit, Propane to Natural

Part # R1077000

Call for availability

Gas Conversion Kit, Natural to Propane

Part # R1077001

Call for availability

3-Wire Harness, Remote Control

Part # E0120000

Call for availability

Interactive exploded-view parts diagram for the Jandy Pro Series Hi-E2 condensing gas pool and spa heater (EHE350 and older EHE220). Click any numbered part to see the part number and description. Many Hi-E2 parts are special order, so call us and we will check availability for you.
