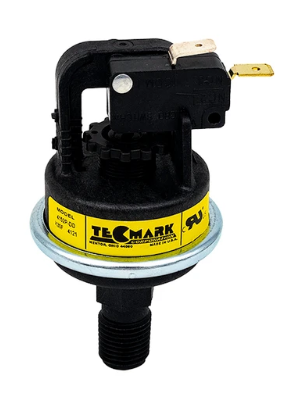

Pentair Water Pressure Switch for 200-400 MiniMax NT STD 473605Z
Pentair
SKU: 473605z
Pentair Water Pressure Switch for UltraTemp, ThermalFlo & MiniMax NT | 473605Z
The Pentair 473605Z Water Pressure Switch is a genuine OEM replacement safety component designed for select Pentair UltraTemp and ThermalFlo swimming pool heat pumps and MiniMax NT pool and spa heaters. This pressure-activated switch monitors water pressure within the heating system to help ensure that adequate water circulation is present before the equipment operates.
Manufactured to Pentair's original equipment specifications, the 473605Z helps protect compatible heating equipment from operating under insufficient water flow conditions. It is a replacement for damaged, malfunctioning, or failed water pressure switches in compatible Pentair heater and heat pump assemblies.
Product Features
- Genuine Pentair OEM: Original manufacturer replacement water pressure switch.
- Water Pressure Monitoring: Helps verify sufficient water pressure for heater operation.
- Heater Safety Component: Helps prevent heating operation when inadequate water circulation is detected.
- Multiple Heater Applications: Used in select Pentair UltraTemp, ThermalFlo, and MiniMax NT systems.
- Direct Replacement: Replaces compatible original water pressure switches using Pentair part number 473605 or 473605Z.
- Pressure-Activated Operation: Responds to water system pressure as part of the heater's safety control circuit.
- OEM Fitment: Designed for compatible Pentair heater and heat pump assemblies.
Product Specifications
- Manufacturer: Pentair
- Manufacturer Part Number: 473605Z
- Alternate Part Number: 473605
- Distributor Part Number: PUR-151-3370
- Product Type: Water Pressure Switch
- Application: Pool & Spa Heaters and Heat Pumps
- Operation: Water Pressure Activated
- Compatible Equipment: Select Pentair UltraTemp, ThermalFlo, and MiniMax NT Models
- Approximate Product Weight: 0.1 lb
- UPC: 788379727260
- Quantity: 1 Water Pressure Switch
Compatible Pentair Pool Heaters and Heat Pumps
- Pentair UltraTemp Heat Pumps – Select Models
- Pentair ThermalFlo Titanium Heat Pumps
- Pentair MiniMax NT STD 200
- Pentair MiniMax NT STD 250
- Pentair MiniMax NT STD 300
- Pentair MiniMax NT STD 400
Compatibility: The 473605Z is not a universal water pressure switch for all Pentair heaters. Confirm the heater model, original switch part number, and equipment parts diagram before purchasing.
How the Pentair Water Pressure Switch Works
The water pressure switch is part of the heater's safety control system. It responds to pressure within the water circulation circuit, helping the heater determine whether the required water flow conditions are present.
When sufficient water pressure is detected, the switch allows the heater control system to recognize the pressure condition. If water pressure falls below the required level, the switch changes state, allowing the control system to interrupt heating operation.
The pressure switch does not directly measure water flow. Proper adjustment, plumbing configuration, and circulation are necessary for safe operation.
Common Signs of a Faulty Water Pressure Switch
- Heater fails to start despite adequate water circulation.
- Water pressure or flow-related fault messages.
- Heater operation becomes intermittent.
- Corroded or damaged switch terminals.
- Water leakage around the pressure switch connection.
- Pressure switch failing electrical continuity testing under the specified conditions.
These symptoms can also be caused by a dirty pool filter, restricted plumbing, insufficient pump speed, low water level, or other circulation problems. Proper diagnosis is recommended before replacing the switch.
Installation and Replacement
- Turn off the pool heater, pump, and associated electrical circuits.
- Verify that electrical power is disconnected.
- Allow the heating equipment to cool and completely relieve water pressure.
- Locate the existing water pressure switch using the equipment manufacturer's parts diagram.
- Disconnect the original switch wiring after documenting the existing connections.
- Remove the defective switch according to Pentair's service instructions.
- Install the genuine Pentair 473605Z replacement using the manufacturer's specified sealing and tightening procedures.
- Reconnect the electrical terminals according to the heater wiring diagram.
- Restore water circulation and inspect for leaks.
- Verify the switch operates correctly under the manufacturer's required flow and pressure conditions before returning the heater to service.
Safety: Never bypass or permanently jumper a heater water pressure switch. This component is an important safety device. Testing, adjustment, and replacement should be performed by a qualified pool heater service technician.
Related Pentair Heat Pump Replacement Parts
Aqua Pool Supply carries additional genuine Pentair replacement parts for compatible UltraTemp and ThermalFlo heating systems.
- Pentair 471566Z – Water Temperature Thermistor Probe – Genuine replacement water temperature sensor used in select Pentair MiniMax, UltraTemp, and ThermalFlo heating systems.
- Pentair 473381 – ThermalFlo / UltraTemp 2" PVC Union with O-Ring – Replacement plumbing union for compatible Pentair heating equipment.
Pentair Heat Pump Parts Diagrams
Use Aqua Pool Supply's illustrated parts diagrams to identify additional compatible components for your heating system.
- Pentair UltraTemp Heat Pump Replacement Parts
- Pentair ThermalFlo Titanium Heat Pump Replacement Parts
Package Includes: One (1) genuine Pentair 473605Z Water Pressure Switch.
Important: This listing includes the water pressure switch only. The protective switch boot, wiring harnesses, plumbing fittings, and other heater replacement components are sold separately unless otherwise specified.
Compatibility Note: Verify your Pentair heater or heat pump model and original pressure switch part number before ordering. Do not substitute this component for a refrigerant high-pressure switch, refrigerant low-pressure switch, or an incompatible water pressure switch.
