Pentair UltraTemp Heat Pump Replacement Parts

Pentair

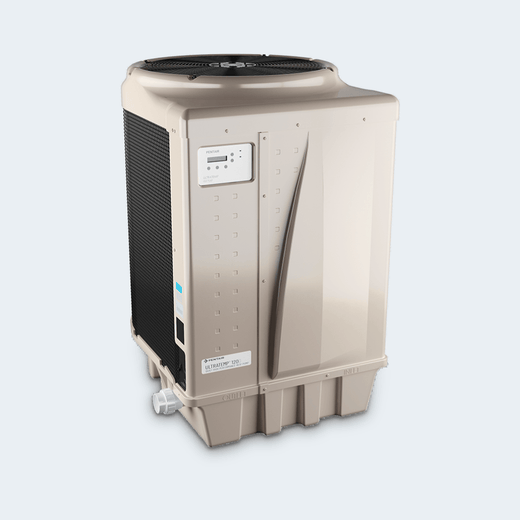

Pentair UltraTemp Heat Pump Replacement Parts

Fits models:UltraTemp 70UltraTemp 90UltraTemp 110UltraTemp 120UltraTemp 140

  • Genuine PentairOEM factory parts
  • Fast ShippingFrom AZ & NV
  • 5 Local StoresPhoenix · Las Vegas
  • Expert HelpReal pool pros
Shop the complete heat pump

Exploded View

Tap a number to see the part, price and stock.

Pentair Pentair UltraTemp Heat Pump Replacement Parts exploded parts diagram

Pick a part

Click any number on the diagram, or choose from the parts list below.

Know the part number? Use the search in the list.

Common Problems

Show the parts that usually fix it.

Replacement Parts (3)

PROBE THERMISTOR DEFROST SENSOR

Part # 473665Z

Call for availability

NUT, J-CLIP

Part # 470284

Call for availability

NUT, 1/4-20 SS ACORN

Part # 473285Z

Call for availability

NUT, U-CLIP

Part # 470281Z

Call for availability

CLIP, COMPRESSOR HARNESS RETENTION

Part # 473732Z / 476233Z / 474010

Call for availability

COMPRESSOR, SCROLL

Part # 473734Z / 473735Z / 474011Z / 474241Z / 474291Z / 476230Z / 476229Z / 476228Z / 476227Z

Call for availability

FENDER WASHER

Part # 473295Z

Call for availability

COMPRESSOR ISOLATION KIT, GROMMET AND SPACER 1 SET

Part # 476232Z

Call for availability

BOLT 5/16-18 x 2 in. SS

Part # 473745Z

Call for availability

BOLT 5/16-18 x 1 in. SS

Part # 98219800

Call for availability

DRIER (ALL MODELS EXCEPT 120HC, 140HC)

Part # 473121Z / 473139Z

Call for availability

FAN GUARD FASTENER KIT

Part # 470441

Call for availability

NUT, 1/4-20 HEX SS

Part # 071406Z

Call for availability

PUMP CONTACTOR AUTOHEAT REPLACEMENT KIT

Part # 473603Z

Call for availability

FAN RELAY

Part # 473150Z

Call for availability

TRANSFORMER

Part # 473155Z

Call for availability

WIRE HARNESS TERMINAL BLOCK- FAN, COMPRESSOR

Part # 473422Z

Call for availability

WIRE HARNESS, TERMINAL BLOCK- SENSORS

Part # 473315Z

Call for availability

CAPACITOR

Part # 473731Z / 473154Z / 470146Z

Call for availability

CONTACTOR, HEAT PUMP

Part # 473149 / 473778Z

Call for availability

WIRE HARNESS, MAIN

Part # 473423 / 475112Z / 474021Z

Call for availability

PANEL, FRONT

Part # 473742Z / 474194Z / 473412Z / 474265Z

Call for availability

SCREW #10 x .75 in. PAN HEAD PHILLIPS

Part # 470159Z / 474198Z

Call for availability

SCREW #10 x 1 in. BUTTON HEAD TORX

Part # 470161 / 474197

Call for availability

PANEL, FRONT LEFT, W/

Part # 473755 / 474196 / 474203 / 474267

Call for availability

HP TOP

Part # 473773Z / 474193Z / 475273Z / 475274Z

Call for availability

GUARD, FAN

Part # 473786Z

Call for availability

NUT, #10-32 SS ACORN

Part # 470439Z

Call for availability

FAN MOTOR

Part # 473785 / 474030Z / 474323Z

Call for availability

FAN BLADE

Part # 473783Z / 474230Z / 474322Z / 475271Z

Call for availability

TIE DOWN BRACKET

Part # 470137Z

Call for availability

WATER PRESSURE SWITCH BOOT

Part # 473606Z

Call for availability

WATER PRESSURE SWITCH

Part # 473605Z

Call for availability

TITANIUM HEAT EXCHANGER (FOR

Part # 473992 / 472736 / 475193Z / 475219Z

Call for availability

WATER BYPASS MANIFOLD W/ 2 STREET ELBOWS (PRIOR TO JAN. 2017)

Part # 473774Z / 475176Z

Call for availability

UNION PVC 2 in.

Part # 473381

$26.99$32.99In Stock

SWITCH, LOW PRESSURE

Part # 473656Z / 476093Z

Call for availability

SWITCH, HIGH PRESSURE

Part # 473744Z

Call for availability

THERMOSTATIC EXPANSION VALVE

Part # 473787Z / 473999Z / 474242Z / 474327Z / 476094Z

Call for availability

TITANIUM WATER COIL TIE DOWN

Part # 475194Z / 475195Z

Call for availability

PHASE MONITOR

Part # 474089Z

Call for availability

COMPRESSOR BLANKET

Part # 475230Z

Call for availability

REVERSING VALVE HEAT COOL ONLY

Part # 473135Z

Call for availability

REVERSING SOLENOID HEAT COOL ONLY

Part # 473432Z

Call for availability

TITANIUM COIL WATER SIDE REPAIR KIT (FOR HEAT EXCHANGER BUILT PRIOR TO JAN. 2017)

Part # 474270Z

Call for availability

COMPRESSOR HARNESS CLIP

Part # 474237Z

Call for availability

WATER UNION & TIE DOWN KIT

Part # 461030Z

Call for availability

3 IN. RECEIVER

Part # 474321Z

Call for availability

COIL GUARD

Part # 473054Z

Call for availability

MALE HOSE BARB 5/8' X 1/2 " NPT

Part # 475232Z

Call for availability

COREMAX VALVE CORE

Part # 472409Z

Call for availability

O-RING FOR UNION

Part # 071426Z

Call for availability

HARD START CAPACITOR KIT

Part # 476422Z

Call for availability

Bracket, Top (For

Part # 476352Z

Call for availability

Thermal Protection Switch (For ARA083KA, ARA072KA, ARA061KA, and ABG049KAC compressors)

Part # 476254

Call for availability

Interactive exploded-view parts diagram for the Pentair UltraTemp Heat Pump. Click any numbered part to see the part number, price and stock, or call us and we will find it for you.
