Pentair 3 HP Pump Diffuser Assembly for WhisperFlo & IntelliFlo | 072928Z

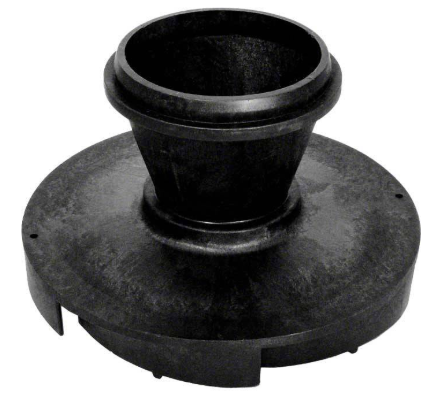

The Pentair 072928Z Diffuser Assembly is a genuine OEM replacement component designed for compatible Pentair WhisperFlo and IntelliFlo swimming pool pumps. This black diffuser is used in specified 3 HP pump configurations and helps maintain proper water flow and hydraulic performance inside the pump housing.

Located around the pump impeller, the diffuser directs water from the impeller into the pump volute, helping convert water velocity into pressure. Replacing a cracked, worn, or damaged diffuser can help restore proper pump operation when the diffuser is the source of the problem.

Product Features

• Genuine Pentair OEM: Original manufacturer replacement pump diffuser.
• 3 HP Application: Designed for specified Pentair 3 HP pump configurations.
• WhisperFlo & IntelliFlo Compatibility: Fits select models requiring part number 072928Z.
• Hydraulic Performance: Directs water flow from the impeller toward the pump volute.
• Durable Construction: Molded black thermoplastic material designed for swimming pool pump operation.
• Direct Replacement: Replaces Pentair diffuser part number 072928.
• OEM Fitment: Manufactured to match the specified original pump assembly.

Product Specifications

• Manufacturer: Pentair
• Manufacturer Part Number: 072928Z
• Alternate Part Number: 072928
• Product Type: Pool Pump Diffuser Assembly
• Color: Black
• Material: Molded Thermoplastic
• Horsepower Application: 3 HP, where specified
• Compatible Pump Series: Pentair WhisperFlo and IntelliFlo
• UPC: 788379699666
• Quantity: 1 Diffuser Assembly

Compatible Pentair Pool Pumps

• Pentair WhisperFlo WFE-12 – 3 HP
• Pentair WhisperFlo WFK-12 – 3 HP
• Compatible Pentair IntelliFlo VS Pumps
• Compatible Pentair IntelliFlo VS+SVRS Pumps
• Compatible Pentair IntelliFlo VSF Pumps
• Compatible Pentair IntelliFlo 2 VST Pumps
• Select Pentair IntelliFlo VS3050 and VF Pump Configurations

Compatibility Notice: Not every WhisperFlo or IntelliFlo pump uses this diffuser. Some WhisperFlo models use the 072927Z diffuser, and some newer IntelliFlo configurations have different impellers or diffuser components. Verify your pump model, manufacturing date, and original diffuser part number before purchasing.

What Does a Pool Pump Diffuser Do?

The diffuser is an important hydraulic component located around the pump impeller. As the impeller rotates, it moves water outward at high velocity. The diffuser guides this water toward the pump housing, helping convert velocity into pressure for circulation through the swimming pool filtration system.

A properly functioning diffuser supports efficient pump operation and helps maintain the hydraulic performance intended by the manufacturer.

When to Replace Your Pump Diffuser

Diffusers can become damaged by debris, improper installation, worn internal components, or pump operating problems. Replacement may be necessary when the original diffuser is physically damaged or no longer fits correctly.

• Cracked or broken diffuser housing
• Damaged internal diffuser vanes
• Warped or deformed diffuser
• Excessive wear or rubbing against the impeller
• Damage discovered during pump rebuilding
• Reduced pump performance traced to a damaged diffuser

Related Pentair Pump Replacement Parts

Complete your Pentair WhisperFlo or IntelliFlo pump repair with these related replacement components available from Aqua Pool Supply.

• Pentair 073131 – 3 HP WhisperFlo / IntelliFlo Impeller – Genuine replacement impeller for compatible 3 HP pumps. Verify the original impeller number and pump manufacturing date before ordering.
• Pentair 071660Z – Diffuser Set Screw, 4-40 x 1-1/8" – Replacement stainless steel diffuser fastening hardware for compatible Pentair pump assemblies.

Pentair Pump Replacement Parts Diagrams

Use the illustrated parts diagrams below to confirm compatibility and locate additional replacement parts.

• Pentair IntelliFlo VS & VS+SVRS – Before 2019
• Pentair IntelliFlo VSF / 2 VST / VS – After 2018
• Pentair IntelliFlo VS+SVRS – After June 2016

Installation Information

1. Disconnect electrical power to the swimming pool pump and prevent automatic restart.
2. Close applicable isolation valves and completely relieve system pressure.
3. Drain the pump and disassemble the wet end according to Pentair's service instructions.
4. Remove the existing diffuser and inspect it for cracks, wear, or physical damage.
5. Inspect the impeller, diffuser O-ring, mechanical seal, and associated hardware.
6. Verify that the replacement 072928Z diffuser matches the original component.
7. Install the diffuser using the correct seal and fastening hardware.
8. Reassemble the pump according to Pentair's specified procedure.
9. Prime the pump, restart the system, and inspect for leaks and abnormal operation.

Maintenance Recommendations

Whenever servicing the pump diffuser, inspect the surrounding components for wear or damage. A deteriorated diffuser O-ring can interfere with sealing, while a damaged impeller or improperly positioned diffuser may affect pump operation.

Pentair identifies 355227Z as the diffuser O-ring for applicable WhisperFlo and IntelliFlo assemblies. Check the specific pump parts diagram before replacing any sealing components.

Package Includes: One (1) genuine Pentair 072928Z Black Pump Diffuser Assembly.

Important: This listing is for the diffuser assembly. The impeller, diffuser O-ring, mechanical seal, screws, and other pump components are not included unless specifically stated in the manufacturer's packaging.

Fitment Note: Confirm your pump model, horsepower configuration, manufacturing date, and original part number. Do not substitute this diffuser for 072927Z or other diffuser models without verifying compatibility.

Safety: Never service a swimming pool pump while energized or pressurized. Follow all Pentair service and installation instructions.
