Pentair IntelliFlo VS & VS+SVRS Pump (Before 2019) Replacement Parts

Pentair

Pentair IntelliFlo VS & VS+SVRS Pump (Before 2019) Replacement Parts

Fits models:IntelliFlo VSIntelliFlo VS+SVRS (before June 2016)

  • Genuine PentairOEM factory parts
  • Fast ShippingFrom AZ & NV
  • 5 Local StoresPhoenix · Las Vegas
  • Expert HelpReal pool pros

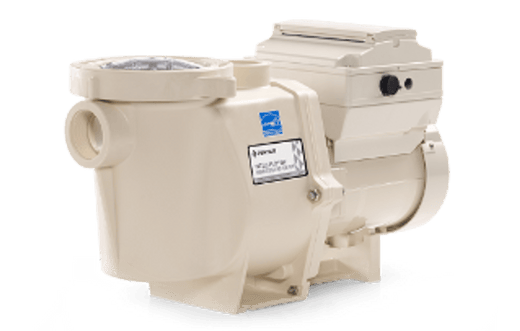

Shop the complete pump

Exploded View

Tap a number to see the part, price and stock.

Pentair Pentair IntelliFlo VS & VS+SVRS Pump (Before 2019) Replacement Parts exploded parts diagram

Pick a part

Click any number on the diagram, or choose from the parts list below.

Know the part number? Use the search in the list.

Common Problems

Show the parts that usually fix it.

Replacement Parts (24)

Basket WF

Part # 070387Z

$19.94$29.99In Stock

Nut, 1/4-20 hex S/S, 2 req.

Part # 071406Z

Call for availability

Screw, 1/4-20 x 1 in. hex cap 18-8 S/S, 2 req.

Part # 071657Z

Call for availability

Washer, flat 1/4 x 5/8 20GA thick 18-8 S/S, 2 req.

Part # 072183Z

Call for availability

Diffuser assembly, black

Part # 072928Z

Call for availability

Pot WF assy., almond (contains 1, (qty. 2), (qty. 2), 20, 21, 24, 25

Part # 357243Z

Call for availability

Junction Box Cover - Almond

Part # 350621Z

Call for availability

Motor fan kit, almond (contains fan, shroud, hardware).

Part # 352401

Call for availability

Drive Control Cover assembly 2 kit

Part # 350601 / 400100Z

Call for availability

Control cover assembly (not sold individually - order assy. kit item #30)

Part # 350082

Call for availability

Screw 10-24 x 3 in. PH MS 18-8 s/s (qty. 3)

Part # 350107Z

Call for availability

IntelliFlo drive gasket

Part # 350108Z

Call for availability

Spacer cap (qty. 3)

Part # 350142

Call for availability

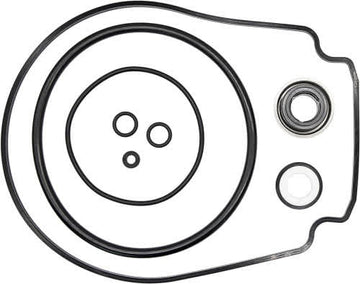

Seal Kit

Part # 071734S

$26.75$34.99In Stock

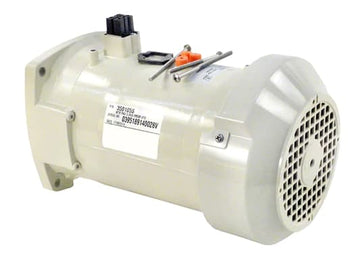

Power end IntelliFlo Variable Speed (Contains items 2, 10, 11,

Part # 070118

Call for availability

Hardware/gasket assy. kit (contains 3 screws, 3 spacer caps and drive gasket)

Part # 350612

Call for availability

Union Kit (contains 2 complete unions for one pump, not included with pump).

Part # 357603

Call for availability

Seal Plate Kit (ozone/salt resistant)

Part # 350199

Call for availability

Pentair IntelliFlo VS & VS+SVRS Pump (Before 2019) parts, matched to the diagram. Click any number on the exploded view to see the part, price and stock. Leaking pump? It is usually the shaft seal or an o-ring. Losing prime? Start with the lid o-ring. Not sure what you have? Call us or bring the part into any of our Phoenix, Scottsdale, Chandler or Las Vegas stores and we'll match it.
