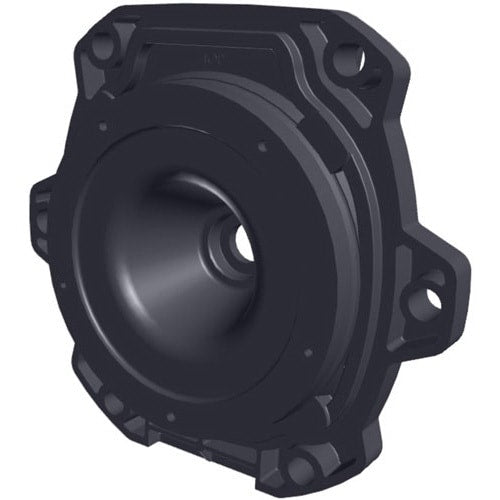

Hayward SPX3200E Seal Plate Assembly

Part # SPX3200E — a genuine OEM replacement seal plate assembly from Hayward designed for select TriStar® and EcoStar® pool pump models. This precision-molded component helps maintain a watertight seal between the motor and pump housing, protecting the internal motor components from water intrusion and ensuring optimal pump performance.

Key Features

• Genuine Hayward factory seal plate, engineered for compatibility with the TriStar® and EcoStar® series.
• Robust, corrosion-resistant construction built for long service life in pool environments.
• Precision fit for models including TriStar VS SP3200VSP, TriStar SP3200EE/SP3200X/SP3600 and EcoStar SP3400VSP.
• Simplifies maintenance and ensures continued warranty compliance when replacing worn or damaged seal plate assemblies.
• Direct replacement part — no modification required, making installation efficient for service technicians or pool professionals.

Typical Applications

This seal plate assembly is appropriate for repair or service of residential in-ground pool circulation systems using select TriStar or EcoStar pump models. When the pump shows signs of leakage between the motor and housing, elevated motor current, or bearing noise associated with water intrusion, replacing the SPX3200E helps restore the intended factory condition and maintain system reliability.

Installation & Compatibility Notes

Before installation, disconnect power to the pump and relieve system pressure. Remove the pump’s strainer cover and unwind the lock ring. Separate the motor and wet end, inspect for wear or corrosion, clean the motor shaft/bearing area, then install the new SPX3200E seal plate ensuring proper gasket seal and torque settings. Reassemble the pump and confirm leak-free operation under load. Always confirm your pump’s model designation and voltage to ensure compatibility.

Why Choose This Component?

Selecting the genuine Hayward SPX3200E ensures that you maintain the original design integrity of the TriStar/EcoStar pump systems. Using original parts avoids the variability of aftermarket alternatives, preserves the equipment’s factory-rated performance and supports system longevity. For pool professionals or discerning homeowners, this seal plate offers dependable service and peace of mind.

Maintenance Tips

• Inspect around the motor housing and seal plate area annually for signs of water seepage or corrosion.
• During winterizing, ensure the pump is fully drained and the motor housing cleared of moisture before storage.
• If the pump begins to show increased noise, reduced flow, or premature bearing failure, check the seal plate condition and consider replacement with SPX3200E.
• Always use compatible gaskets and O-rings when reassembling the pump to prevent leaks or performance loss.
