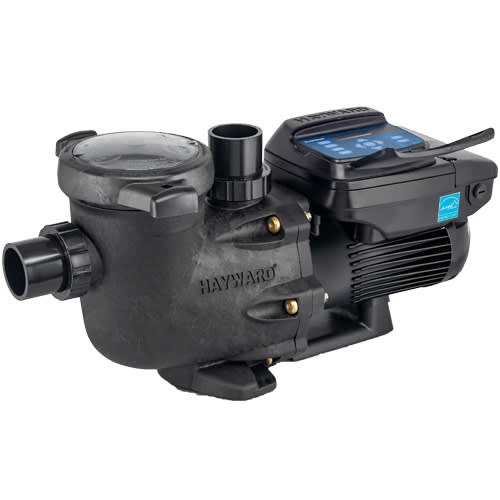

Hayward TriStar VS 2.70 THP Pump Replacement Parts

Hayward

Hayward TriStar VS 2.70 THP Pump Replacement Parts

Fits models:HCP2500VSPX1SP32950VSPX1W3SP3206VSPX1SPX3206Z1VSPE (Power End)

  • Genuine HaywardOEM factory parts
  • Fast ShippingFrom AZ & NV
  • 5 Local StoresPhoenix · Las Vegas
  • Expert HelpReal pool pros
Owner's Manual (PDF) Shop the complete pump

Exploded View

Tap a number to see the part, price and stock.

Hayward Hayward TriStar VS 2.70 THP Pump Replacement Parts exploded parts diagram

Pick a part

Click any number on the diagram, or choose from the parts list below.

Know the part number? Use the search in the list.

Common Problems

Show the parts that usually fix it.

Replacement Parts (15)

Union Gasket

Part # SPX3200UG

$14.94$19.99In Stock

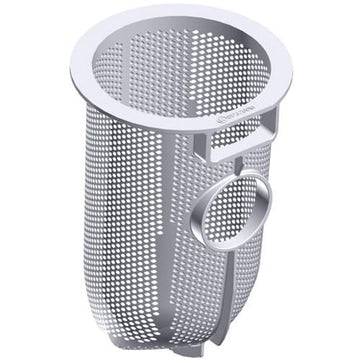

Strainer Basket

Part # SPX3200M

$19.94$29.99In Stock

Diffuser Screw (5 Pack)

Part # SPX3200Z8

Call for availability

Diffuser O-Ring

Part # SPX4000Z1

$12.94$19.99In Stock

Diffuser

Part # SPX3200B3

$39.75$59.99In Stock

Impeller Screw

Part # SPX3200Z1

Call for availability

Impeller Ring

Part # SPX3021R

Call for availability

Housing O-Ring

Part # SPX3200T

$17.94$24.99In Stock

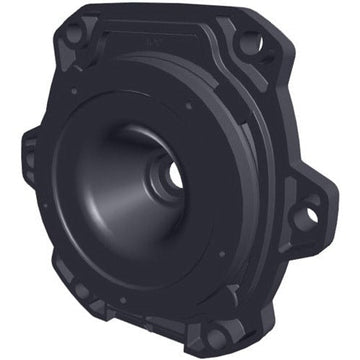

Seal Plate

Part # SPX3200E

$57.99$67.99In Stock

Housing Bolt

Part # SPX3200Z3

Call for availability

Motor Bolt

Part # SPX3200Z5

Call for availability

Motor Support

Part # SPX3200GA

Call for availability

Optional Riser Base aligns with Pentair WhisperFlo pump*

Part # SPX3200WF

Call for availability

Motor Support Adapter

Part # SPX3200Q

Call for availability

Display Terminal Assembly

Part # VSXDISPLAYX1

Call for availability

Power End Assembly, Non-SVRS (Includes #7-15, 2 ea. #16-17, #18, #24 and Motor Assembly)

Part # SPX3206Z1VSPE

Call for availability

Communication Cable Kit

Part # SPX3200DRCC

Call for availability

Interactive exploded-view parts diagram for the Hayward TriStar VS 2.70 THP Pump. Click any numbered part to see the part number, price and stock, or call us and we will find it for you.
