Zodiac Baracuda Diaphragm Replacement | X73010
Jandy
SKU: X73010
Not sure it fits?

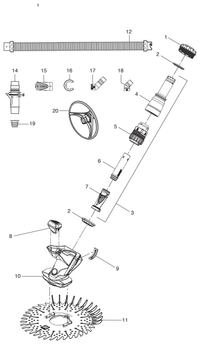

See this part on the interactive diagram
Zodiac TR2D Suction Pool Cleaner
Not sure it fits?
See this part on the interactive diagram
Zodiac TR2D Suction Pool Cleaner
Zodiac Replacement Diaphragm – X73010 (Baracuda X7/T5 Suction Cleaners)
The Zodiac X73010 (“Dura‑Life” diaphragm) is the genuine OEM replacement part for Zodiac/Baracuda suction-side pool cleaners, including the Baracuda X7 Quattro, T5 Duo, and TR2D models.
Key Features:
- Genuine Zodiac/Baracuda OEM diaphragm (part X73010)
- Over-molded reinforcement design for smoother operation and better durability
- Easy to install — straightforward drop-in replacement for the factory diaphragm
- High-grade rubber and plastic construction to handle cleaning cycles and chemical exposure
Technical Specifications:
- Model / SKU: X73010
- Fits Pool Cleaner Models: Baracuda X7 Quattro, T5 Duo, TR2D
- Material: Reinforced rubber/plastic diaphragm—designed for quiet and efficient operation
- Weight: Approximately 0.1 lb; compact 2″ × 2″ form factor
Maintenance Tip: Always check the diaphragm for tears or wear before and after each season. Replace the diaphragm anytime suction performance drops or movement becomes erratic. Lubricate seals lightly with pool-safe silicone spray—not petroleum-based products. Follow manufacturer’s torque guidelines when installing the cleaner’s drive assembly to avoid over-compression or distortion.
