Zodiac TR2D Replacement Parts

Zodiac

Zodiac TR2D Replacement Parts

Fits models:WS000016

  • Genuine ZodiacOEM factory parts
  • Fast ShippingFrom AZ & NV
  • 5 Local StoresPhoenix · Las Vegas
  • Expert HelpReal pool pros

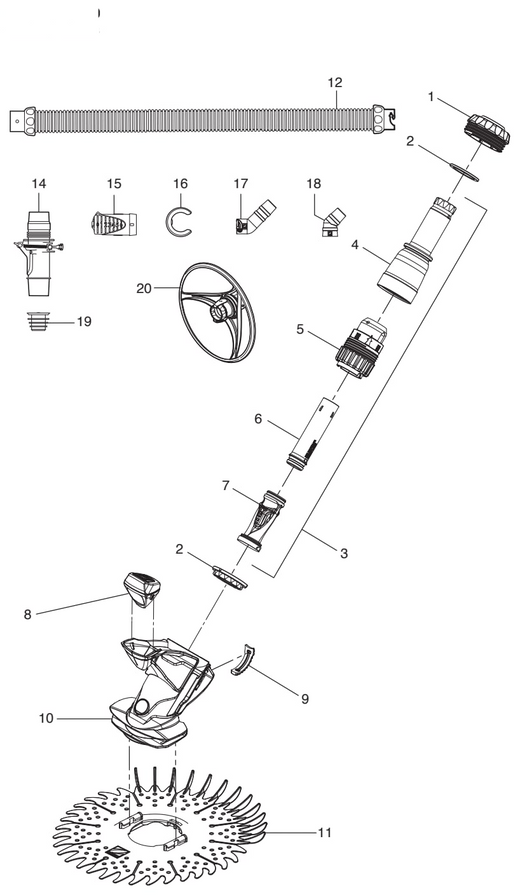

Exploded View

Tap a number to see the part, price and stock.

Zodiac Zodiac TR2D Replacement Parts exploded parts diagram

Pick a part

Click any number on the diagram, or choose from the parts list below.

Know the part number? Use the search in the list.

Common Problems

Show the parts that usually fix it.

Replacement Parts (4)

Handnut

Part # R0541100

Call for availability

Washers (Upper and Lower)

Part # R0542300

Call for availability

Engine

Part # R0541000

Call for availability

Outer Extension Tube

Part # R0542100

Call for availability

Cup Assembly

Part # R0542000

Call for availability

Inner Extension Tube

Part # R0542200

Call for availability

Float

Part # R0615000

Call for availability

Bumper

Part # R0541800

Call for availability

Body

Part # R0614800

Call for availability

Disc

Part # R0541400

Call for availability

FlowKeeper Valve

Part # R0527400

Call for availability

Zodiac Flow Gauge

Part # R0527500

Call for availability

Universal Hose Weight, Blue

Part # R0542600

Call for availability

Twist-Lock 45-Degree Elbow, Extended

Part # R0532400

Call for availability

45-Degree Weir Elbow (EVA)

Part # R0532500

Call for availability

Interactive exploded-view parts diagram for the Zodiac TR2D suction pool cleaner (WS000016). Click any numbered part to see the part number, price and stock. Common replacements include diaphragms, engines, discs, bumpers, floats and twist-lock hoses. Not sure which part you need? Call us or bring the old part into any of our stores and we'll match it.
