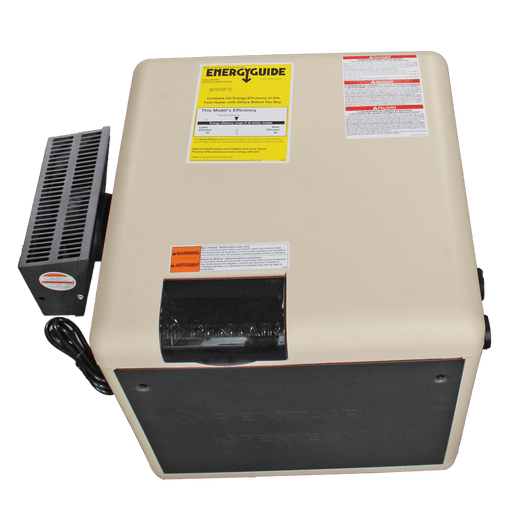

Pentair MasterTemp 125 Heater Replacement Parts

Fits models:MasterTemp 125 Natural GasMasterTemp 125 Propane

  • Genuine PentairOEM factory parts
  • Fast ShippingFrom AZ & NV
  • 5 Local StoresPhoenix · Las Vegas
  • Expert HelpReal pool pros
Shop the complete heater

Exploded View

Tap a number to see the part, price and stock.

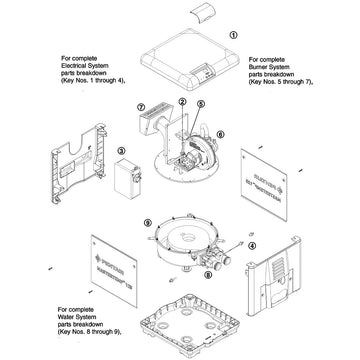

Pentair Pentair MasterTemp 125 Heater Replacement Parts exploded parts diagram

Pick a part

Click any number on the diagram, or choose from the parts list below.

Know the part number? Use the search in the list.

Common Problems

Show the parts that usually fix it.

Replacement Parts (14)

Tube Sheet Coil Assembly Kit - Includes Item #3. (NA, LP Series)

Part # 474971

Call for availability

Coil/Tubesheet Sealing O-Ring Kit

Part # 474973

Call for availability

Manifold Bottom Plate

Part # 476195

Call for availability

Manifold Baffle Plate

Part # 476197

Call for availability

Manifold Bypass Valve

Part # 476198

Call for availability

Manifold *

Part # Call for part number

Call for availability

5/16" Washer, S.S. *

Part # Call for part number

Call for availability

5/16 x 18 x 2-3/4" Hex Cap Screw *

Part # Call for part number

Call for availability

Pressure Relief Valve (Recommended-Purchased Separately)

Part # 473715Z

Call for availability

Union 1-1/2" Kit

Part # 474974

Call for availability

3/4 in. Union

Part # 38404-4097S

Call for availability

Air Blower Kit

Part # 474978 / 474977

Call for availability

Air Orifice Kit (Incl. Item Nos. 6, 7)

Part # 474979

Call for availability

Combustion Chamber Gasket Kit

Part # 474952

Call for availability

One Piece Metal Chamber/Combustion Chamber Assembly

Part # 474990

Call for availability

One Piece Metal Elbow/Combutsion Chamber Cover

Part # 474958

Call for availability

Assembly, 9-Bolt Metal Vent Cover

Part # 42002-0005S

Call for availability

Heater Top

Part # 42002-0034Z

Call for availability

Side Panel (Service Panel)

Part # 474991

Call for availability

Side Panel (Manifold)

Part # 474992

Call for availability

Heater Bottom

Part # 42002-0031Z

Call for availability

Side Panel (Flue Stack)

Part # 474993

Call for availability

J Box Cover

Part # 42002-0041Z

Call for availability

11 ea clips, 11 ea screws, 8 wing nuts

Part # 474292

Call for availability

Gas Orifice Kit - NG (Incl. Item Nos. 3 and 4) **

Part # 474981

Call for availability

Gas Orifice Kit - Propane (Incl. Item Nos. 3 and 4) **

Part # 474980

Call for availability

NG to Propane Conversion Kit (Incl. Item Nos. 3 and 4) **

Part # 461063

Call for availability

Blower/Adapter Plate Gasket Kit (Incl. Item Nos. 8, 9, 10, 12)

Part # 77707-0011

Call for availability

Flameholder Kit (Incl. Item Nos. 10, 11, 12, 13)

Part # 474994

Call for availability

Insulation Kit (Incl. Item Nos. 13, 14, 16, 17, 18, 19)

Part # 77707-0008

Call for availability

Direct Air Intake Duct Kit (MasterTemp 125)

Part # 474845

Call for availability

Accessories and Documents Bundle

Part # 462053

Call for availability

Heater Display Cover

Part # 42002-0035Z

Call for availability

Igniter Bracket

Part # 42001-0030S

Call for availability

Igniter Gasket

Part # 42001-0066S

Call for availability

High Limit Switch

Part # 42001-0063S

$47.94$59.99In Stock

Thermistor

Part # 42001-0053S

$58.94$79.99In Stock

Terminal Board

Part # 42001-0056S

Call for availability

Fireman’s Switch Fuse (1.25A, 1-1/4 in.)

Part # 32850-0099Z

Call for availability

Transformer, 115/230V

Part # 42001-0107Z

Call for availability

Air Flow Switch

Part # 42001-0061S

$99.94$149.99In Stock

Heater, Top

Part # 42002-0034Z

Call for availability

Stack Flue Sensor

Part # 42002-0024S

$94.94$123.99In Stock

Heater Wiring Harness -115/230V

Part # 461107

Call for availability

120/240 Volt Plug Kit

Part # 42001-0105S

Call for availability

Interactive exploded-view parts diagram for the Pentair MasterTemp 125 Heater. Switch between the Water System, Burner System, Electrical System views, then click any numbered part to see the part number, price and stock, or call us and we will find it for you.
