Hayward H-Series Pool Heater On/Off Switch | CHXTSW1930
Hayward Products
SKU: HPPCHXTSW1930

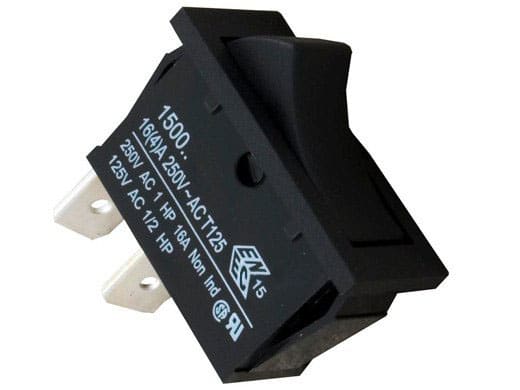

Hayward CHXTSW1930 On/Off Rocker Switch - Genuine Replacement for H-Series Pool Heaters
This genuine Hayward on/off rocker switch is a direct replacement for worn or damaged switches on Hayward H-Series pool and spa heaters. The durable 2-pin rocker design provides reliable operation and easy control of your heater system. Built to withstand the demands of pool equipment environments, this switch ensures safe and dependable heater operation.
Key Features
- Genuine Hayward OEM Part - Factory direct replacement ensures proper fit and function
- 2-Pin Rocker Design - Simple on/off operation with clear labeling
- Durable Construction - Built to withstand heat, moisture, and outdoor conditions
- Easy Installation - Direct replacement installs quickly with basic tools
- Universal Compatibility - Works with multiple H-Series heater models
- Protective Cover - Some versions include clear rubber boot for added protection
Compatible Heater Models
This switch is compatible with the following Hayward heater series:
- H-Series Millivolt Models: H1501, H150P1, H2001, H200P1, H2501, H250P1
- H-Series Induced Draft Models: H100ID1, H100IDP1
- H-Series ED1 Models: Various induced draft heaters
- ComfortZone (CZ) Series: All CZ heater models
- HeatMaster 2 (HM2) Series: All HM2 heater models
- HeatPro Models: Compatible HeatPro heater models
Product Specifications
- Manufacturer: Hayward Pool Products
- Part Number: CHXTSW1930
- UPC: 610377003247
- Switch Type: 2-pin rocker switch
- Function: On/Off control
- Electrical Rating: AC 250V/16A, 125V/20A
- Switch Model: KCD3-101 rocker switch
- Weight: 2 pounds (packaged)
When to Replace Your Heater Switch
Replace your on/off switch if you experience any of these issues:
- Switch fails to turn heater on or off
- Switch feels loose or wobbly in the mounting hole
- Visible cracking or damage to the switch housing
- Switch toggle breaks off or becomes difficult to operate
- Intermittent heater operation when toggling switch
- Electrical arcing or burning smell near switch
Installation Notes
- ALWAYS turn off power at the breaker before replacing the switch
- Remove heater front panel to access switch mounting location
- Note wire connections before removing old switch
- Connect wires to new switch in same configuration as original
- Ensure switch snaps securely into mounting hole
- Test operation before reassembling heater panel
- Professional installation recommended if you're not comfortable working with electrical components
Safety Information
- This component involves electrical connections - turn off all power before servicing
- Verify compatibility with your specific heater model before ordering
- If heater fails to operate after switch replacement, check other components and consult a qualified technician
- Never bypass or modify safety switches
Troubleshooting Tips
If your heater won't turn on after installing the new switch:
- Verify power is turned back on at the breaker
- Check that wire connections are secure
- Ensure wires are connected to correct terminals
- Confirm switch is fully seated in mounting hole
- Test with a multimeter to verify switch continuity
- Check other safety switches and controls that may prevent heater operation
Note: This is an electrical component. If you're not comfortable working with electrical systems, hire a qualified pool heater technician to perform the installation. Always consult your heater's service manual before attempting repairs.
