Hayward H-Series H100ID Heater Replacement Parts

Hayward

Hayward H-Series H100ID Heater Replacement Parts

Fits models:H100ID

  • Genuine HaywardOEM factory parts
  • Fast ShippingFrom AZ & NV
  • 5 Local StoresPhoenix · Las Vegas
  • Expert HelpReal pool pros

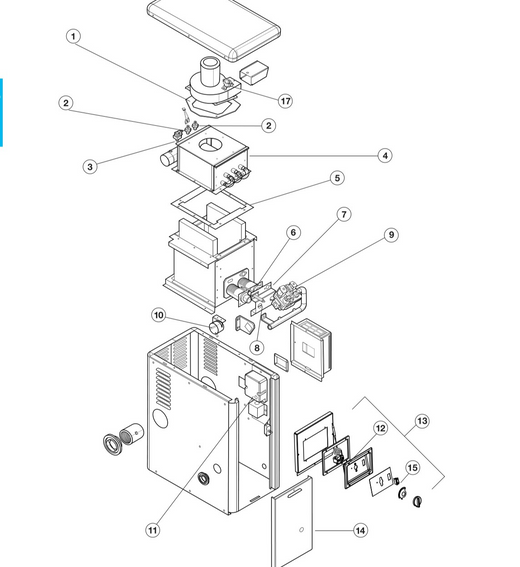

Exploded View

Tap a number to see the part, price and stock.

Hayward Hayward H-Series H100ID Heater Replacement Parts exploded parts diagram

Pick a part

Click any number on the diagram, or choose from the parts list below.

Know the part number? Use the search in the list.

Common Problems

Show the parts that usually fix it.

Replacement Parts (2)

Blower Gasket

Part # IDXBLG1930 / IDXBLG1931

Call for availability

Hi Limits Kit

Part # IDXHLK1930

Call for availability

Heat Exchanger Assembly

Part # IDXHXA1102

Call for availability

Heat Exchanger Gasket

Part # IDXGKT1930

Call for availability

Burner

Part # IDXBNR1930

Call for availability

Burner Orifice and Air Orifice Bracket Kit

Part # IDXAGK1930 / IDXAGK1931

Call for availability

Ignitor

Part # IDXIGN1930

Call for availability

Gas Valve

Part # IDXVAL1931

Call for availability

Air Pressure Switch

Part # IDXAPS1930

Call for availability

Control Module with Ignitor

Part # IDXMOD1930

Call for availability

Thermostat

Part # IDXTST1930

Call for availability

Control Panel Assembly

Part # IDXCPA1100

Call for availability

Front Access Door

Part # IDXFAD1101

Call for availability

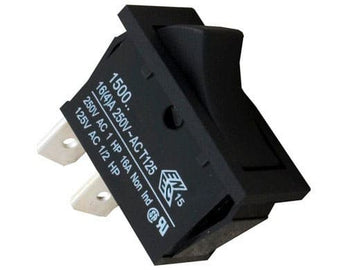

On/Off Switch

Part # CHXTSW1930

$22.70$29.99In Stock

Blower Switch

Part # IDXBLS1930 / IDXBLS1931

Call for availability

Interactive exploded-view parts diagram for Hayward H-Series H100ID (100K BTU) heaters. Click any numbered part to see the part number, price and stock. Common replacements include the control module with ignitor, gas valve, burner, pressure switch, high limits and heat exchanger. Not sure which part you need? Call us or bring the old part into any of our stores and we'll match it.
