Hayward H-Series Heater Burner Tube | HAXBRN1930
Hayward Products
SKU: HAXBRN1930

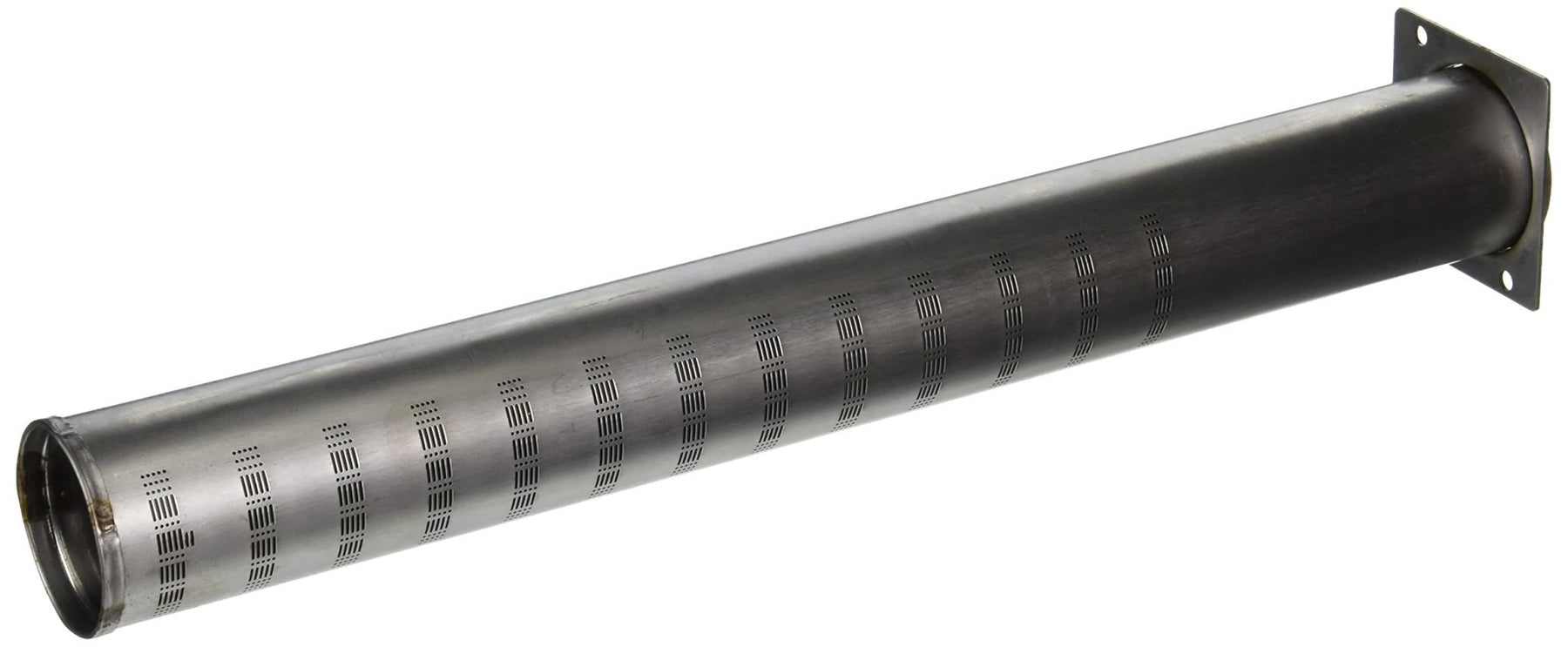

Hayward HAXBRN1930 Main Burner / Burner Tube (H-Series Heaters)
The Hayward HAXBRN1930 is a genuine OEM main burner (burner tube) used in compatible Hayward H-Series gas pool heaters. The burner tube is part of the combustion system that distributes gas/air evenly for stable, efficient heating. Replace a burner tube when it is corroded, warped, damaged, or when burner flames are uneven after other causes (gas supply, orifice, air intake, soot, etc.) have been addressed.
Fits / Compatibility
- Hayward H-Series ED1 heater applications
- Hayward H-Series ED2 heater applications
- Hayward H-Series Induced Draft heater applications
- Not used on current model Hayward H-Series FDN or H-Series FDP heaters
Important Quantity Note
- These burner tubes are commonly sold individually.
- Many H-Series heaters use multiple burner tubes (often 8 per heater, depending on model).
Common Signs You Need to Replace a Burner Tube
- Visible rust, scale, holes, or cracking on the burner
- Uneven flame, lifting flame, or unstable burner pattern
- Persistent sooting or poor combustion after cleaning/inspection
- Heat output seems reduced and combustion components show heavy wear
Specs (Quick Reference)
- Part Number: HAXBRN1930
- Part Type: Heater Parts (Main Burner / Burner Tube)
- Pool Type: In-Ground
- Approx. Shipping Weight: 34.5 lb
- Approx. Shipping Dimensions: 16.5" x 24" x 28"
Installation Notes
- Gas service should be performed by a qualified technician. Improper installation can create fire, explosion, and carbon monoxide hazards.
- Inspect/clean the combustion chamber, burners, and manifold area while servicing.
- If you’re replacing one burner due to heavy corrosion, inspect the rest of the burner set and consider replacing as a matched set if wear is similar.
- After installation, the heater should be verified for proper ignition and flame characteristics.
Related Products
- Hayward HAXBRN1930 (search)
- Hayward H-Series Heater Parts (search)
- Hayward HAXHLI1930 Hi-Limit Switch 135°F (search)
- Hayward HAXPSA1930 Pressure Switch Assembly (search)
- Hayward IDXCNK1933 NG-to-LP Conversion Kit (100K ID) (search)
Maintenance Tips
- Keep the heater area clear for proper airflow and safe combustion.
- Maintain balanced water chemistry to reduce scale and corrosion that can shorten heater life.
- If you notice flame problems or soot, stop using the heater and have the gas/combustion system inspected.
- Keep your filter clean and flow correct—low flow can cause nuisance shutdowns that look like heater problems.
