Hayward H-Series Heater 135F Hi-Limit | HAXHLI1930
Hayward Products
SKU: HAXHLI1930

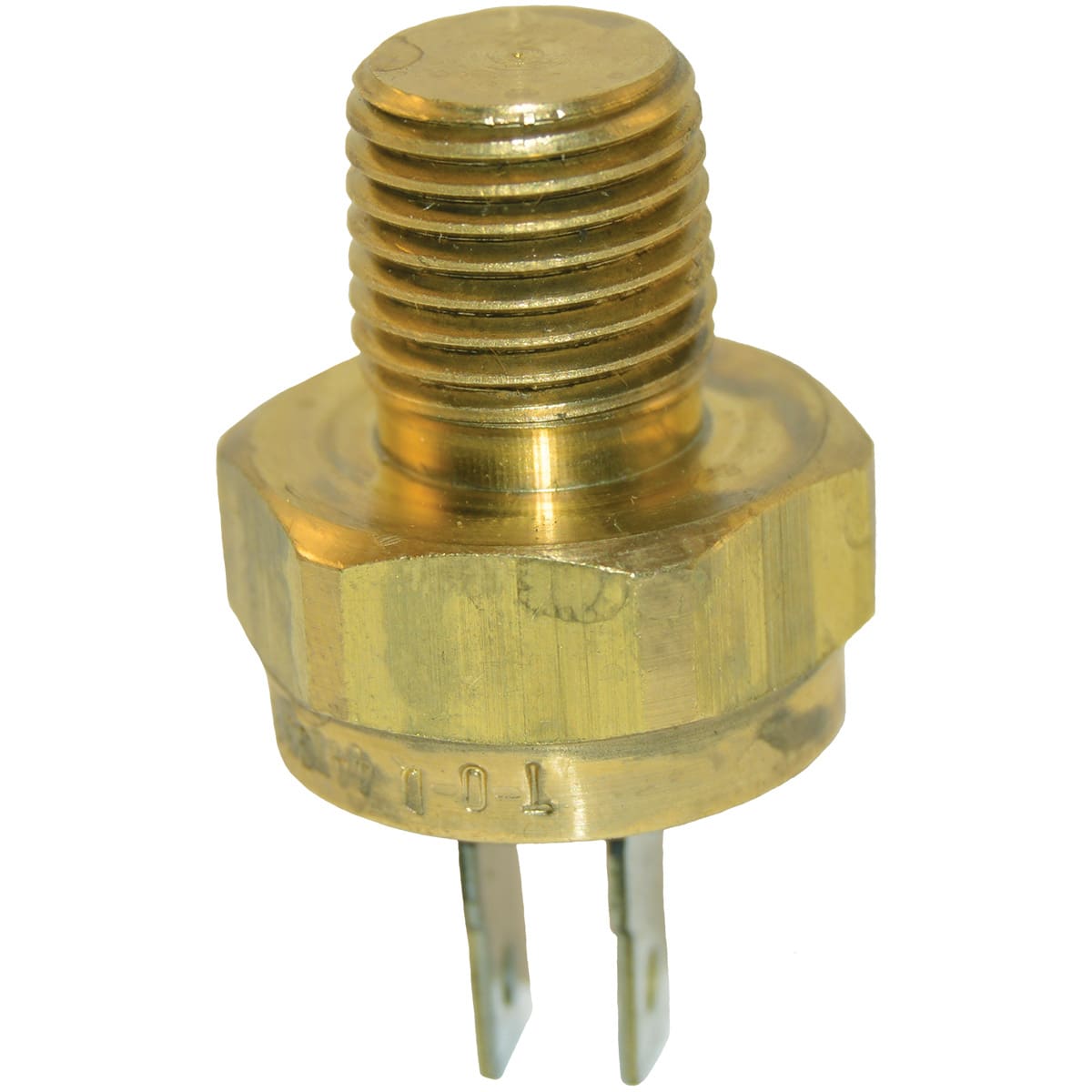

Hayward HAXHLI1930 Hi-Limit Switch (135°F) for H-Series Pool Heaters
The Hayward HAXHLI1930 is a genuine OEM 135°F high limit switch (hi-limit) used on compatible Hayward H-Series pool and spa heaters. This safety switch helps protect the heater by shutting the unit down if internal water temperature rises above the safe limit—commonly due to low water flow, blocked circulation, or scaling.
Fits / Compatibility
- Commonly used on Hayward H-Series ED1 and ED2 style heaters
- Also commonly listed for Hayward H-Series Induced Draft and Low NOx heater applications (model/revision dependent)
- Works as the 135°F hi-limit device (verify the temperature rating printed on your existing switch)
Fit tip: Heater parts can vary by revision. Confirm your heater model number from the data plate and match the hi-limit temperature rating before ordering.
What It Fixes
- Heater shutting down on high-limit safety due to a failed or out-of-spec switch
- Intermittent heating caused by unstable switch contact
- Preventive replacement during heater service when the original switch is corroded or damaged
Common Causes of High-Limit Trips (Before Replacing Parts)
- Dirty filter or clogged pump basket reducing flow
- Closed/partially closed valves or bypass settings restricting circulation
- Low water level or suction-side air leak causing poor flow
- Scale buildup inside the heat exchanger creating localized overheating
Specs (Quick Reference)
- Part Number: HAXHLI1930
- Type: Hi-Limit Safety Switch
- Trip Temperature: 135°F
- Part Type: Heater Parts
- Pool Type: In-Ground
Installation Notes
- Power off the heater at the breaker before service.
- Label or photograph wire locations before disconnecting.
- If the heater continues to trip a new hi-limit, diagnose the root cause (flow restriction, scaling, bypass, pump performance) to prevent repeat shutdowns.
- Installation should be performed by a qualified technician.
Related Products
- Hayward HAXHLI1930 Hi-Limit Switch (search)
- Hayward HAXPSA1930 Water Pressure Switch Assembly (search)
- Hayward HAXHOR1930 Header O-Ring (search)
- Hayward HAXNNO1930 Heater Union/Nipple Kit (search)
- Hayward H-Series Heater Parts (search)
Maintenance Tips
- If you see repeated hi-limit shutdowns, check filter pressure and clean/ backwash as needed—low flow is the most common cause.
- Maintain balanced water chemistry to reduce scale that can overheat the heat exchanger.
- Verify proper bypass/valve settings after any plumbing changes to keep heater flow within its required range.
- Keep the heater cabinet clean and ensure ventilation is not blocked.
