Zodiac Nature2 Fusion Tri-Lobe O-Ring | R0586300
Zodiac
SKU: ZODR0586300

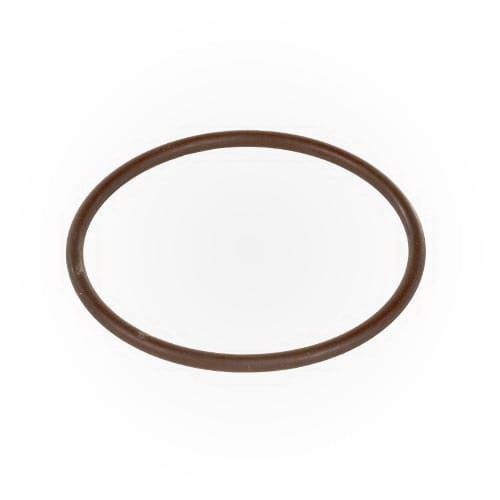

Zodiac / Jandy R0586300 Tri-Lobe (Quad) O-Ring for Nature2 Fusion & Vision Systems
The Zodiac / Jandy R0586300 is a genuine replacement tri-lobe (quad-style) collar O-ring used on compatible Nature2 Fusion and Vision sanitizer systems. This seal is designed to maintain a leak-free connection at the system’s large collar, helping prevent water seepage and air intrusion that can affect circulation and sanitizer performance.
Key Details
- Brand: Zodiac / Jandy (Fluidra)
- Part Number: R0586300
- Part Type: Tri-lobe / quad-style O-ring (large collar seal)
- Material: FKM (Viton-style) rubber for improved chemical and heat resistance
- Common Size Listing: Approx. 3.8" I.D. x 0.25" cross-section (verify by measuring your original seal)
Common Compatibility
- Nature2 Fusion Inground systems
- Nature2 Fusion Soft systems
- Nature2 Vision / Vision Pro systems (model-dependent)
Fit is best confirmed by matching the part number from your unit’s parts list or comparing the original collar seal shape and measurements.
What This O-Ring Does
- Seals the large collar connection to prevent leaks during normal operation.
- Helps reduce suction-side air draw caused by a flattened or damaged seal.
- Supports consistent flow through the sanitizer assembly by maintaining proper sealing pressure.
When to Replace
- Drips or moisture at the collar connection
- Flattened, cracked, swollen, or sticky rubber
- Collar must be overtightened to stop seepage
- Seal no longer reseals reliably after being opened for service
Installation Notes
- Turn the pump off and relieve pressure before opening any collar/union connection.
- Remove the old seal and clean the sealing groove and mating surfaces (remove grit, scale, and old residue).
- Install the new tri-lobe O-ring evenly in the groove—do not twist.
- Lightly lubricate with a pool-safe silicone lubricant (avoid petroleum-based lubricants).
- Hand-tighten the collar/union evenly and recheck for seepage after the system is running.
Maintenance Tip
Most collar leaks are caused by debris on the sealing faces or a dry, flattened O-ring. Cleaning the mating surfaces and lightly lubricating the new seal helps it seat properly and can prevent repeat leaks after the next service.
