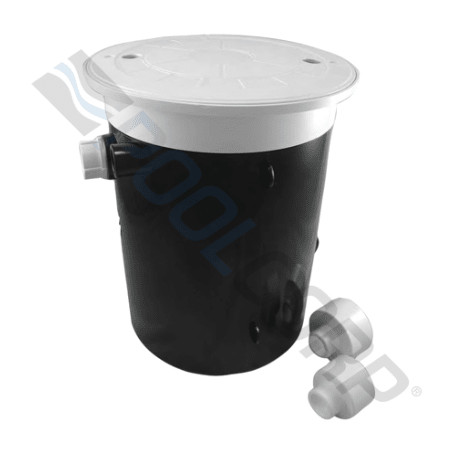

Super-Pro Automatic Pool Water Leveler with White Lid | 25504-000-000

The Super-Pro 25504-000-000 Automatic Pool Water Leveler is designed to maintain a consistent water level in swimming pools and spas. Featuring a white access lid and an automatic float-operated filling mechanism, this water leveler helps compensate for water lost through evaporation, splash-out, and normal pool use.

By automatically regulating incoming makeup water, the Super-Pro water leveler helps reduce the need for manual refilling while maintaining a more consistent operating water level.

Product Features

• Automatic Water Level Control: Helps maintain a consistent swimming pool or spa water level.
• Float-Operated Filling System: Regulates incoming water according to the water level inside the chamber.
• White Access Lid: Provides a clean, finished appearance around the pool deck.
• Durable Plastic Construction: Designed for swimming pool environments.
• Multiple Plumbing Options: Supports compatible 1", 1-1/2", and 2" connection configurations.
• No Electronic Controller Required: Uses a mechanical float-operated system.
• Convenient Maintenance Access: Removable lid provides access to the water level control chamber.
• In-Ground Pool Applications: Designed for compatible swimming pool, spa, and water feature installations.

Product Specifications

• Manufacturer: Super-Pro
• Manufacturer Part Number: 25504-000-000
• Distributor Part Number: SPG-56-5000
• Product Type: Automatic Swimming Pool Water Leveler
• Color: White
• Operation: Mechanical Float Valve
• Application: In-Ground Pools, Spas, and Water Features
• Connection Options: 1", 1-1/2", and 2" Configurations
• Construction: Molded Plastic
• Distributor-Listed Weight: 5.5 lb
• Distributor Shipping Dimensions: 11" x 10.75" x 13.5"
• Package Quantity: 1 Water Leveler with White Lid

How the Automatic Water Leveler Works

The Super-Pro water leveler uses a mechanical float valve to monitor the water level inside its chamber.

When pool water drops below the selected level, the float lowers and opens the supply valve, allowing fresh water to enter the system.

As the water rises, the float moves upward and closes the valve once the desired water level is reached.

This automatic operation helps maintain pool water levels without requiring homeowners to manually add water using a garden hose.

Benefits of Automatic Pool Water Level Control

• Reduces the need for frequent manual pool refilling.
• Helps compensate for water lost through evaporation.
• Maintains a more consistent skimmer operating level.
• Helps reduce low-water conditions caused by normal water loss.
• Provides convenient water level management during hot weather.
• Operates without an electronic water level controller.
• Suitable for compatible residential swimming pools and spas.

Ideal for Swimming Pools in Hot Climates

Swimming pools in hot climates can experience significant water loss through evaporation, particularly during summer.

The Super-Pro automatic water leveler helps replenish evaporated water and maintain a consistent pool level.

This is especially useful for pools in areas such as Arizona, Nevada, Texas, and other regions where high temperatures can increase evaporation.

Common Applications

• Residential In-Ground Swimming Pools
• Swimming Pool Renovations
• New Pool Construction
• Compatible Spas and Hot Tubs
• Decorative Water Features
• Other Compatible Automatic Water Refill Applications

Installation Recommendations

The Super-Pro automatic water leveler is designed to be connected to a suitable freshwater supply and the swimming pool's water level equalization plumbing.

Installation should follow the manufacturer's instructions and applicable plumbing requirements.

1. Select an appropriate installation location near the pool.
2. Install the leveler chamber according to the manufacturer's recommended elevation.
3. Connect the appropriate equalizer plumbing.
4. Connect the freshwater supply using approved plumbing components.
5. Install required backflow protection according to local plumbing codes.
6. Adjust the float valve to the desired operating water level.
7. Turn on the freshwater supply.
8. Verify that the valve opens when the water level drops.
9. Confirm that the valve closes when the desired level is reached.
10. Inspect all connections for leaks.

Maintenance and Troubleshooting

Routine inspection helps keep the automatic water leveler functioning properly.

• Inspect the float valve for debris or mineral buildup.
• Verify that the float moves freely.
• Check the incoming water supply connection for leaks.
• Inspect the chamber for accumulated debris.
• Verify that the water supply shuts off at the selected level.
• Inspect the access lid for cracks or damage.
• Replace damaged or worn float components when necessary.

Related Automatic Pool Water Leveler Parts

Aqua Pool Supply carries replacement components and alternative water level control equipment.

• CMP 25504-000-100 – 3/8" Water Leveler Float Valve – Replacement thermoplastic float valve for compatible CMP automatic water levelers.
• Pentair T40BW – Automatic Pool Water Leveler, White – Alternative automatic water leveler designed for compatible pool installations.
• Rola-Chem M-3000 – Pool Sentry Automatic Water Level Control – Portable water level maintenance system for compatible pools and spas.

Additional Pool Water Level Control Equipment

Explore more automatic swimming pool water levelers and replacement autofill float valves available from Aqua Pool Supply.

Package Contents

Distributor-Listed Product: One (1) Super-Pro 25504-000-000 Automatic Pool Water Leveler with White Lid.

Installation Requirements: External water supply plumbing, backflow protection, and other installation materials may be required.

Compatibility: Verify the required plumbing connections, installation dimensions, and water leveler configuration before ordering.

Safety: Automatic water levelers must be installed with appropriate backflow protection and in accordance with applicable local plumbing codes. Periodically inspect the float valve to ensure the water supply shuts off correctly.
