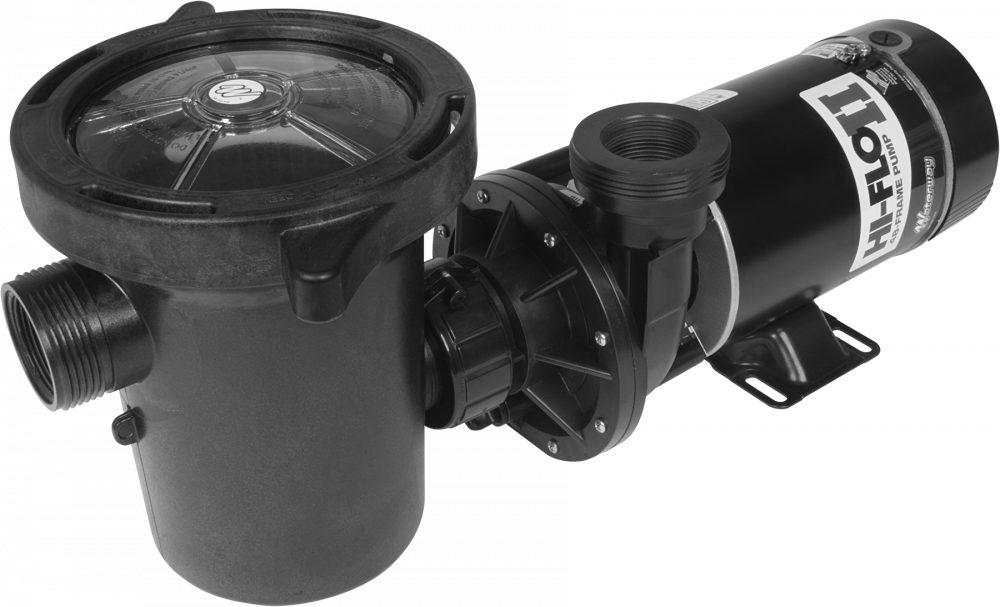

Waterway Hi-Flo II Above Ground Pool Pump and Trap with 3' NEMA Cord .95HP SD-10-1-N
Waterway
SKU: SD-10-1-N
Waterway SD-10-1-N Hi-Flo II Above Ground Pool Pump with 3' NEMA Cord, .95 HP
The Waterway SD-10-1-N Hi-Flo II is a single-speed, side-discharge above-ground pool pump designed for above-ground pool circulation and filtration systems. This pump includes a 3' NEMA cord and is commonly used as a replacement pump for compatible Waterway Hi-Flo II above-ground pool equipment setups.
The Hi-Flo II pump is built for strong water movement, faster filtering cycles, and reliable above-ground pool performance. Its side-discharge wet end and large 6" pump trap make it a practical replacement option for systems that match the required plumbing, voltage, cord, and pump orientation.
Product Features
- Genuine Waterway Hi-Flo II above-ground pool pump
- Manufacturer part number: SD-10-1-N
- Single-speed pump design
- Commonly listed as .95 HP where specified
- 115V operation
- Side-discharge 48-frame pump design
- Includes 3' NEMA cord
- Large 6" pump trap with 2-piece lid
- Wet end rotates for easier installation in vertical or horizontal position
- Designed for above-ground pool filtration and circulation systems
Product Details
| Brand | Waterway |
| Part Number | SD-10-1-N |
| Product Line | Hi-Flo II |
| Product Type | Above Ground Pool Pump |
| Speed | Single Speed |
| Voltage | 115V |
| Horsepower | .95 HP where specified |
| Discharge Style | Side Discharge |
| Frame | 48 Frame |
| Cord | 3' NEMA Cord |
| Intake | 1-1/2" Union, 1-1/2" FPT Threads |
| Discharge | 2" Union, 1-1/2" FPT Threads |
| Application | Above-ground pool circulation and filtration |
Compatibility
- Above-ground pool systems requiring a Waterway Hi-Flo II side-discharge pump
- Replacement applications specifically calling for Waterway SD-10-1-N
- Pool equipment pads using compatible 115V power, NEMA cord, plumbing layout, and pump orientation
- Systems using a 1-1/2" union intake and 2" union discharge configuration where specified
- Not intended as a direct replacement for 2-speed, twist-lock cord, center-discharge, in-ground, or variable-speed pump models unless all system requirements match
Common Uses
- Replacing a compatible above-ground pool pump
- Running above-ground pool filtration systems
- Restoring circulation on Waterway Hi-Flo II pump systems
- Replacing worn, noisy, leaking, or failed above-ground pump assemblies
- Pool equipment repairs where SD-10-1-N is the specified replacement model
Installation Notes
- Disconnect electrical power before removing or installing the pump.
- Confirm voltage, cord type, plug style, plumbing size, discharge orientation, and pump model before installation.
- Install the pump on a level, stable equipment pad with proper drainage.
- Confirm suction and return plumbing align correctly with the side-discharge pump layout.
- Fill the pump trap housing with water before startup to help prime the pump.
- Check for leaks at unions, fittings, trap lid, drain plugs, and plumbing connections.
- Verify proper water flow after installation.
- Electrical work should be performed according to local code by a qualified professional where required.
Related Products
- Waterway SD-10-1-N Hi-Flo II Above Ground Pool Pump with 3' NEMA Cord
- Waterway SD-10-2-N Hi-Flo II 2-Speed Above Ground Pool Pump
- Waterway 310-6500 6" Pump Trap Assembly
- Waterway 310-5400 6" Pump Trap Assembly, 1.5" x 1.5"
- Waterway 319-4100 6" Easy-Lock Trap Lid
- Waterway 319-2170 6" Trap Body
- Waterway 805-0436B O-Ring for 6" Trap Lid
- Waterway 520-5147-6S ClearWater II 100 sq ft A/G Cartridge Filter System with 1.5HP Pump
Maintenance Tips
- Clean the pump basket regularly to maintain proper water flow.
- Inspect the trap lid O-ring for flattening, cracking, swelling, or leaks.
- Keep the filter clean to reduce pump strain and improve circulation.
- Check pump unions, plumbing fittings, and drain plugs for leaks during routine service.
- Do not run the pump dry.
- Listen for unusual noise, vibration, or bearing sounds that may indicate service is needed.
- Winterize the pump properly in freeze-prone conditions.
