Unicel Replacement Filter Cartridge 145 sf Jandy CL580 | C-7482
Unicel
SKU: C-7482

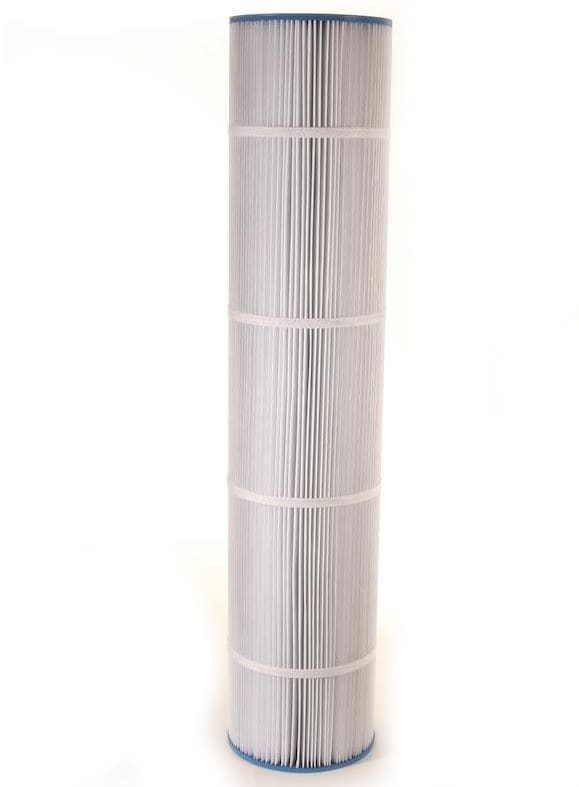

Unicel C-7482 Replacement Cartridge Filter – 145 Sq Ft (Fits Jandy CL580 / CV580)
The Unicel C-7482 is a premium 145 sq ft replacement cartridge filter designed for select Jandy cartridge filter systems, including the CL580 and CV580. It features open ends with a 3" inside diameter on both the top and bottom for proper fit on compatible standpipe-style filter canisters.
Key Features
- 145 sq ft filtration area for strong water clarity and long run times between cleanings
- Open top & open bottom design (3" ID) for compatible standpipe sealing
- Durable pleated media built for repeated cleaning cycles
- Ideal replacement when the original cartridge is torn, flattened, or no longer cleans up effectively
Specifications
- Part Number: C-7482
- Filtration Area: 145 sq ft
- Length: 33"
- Outside Diameter: 7"
- Top End Cap: Open
- Top Inside Diameter: 3"
- Bottom End Cap: Open
- Bottom Inside Diameter: 3"
- Pleat Count: 180
Compatible With
- Jandy: CL580, CV580
Replaces / Cross References
- Jandy: A0104100, R0357900
- Pleatco: PJAN145
- Filbur: FC-0820
- Aladdin: 24501
When to Replace
- Pressure rises quickly after cleaning or circulation remains restricted
- Pleats are torn, frayed, or separating from the end caps
- End caps are cracked/warped or the inner core is collapsing
- Water stays cloudy even with proper chemistry and routine cleaning
Related Products
- Unicel C-7482 (Shop / Options)
- Jandy CL/CV Filter Tank O-Rings & Gaskets
- Cartridge Filter Cleaner
- Cartridge Cleaning Wands
- Filter Pressure Gauges
- Silicone Pool Lube (for O-rings)
Maintenance Tips
- Clean the cartridge when pressure rises about 8–10 PSI above your clean starting pressure (or when flow drops).
- Rinse between pleats from top to bottom and rotate the cartridge as you clean for a more thorough rinse.
- Deep clean periodically to remove oils; if scale is present, degrease first, then treat for scale and rinse thoroughly.
- Inspect and lightly lubricate tank O-rings with silicone lube during service to help maintain a consistent seal.
