Unicel Hayward C3025/C3030 | C-7483-4
Unicel
SKU: UNFC74834

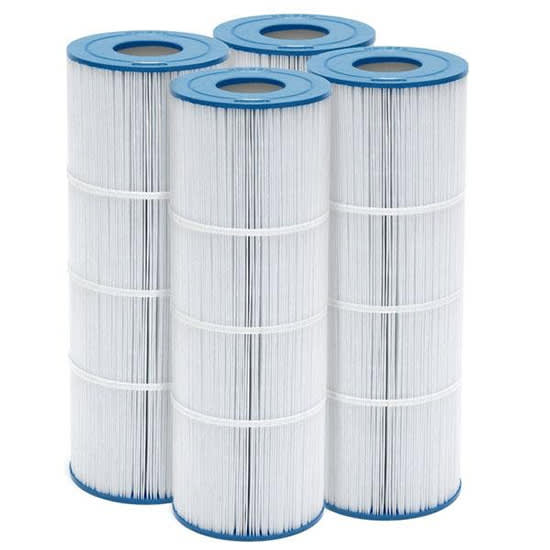

Unicel C-7483-4 Cartridge Filter Set – 4 Pack, 81 Sq Ft Each (Fits Hayward SwimClear C3025 / C3030)
The Unicel C-7483-4 is a complete 4-pack of replacement cartridge elements designed for select Hayward SwimClear cartridge filter systems that use four matching cartridges. Each cartridge provides 81 sq ft of filtration area and uses open ends with molded gaskets to seal on the filter’s internal standpipe, helping maintain strong flow and clear water when cleaned regularly.
Key Features
- Complete set of 4 cartridges (matched elements for multi-cartridge filter tanks)
- 81 sq ft per cartridge (total system area depends on your filter model)
- Open top & open bottom with molded gasket sealing surfaces for proper standpipe sealing
- Durable pleated media designed to capture fine debris while supporting steady circulation
- Ideal replacement when cartridges are torn, flattened, or no longer clean up effectively
Specifications (Each Cartridge)
- Part Number: C-7483 (set part number: C-7483-4)
- Filtration Area: 81 sq ft
- Outside Diameter: 7"
- Length: 19-5/8"
- Top End Cap: Open with molded gasket
- Top Inside Diameter: 3"
- Bottom End Cap: Open with molded gasket
- Bottom Inside Diameter: 3"
- Pleat Count: 176
Compatible Filter Applications
- Hayward SwimClear: C3025, C3030 (commonly uses (4) cartridges)
- OEM Reference: Hayward CX580XRE (verify by measurements and end-cap style)
Replaces / Cross References
- Pleatco: PA81
- Filbur: FC-1225
When to Replace
- Filter pressure rises quickly after cleaning or circulation remains restricted
- Pleats are torn, frayed, or separating from the end caps
- End cap gasket areas are cracked/warped or won’t seal consistently
- Water clarity doesn’t improve despite proper chemistry and routine cleaning
Related Products
- Unicel C-7483 Single Cartridge (Individual)
- Hayward SwimClear Tank O-Rings & Gaskets
- Cartridge Filter Cleaner
- Cartridge Cleaning Wands
- Filter Pressure Gauges
- Silicone Pool Lube (for O-rings)
Maintenance Tips
- Clean cartridges when pressure rises about 8–10 PSI above your clean starting pressure (or when flow drops).
- Rinse between pleats from top to bottom and rotate the cartridge as you clean for a more thorough rinse.
- Deep clean periodically to remove oils; if scale is present, degrease first, then treat for scale and rinse thoroughly.
- Inspect and lubricate tank O-rings lightly with silicone lube during service to help maintain a consistent seal.
