Intermatic T40004R 125 Amp Pool & Spa Load Center with T104M Mechanical Timer

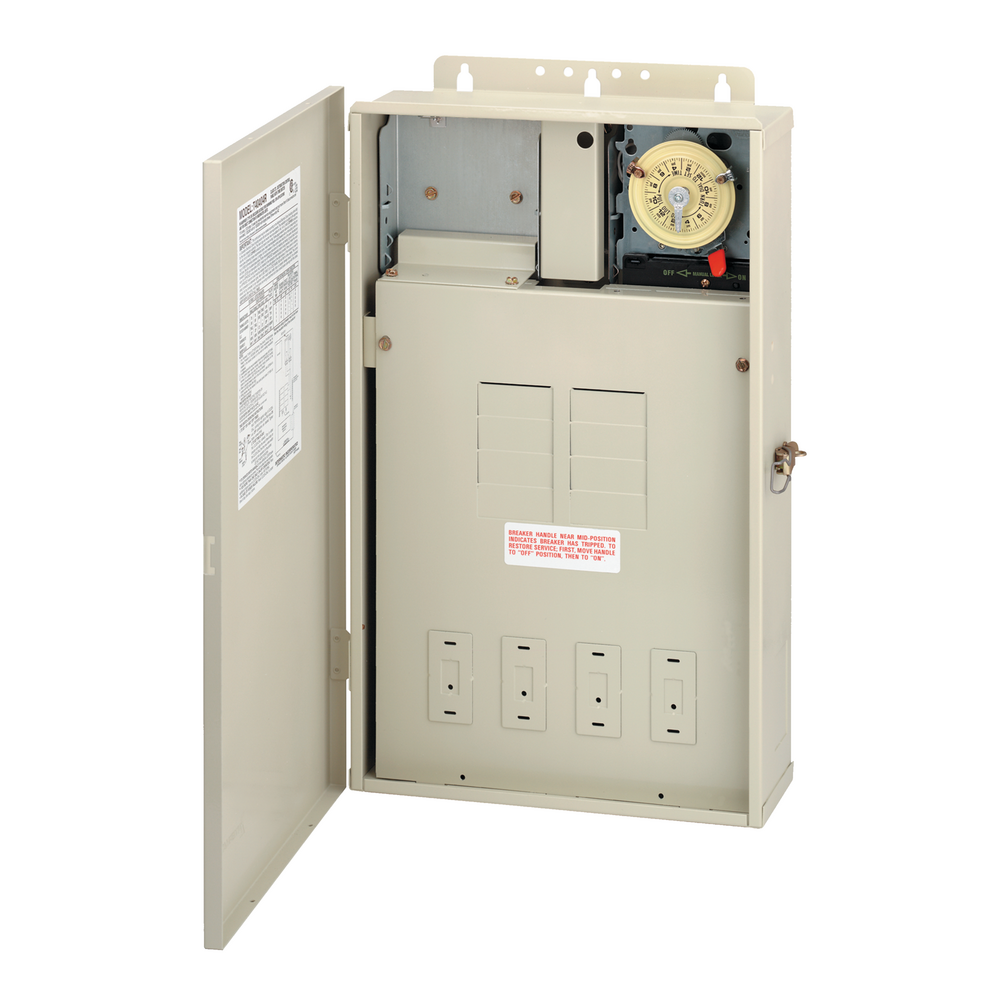

The Intermatic T40004R Pool & Spa Control Panel is a heavy-duty 125 amp electrical load center designed to provide centralized power distribution and automatic equipment control for residential and commercial swimming pools and spas. Featuring eight circuit breaker spaces and one factory-installed T104M 240V mechanical timer mechanism, this combination panel simplifies pool equipment wiring and daily pump scheduling.

Housed in a durable Type 3R outdoor-rated metal enclosure, the Intermatic T40004R combines electrical distribution and mechanical timer control in one convenient installation. The integrated design can reduce the need for separate electrical panels and timer enclosures while allowing expansion with additional compatible Intermatic control mechanisms.

Product Features

• 125 Amp Load Center: Provides electrical distribution capacity up to 125 amps for compatible pool and spa installations.
• 8 Circuit Breaker Spaces: Accommodates approved circuit breakers for multiple pool and spa equipment circuits.
• Includes T104M Mechanical Timer: Factory-installed 240V mechanical time switch for automatic equipment scheduling.
• 40 Amp Timer Contacts: Heavy-duty DPST switching mechanism for compatible equipment loads.
• 24-Hour Mechanical Scheduling: Allows automatic daily ON/OFF operation of connected equipment.
• Type 3R Outdoor Enclosure: Beige metal cabinet designed for indoor or outdoor installation in approved locations.
• Expandable Control System: Accepts additional compatible Intermatic timer mechanisms and control devices.
• Convenient Wiring Configuration: Multiple conduit knockouts provide flexible installation options.
• Switch and GFCI Openings: Dead front includes provisions for compatible wiring devices using appropriate mounting accessories.
• Integrated Control Solution: Combines timer operation and electrical distribution in a single enclosure.

Product Specifications

• Manufacturer: Intermatic
• Manufacturer Part Number: T40004R
• Product Type: Pool & Spa Electrical Load Center with Mechanical Timer
• Load Center Rating: 125 Amps Maximum
• Load Center Voltage: 120/240V AC, Single Phase
• Frequency: 60 Hz
• Circuit Breaker Spaces: 8
• Included Timer Mechanism: (1) Intermatic T104M
• Timer Mechanism Voltage: 240V AC, 60 Hz
• Timer Switch Type: Double Pole Single Throw (DPST)
• Number of Included Timer Circuits: 1
• Timer Scheduling: 24-Hour Mechanical
• Resistive Load Rating: 40A at 120–240V AC
• Inductive Load Rating: 40A at 120–240V AC
• Motor Rating at 120V: 2 HP, 24 FLA
• Motor Rating at 240V: 5 HP, 28 FLA
• Pilot Duty Rating: 1000 VA at 120–240V AC
• Enclosure Rating: Type 3R
• Enclosure Material: Metal
• Color: Beige
• Height: 20.875 Inches
• Width: 12.875 Inches
• Depth: 4.75 Inches
• Operating Temperature: -40°F to 130°F
• Certification: cCSAus
• Manufacturer Warranty: 1-Year Limited
• UPC: 078275755017

Common Applications

• Swimming pool pump electrical distribution and timer control
• Residential and commercial pool equipment installations
• Spa equipment electrical control panels
• Pool filter pump scheduling
• Pool lighting circuit distribution
• Pool heater electrical supply circuits
• Water feature and auxiliary equipment circuits
• Pool equipment pad electrical upgrades and renovations

Included Intermatic T104M Mechanical Timer

The T40004R includes one Intermatic T104M 240V Mechanical Time Switch Mechanism. This heavy-duty timer provides automatic daily scheduling for compatible pool pumps and other electrical equipment.

The timer uses a traditional 24-hour rotating dial with adjustable ON and OFF trippers. It also features a manual override lever that allows connected equipment to be switched without changing the programmed schedule.

• 24-hour repeating mechanical schedule
• 240V AC timer motor
• Double-pole, single-throw switching
• 40 amp resistive and inductive load rating
• Adjustable ON and OFF timer trippers
• Manual equipment switching capability
• Compatible with approved Intermatic T100 Series replacement components

Expandable Pool Equipment Control

The Intermatic T40004R is designed to accommodate additional compatible Intermatic control mechanisms, allowing the electrical panel to be configured for various pool and spa equipment installations.

Depending on available mounting space, electrical capacity, and installation requirements, compatible mechanisms may include:

• Intermatic T100M Series mechanical timer mechanisms
• Intermatic PF1000M Series control mechanisms
• Intermatic P1403ME mechanisms
• Intermatic P1353ME mechanisms
• Intermatic P4043ME mechanisms
• Intermatic P4243ME mechanisms
• Intermatic RC2000M Series control mechanisms

Additional mechanisms, breakers, switches, GFCI devices, and mounting accessories are sold separately unless otherwise specified.

Related Intermatic Replacement Parts and Accessories

Maintain or expand your Intermatic pool equipment control system with these related products available from Aqua Pool Supply.

• Intermatic T104M – 240V Mechanical Timer Replacement Mechanism – Genuine replacement timer mechanism for the factory-installed T104M control.
• Intermatic 156T1978A – Mechanical Timer ON/OFF Trippers – Replacement timing trippers for compatible T100 Series mechanical timers.
• Intermatic 21T156A – Wiring Device Mounting Standoffs, 4-Pack – Mounting accessories used to install compatible switches and wiring devices inside Intermatic pool and spa control panels.
• Intermatic 124T1952 – T100 Series Timer Insulator Cover – Replacement electrical terminal insulator for compatible mechanical timer mechanisms.

Related Intermatic Pool & Spa Control Panels

Looking for a different pool control center configuration? Compare these related Intermatic products:

• Intermatic T30004R – 100 Amp Pool & Spa Load Center with T104M Timer – Alternative load center with a 100 amp rating and eight breaker spaces.
• Intermatic T10004RT3 – Pool Control Panel with T104M Timer & 300W Transformer – Alternative control center for applications requiring an integrated timer and low-voltage transformer.

Installation Information

The Intermatic T40004R is intended for permanent electrical installation in accordance with manufacturer instructions and applicable electrical codes.

1. Verify the required load center amperage, electrical supply voltage, and equipment load calculations.
2. Select an approved mounting location that provides the required electrical working clearances.
3. Mount the Type 3R enclosure securely according to Intermatic installation instructions.
4. Install only compatible circuit breakers and approved electrical accessories.
5. Complete all grounding, bonding, and electrical connections according to applicable codes.
6. Configure the included T104M mechanical timer for the intended equipment circuit.
7. Set the desired ON and OFF times using the timer trippers.
8. Verify proper panel operation and timer switching before placing the equipment into regular service.

Electrical Safety: Installation should be performed by a qualified electrician familiar with swimming pool and spa electrical systems. Always follow applicable NEC requirements, local electrical codes, and Intermatic installation instructions.

Additional Intermatic Pool Automation Products

Browse our complete Intermatic pool timers, control panels, and replacement parts for additional pool equipment automation components.

Package Includes: One (1) genuine Intermatic T40004R 125 Amp Pool & Spa Load Center with one factory-installed T104M mechanical timer mechanism.

Important: The 125 amp rating applies to the electrical load center, not the individual timer contacts. The included T104M mechanism has a maximum resistive and inductive switching rating of 40 amps. Circuit breakers, additional timer mechanisms, wiring devices, and other optional accessories are sold separately unless specifically included by the manufacturer.
