Raypak 156A D-10 Residential Pool Heater Indoor Drafthood, Indoor Top, 12 lbs | 014358
Raypak
SKU: RAY014358

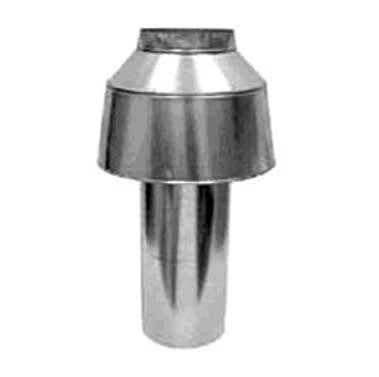

Raypak 014358 – Indoor Drafthood with Adapter for 6″ Stack
Product Overview
The Raypak 014358 is a dedicated drafthood kit designed for indoor installations of Raypak 156 series pool and spa heaters. It includes the adapter necessary for a 6-inch vertical stack vent, enabling proper venting of combustion gases in indoor setups.
Key Features
- Factory replacement drafthood kit specifically for indoor use with Raypak 156 series heaters.
- Includes 6″ top stack adapter to suit common indoor venting configurations.
- Helps ensure safe, efficient exhaust venting of combustion gases when the heater is installed inside or in enclosed spaces.
- Manufactured by Raypak to meet the original specifications for vent performance and safety.
Technical Specifications
- Part Number: 014358
- Vent Size: 6″ stack connection
- Application: Indoor pool/spa heaters (Raypak 156A series and related models)
- Includes: Drafthood with integral adapter for the indoor stack configuration.
Compatibility & Fitment
This drafthood is designed for indoor or enclosed installations of Raypak 156 series pool/spa heaters where the vent must exit vertically through a 6″ stack. Before purchasing, verify your heater model number and vent installation requirements to ensure correct fit and compliance.
Installation Instructions
- Turn off the heater and shut off the gas supply before servicing or modifying venting.
- Verify vent pipe size, direction and clearance meet local code and Raypak venting guidelines.
- Remove existing vent hood or adapter (if applicable) and install the 014358 kit, ensuring proper securement and sealing of flue connections.
- Restore power and gas, then complete a combustion vent test and inspect for proper draft and absence of leaks.
Troubleshooting & Maintenance
- Poor draft or back-drafting: Ensure vent stack is unobstructed, properly sized and connected to the drafthood securely.
- Condensation or discoloration near vent seams: Verify that all joints are sealed, vent pipe is correctly sloped and that termination is installed per guidelines.
- Unusual noise or vibration in vent stack: Inspect for loose connections, pipes unsupported or mounted too close to structural elements.
Maintenance Tip
Inspect the drafthood and vent connections annually during your heater service routine. Check for corrosion, seal integrity and proper fastener tightness. Replacing the drafthood when signs of wear appear helps maintain safe and efficient heater operation.
