Pentair Pump/Filter Lid O-Ring, 8.5" ID | 152509Z
Pentair
SKU: 152509Z

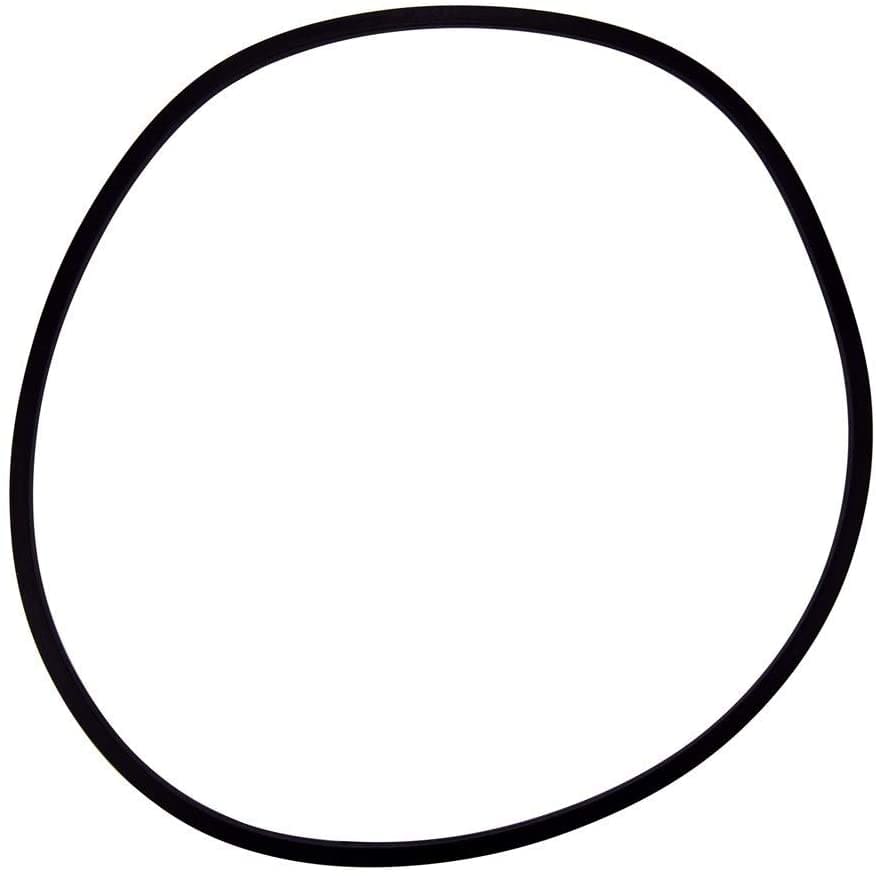

Pentair 152509Z – 8.5″ Square Ring / Lid O-Ring
Product Overview
The Pentair 152509Z is a replacement sealing ring designed for 8.5″ diameter dome closures in select commercial and residential pool filter systems. It ensures a reliable, watertight seal to maintain pressure integrity and avoid leaks.
Key Features
- Specifically fitted for 8.5″ dome-closure lids, square ring style.
- Durable material compatible with pool and spa environments.
- Direct replacement part—ideal when original ring is worn, flattened or leaking.
Technical Specifications
- Part Number: 152509Z
- Fitment: 8.5″ diameter dome closure lids
- Ring Style: Square ring configuration
- Typical Applications: Commercial sand filters (e.g., TR100C/TR140C series) and high-flow pool pumps
Applications & Compatibility
This ring is used where the sealing surface of a dome closure has become compromised, such as flattened, cracked or hardened O-ring surfaces. Commonly compatible with Pentair Challenger high-flow pumps, Triton TR100C and TR140C sand filter units. Before ordering, confirm your lid diameter is 8.5″ and the ring cross-section matches the OEM part.
Installation Instructions
- Shut off the pump and relieve all pressure in the filter or pump housing.
- Remove the old sealing ring and clean the groove and lid sealing surface from any debris or residue.
- Seat the new 152509Z ring into the groove evenly, ensuring no twists or pinches.
- Reinstall the closure lid, tighten per manufacturer specifications, restore circulation and check for leaks around the seal.
Troubleshooting
- Leakage after installation: Ensure the new ring is seated flat and the sealing surface is clean and undamaged.
- Ring slips or deforms: Confirm that the correct ring size (8.5″) was used and that the groove is not worn or damaged.
- Pressure spikes or abnormal operation: Check that the closure lid is properly tightened, the ring is not damaged, and the system has been bled of air.
Maintenance Tip
Inspect the sealing ring at each season’s opening. If the ring shows flattening, cracks or discoloration, replace it promptly. A proper seal helps maintain efficiency, prevents leaks, and prolongs the life of your filter system.
