Pentair Pressure Gauge Rear Mount W/ Indicator | 190059Z
Pentair
SKU: 190059Z

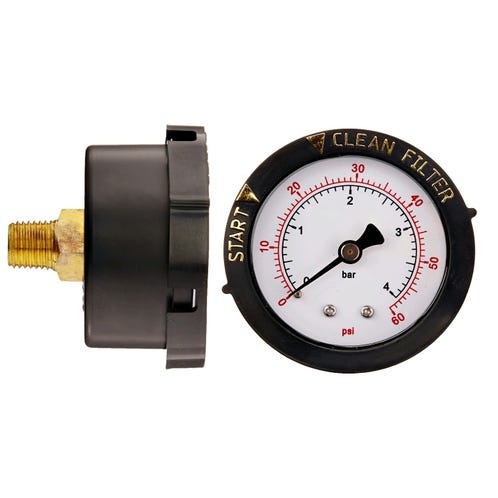

Pentair 190059Z Rear-Mount Pressure Gauge with Clean/Dirty Indicator (0–60 PSI)
The Pentair 190059Z is an OEM rear-mount pressure gauge used on many Pentair and Sta-Rite pool filter systems and select Hi-Flow multiport valves. It features an easy-to-read 0–60 PSI scale and a clean/dirty indicator ring so you can quickly mark your “clean starting pressure” and know when it’s time to backwash or clean the filter.
Key Features
- Range: 0–60 PSI
- Mount: Rear/back mount (threads on the back of the gauge)
- Indicator: Adjustable “clean/dirty” marker ring to set your baseline pressure
- Use: Monitors filter/valve operating pressure to help schedule cleaning and diagnose flow restrictions
Common Compatibility (Verify by Model / Parts Diagram)
- Pentair Sand Dollar sand filters
- Pentair Tagelus sand filters
- Pentair Triton II sand filters
- Pentair Meteor sand filters (including select top-mount configurations)
- Pentair FNS / FNS Plus D.E. filters
- Pentair Nautilus / Nautilus Plus D.E. filters
- Pentair / Sta-Rite SM & SMBW 2000/4000 series filters (select models)
- Pentair Star / Star Polymeric filters (select models)
- Sta-Rite Cristal-Flo II high-rate sand filters (select models)
- Select Hi-Flow multiport valves that use a rear-mount gauge port
Pressure gauge ports can vary by generation and valve/filter body. Confirm the gauge style (rear mount) and thread type on your existing gauge and parts diagram before ordering.
How to Use the Indicator Ring
- After cleaning/backwashing, run the system and note the stable reading.
- Rotate the indicator ring to mark that reading as your clean baseline.
- Clean/backwash again when pressure rises about 8–10 PSI above your baseline (or per your equipment manual).
Installation Notes
- Shut off the pump and relieve all pressure before removing the old gauge.
- Inspect the gauge port and sealing surface; clean away debris/scale.
- Use an appropriate thread sealant for pool equipment (avoid over-applying so it doesn’t enter the plumbing path).
- Tighten snugly—do not over-tighten, which can crack plastic ports.
- Verify there are no leaks after restart and that the needle moves smoothly with pump operation.
Troubleshooting Tips
- Reads 0 all the time: Gauge may be clogged, failed, or installed in a blocked port.
- Needle jumps/shakes: Air in the system, pump cavitation, or a failing gauge mechanism.
- High pressure: Dirty filter, closed/partially closed valves, return restriction, or clogged plumbing.
- Low pressure: Suction-side air leak, clogged pump basket/impeller, or pump performance issue.
Related Products (Aqua Pool Supply)
- Pentair 190059Z Pressure Gauge (Search)
- Pentair Sand Dollar Filter Parts (Search)
- Pentair Tagelus Filter Parts (Search)
- Pentair Triton II Filter Parts (Search)
- Pentair FNS Plus Filter Parts (Search)
Maintenance Tips
- Record your clean starting pressure each season—pressure trends can reveal developing restrictions.
- If the gauge face fogs, sticks, or reads inconsistently, replace it to avoid misleading service decisions.
- Always bleed air from the filter after service to stabilize pressure readings.
- Protect equipment from freezing—ice expansion can crack ports and damage gauges.
