Pentair Com Port Expansion Module | 520818

Pentair SKU: 520818

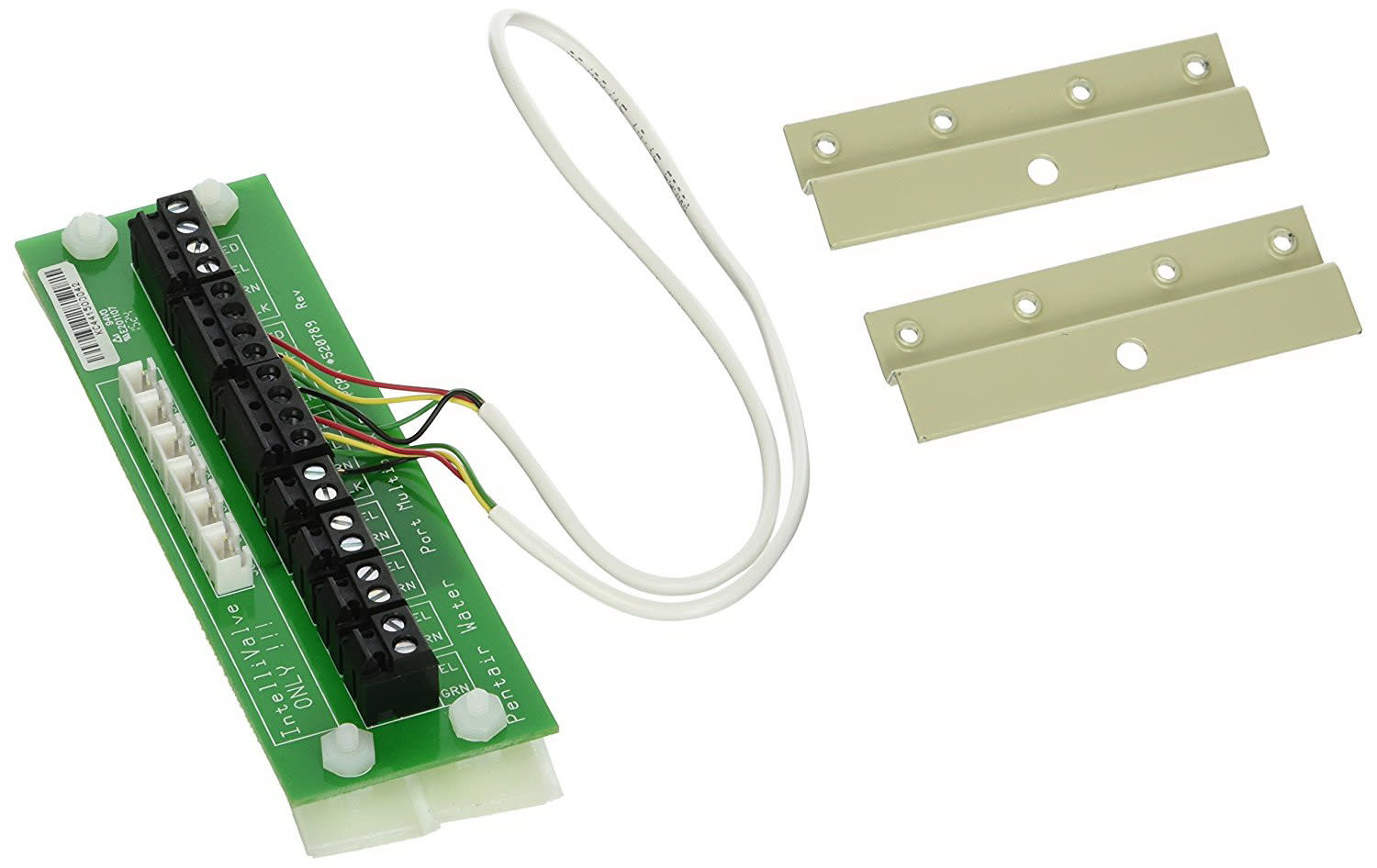

Pentair Com Port Expansion Module | 520818 - Pool Automation - img - 1

Pentair Com Port Expansion Module | 520818

Pentair SKU: 520818
  • In stock, ready to ship
  • Inventory on the way
$99.99
Instant Savings: $20
/
🕒 Order within -- hrs and -- min  for same-day shipping!
Questions about returns? View our return policy.
Free US Shipping - Shipping Policy

Pentair Serial COM Port Expansion Board Kit (Adds RS-485 Communication Ports) | 520818

The Pentair 520818 is a Serial COM Port Expansion Board kit used to add additional RS-485 communication ports to compatible Pentair pool/spa automation systems. It’s commonly installed when you need more connection points for equipment such as variable-speed pumps, salt systems, heaters, or other RS-485 devices that communicate with the control panel.

Key Features

  • Adds more COM ports: expands available RS-485 connection points for supported automation systems.
  • Helps eliminate “no open COM port” issues: useful when adding devices to an already-populated controller.
  • Clean install: mounts inside the control enclosure using the included brackets and hardware.
  • Includes 12" (1 ft) cable: pre-made interconnect cable to link the expansion board to the automation system.
  • OEM Pentair kit: designed for correct fit, wiring layout, and long-term reliability.

Compatible Systems

  • Pentair EasyTouch automation systems
  • Pentair IntelliTouch automation systems
  • Select ComPool / TimeMaster / LX-10 power center automation applications (where specified)

Tip: Compatibility can vary by system revision and configuration. Confirm your automation model and wiring layout before ordering.

What’s Included

  • (1) Serial COM Port Expansion Board (multi-terminal RS-485 expansion PCB)
  • (1) 12" (1 ft) 4-conductor cable assembly
  • (2) Mounting brackets
  • (4) Mounting screws

Common Uses

  • Adding a second (or additional) RS-485 device when all existing COM ports are already in use
  • Expanding automation to control more equipment (pump, salt system, heater interface, accessories)
  • Replacing a damaged or corroded COM expansion board inside an automation load center

Installation Notes

  • Power off first: shut off all power to the automation panel at the breaker before opening the enclosure.
  • Mount the expansion board securely with the included brackets and screws to prevent vibration-related connection issues.
  • Route the included cable cleanly and keep low-voltage communication wiring separated from high-voltage conductors when possible.
  • Use correct polarity/terminal labeling for RS-485 connections and tighten terminals securely (loose terminals can cause intermittent comm faults).
  • Automation wiring should be performed by a qualified pool professional or electrician.

Troubleshooting Notes

  • Intermittent communication: check terminal tightness, wire strain, corrosion, and correct RS-485 polarity.
  • No device detected: confirm the device is RS-485 capable, wired to the correct terminals, and enabled/configured in the automation settings.
  • Multiple devices offline: inspect the shared communication bus, look for pinched cables, and verify there are no splices with poor connections.

Related Products

Maintenance Tips

  • Once per season, inspect low-voltage terminals for corrosion and confirm all screws remain snug.
  • Keep the automation enclosure dry and properly sealed to reduce corrosion on boards and terminals.
  • If you service wiring, label each RS-485 cable to prevent mix-ups when adding future devices.
  • Avoid running communication wires tightly alongside high-voltage conductors to reduce interference.
