Pentair A&A Gamma 4 Adjustable Flow In-Floor Pool Cleaning Head, Black | 232204

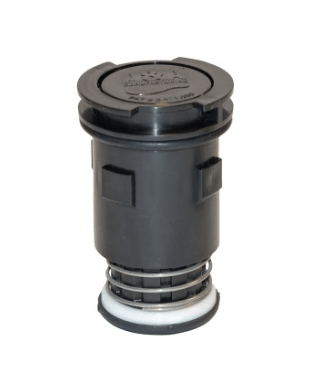

The Pentair 232204 A&A Gamma 4 (G4) Adjustable Flow Cleaning Head is a genuine OEM replacement internal pop-up head designed for compatible Pentair and A&A Manufacturing in-floor swimming pool cleaning systems.

Featuring an adjustable water outlet and black finish, this replacement head helps direct pressurized water across the pool surface to move dirt and debris toward the pool's collection system.

The Gamma 4 internal head is also compatible with specified discontinued Gamma 3 (G3) installations, making it a practical replacement for maintaining older A&A in-floor cleaning systems.

Product Features

• Genuine Pentair OEM: Original manufacturer replacement cleaning head.
• Gamma 4 Compatibility: Designed for compatible A&A G4 in-floor cleaning systems.
• Gamma 3 Replacement: Also fits compatible discontinued G3 cleaning head installations.
• Adjustable Orifice: Allows the water outlet to be adjusted for the cleaning application.
• Black Finish: Coordinates with darker swimming pool surfaces and fittings.
• Rotating Cleaning Action: Directs water across the pool surface as part of the in-floor cleaning system.
• Replaceable Internal: Allows servicing of the cleaning head without replacing the complete floor fitting.
• OEM Replacement: Replaces A&A Manufacturing part number 565618.

Product Specifications

• Manufacturer: Pentair / A&A Manufacturing
• Manufacturer Part Number: 232204
• Original A&A Part Number: 565618
• Product Series: Gamma 4 (G4)
• Product Type: In-Floor Pool Cleaning Head Internal
• Color: Black
• Orifice Type: Adjustable
• Compatible Systems: A&A Gamma 4 and Compatible Gamma 3
• Application: In-Floor Swimming Pool Cleaning
• Installation: Compatible A&A Floor Fitting
• Package Quantity: 1 Internal Cleaning Head

Compatible Pentair and A&A Cleaning Systems

The Pentair 232204 is designed for compatible in-floor cleaning installations using the following cleaning heads:

• A&A Gamma 4 (G4) Adjustable Flow Cleaning Heads
• Compatible Discontinued A&A Gamma 3 (G3) Cleaning Heads
• Pentair In-Floor Cleaning Systems Requiring Part 232204
• A&A Systems Requiring Original Part 565618

Compatibility Notice: The 232204 is an internal cleaning head. It must be installed in a compatible floor fitting. Verify the existing cleaning head series and installation configuration before ordering.

How the Gamma 4 In-Floor Cleaning Head Works

Pentair A&A in-floor cleaning systems use strategically positioned cleaning heads to direct water across the swimming pool floor.

As the system cycles between cleaning zones, the Gamma 4 cleaning heads rise and direct pressurized water along the pool surface.

The water movement helps move dirt, sand, and other settled debris toward the pool's collection system.

When the cleaning zone is inactive, the heads retract into their floor fittings.

Adjustable Water Flow

The Pentair Gamma 4 features an adjustable outlet that allows the water flow opening to be configured for the installation.

Adjusting the outlet can help accommodate different cleaning zone requirements and system operating conditions.

The correct adjustment depends on the pool's hydraulic design, available pressure, and cleaning requirements.

Important: Follow Pentair's adjustment instructions when setting the cleaning head orifice. Improper settings may affect cleaning performance and system water distribution.

When to Replace Your In-Floor Cleaning Head

Replacement may be necessary when the original cleaning head becomes damaged or no longer operates correctly.

• Cleaning head does not rotate or index correctly.
• Head remains stuck in the raised position.
• Cleaning head does not retract properly.
• Water outlet is cracked or damaged.
• Internal components are excessively worn.
• Cleaning performance has decreased due to head damage.
• Original cleaning head is broken or missing.

Troubleshooting: Poor in-floor cleaning performance can also result from clogged plumbing, insufficient water pressure, worn water valve components, or debris around the floor fitting. Inspect the complete system before replacing parts.

Gamma 4 vs. Gamma 4V vs. Gamma 4VHP

Pentair offers several Gamma cleaning head configurations for different hydraulic applications.

• Gamma 4 (G4): Adjustable-orifice cleaning head for compatible standard G4 installations.
• Gamma 4V (G4V): Separate internal cleaning head configuration designed for specified G4V applications.
• Gamma 4VHP (G4VHP): Separate cleaning head configuration for specified high-pressure applications.

Important: These products have different manufacturer part numbers and should not be treated as interchangeable without confirming the system requirements.

Available Gamma 4 Cleaning Head Colors

Pentair manufactures the Gamma 4 adjustable-orifice internal cleaning head in multiple colors to coordinate with different pool finishes.

• 232204: Black
• 232203: Dark Gray
• 232207: Tan
• 232201: White
• 232208: Gold
• 232206: Dark Blue
• 232205: Euro Blue
• 232202: Light Gray

Related Pentair In-Floor Cleaning Parts

Complete your A&A in-floor cleaning system repair with these related products available from Aqua Pool Supply.

• Pentair 232203 – Gamma 4 Adjustable Flow Cleaning Head, Dark Gray – Genuine Pentair G4 internal cleaning head in dark gray.
• Pentair 236770 – G4 / G4V / G4VHP Cleaning Head O-Ring – Replacement sealing O-ring for compatible Gamma in-floor cleaning head installations.
• In-Floor Pool Cleaning Pop-Up Heads – Browse additional cleaning head colors, configurations, and compatible replacements.
• Pentair In-Floor Cleaning Heads, Valves & Parts – Find additional Pentair and A&A cleaning components for system maintenance.

Installation Instructions

1. Turn off the pool circulation and in-floor cleaning system.
2. Prevent the equipment from restarting automatically.
3. Allow the cleaning heads to retract and relieve system pressure.
4. Identify the cleaning head requiring replacement.
5. Remove the existing head using the appropriate Pentair service procedure.
6. Inspect the floor fitting for debris or damage.
7. Verify that part 232204 matches the existing cleaning head configuration.
8. Install the replacement Gamma 4 internal cleaning head.
9. Adjust the outlet according to Pentair's recommendations.
10. Confirm that the head is correctly secured in the floor fitting.
11. Restore system operation and verify normal cleaning head movement.

Maintenance Recommendations

• Inspect cleaning heads periodically for debris and damage.
• Verify that the heads extend and retract correctly.
• Check that the cleaning heads index through their intended movement.
• Remove debris that may interfere with the cleaning head.
• Inspect floor fittings and sealing components when servicing.
• Maintain proper system pressure and water distribution.
• Replace damaged or excessively worn components.

Package Contents

Includes: One (1) Genuine Pentair A&A Gamma 4 Adjustable Flow Internal Cleaning Head, Black | 232204.

Not Included: Floor fitting, color ring, riser pipe, slurry cap, water valve, or complete in-floor cleaning system unless specifically stated in the manufacturer's packaging.

Compatibility: Designed for compatible Pentair A&A Gamma 4 and discontinued Gamma 3 in-floor cleaning systems.
