Paramount White SDX2 Retro Safety Drain for Concrete Pools 004-192-2213-01
Paramount
SKU: 004192221301

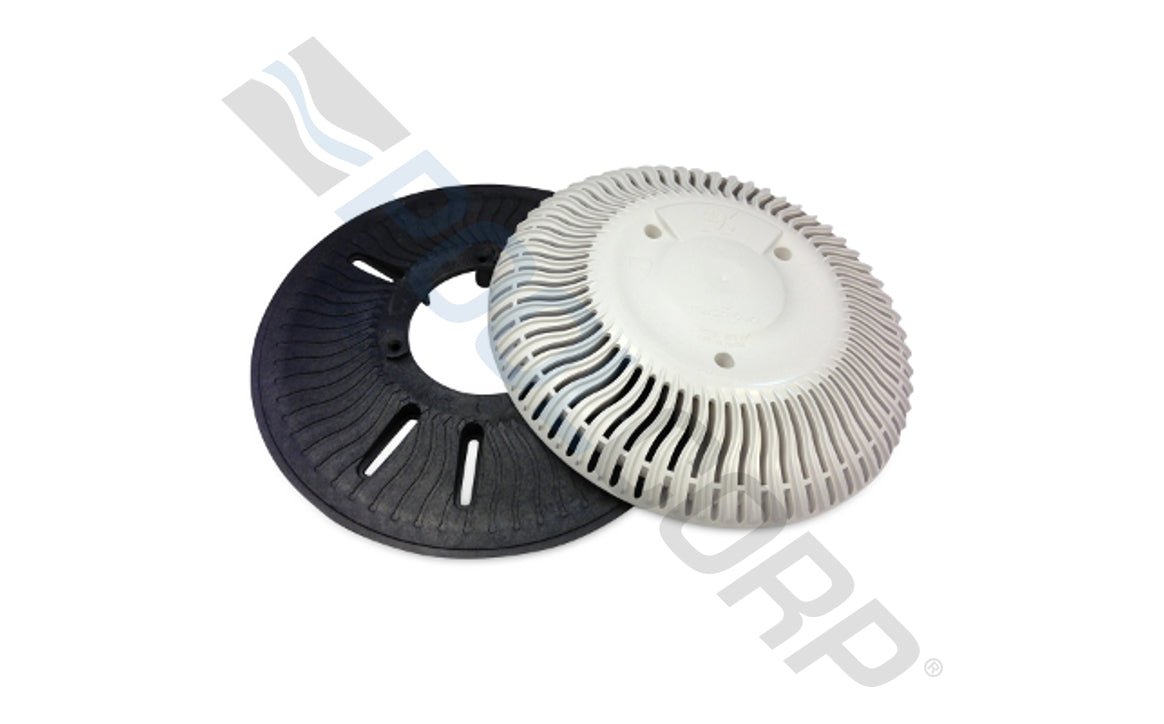

Paramount 004-192-2213-01 White SDX2 Retro Safety Drain for Concrete Pools
The Paramount 004-192-2213-01 White SDX2 Retro Safety Drain is a high-flow suction outlet drain system designed for concrete pools. This retrofit-style SDX2 drain is used to replace or upgrade existing suction outlet covers where a white, concrete-pool SDX2 Retro safety drain is required.
The SDX2 Retro design is intended for existing suction outlets up to 10" in diameter and may be used as a wall fitting or floor drain when installed according to Paramount instructions and applicable suction safety requirements. Always verify pool surface type, existing drain size, plumbing configuration, pump flow, and code requirements before ordering or installation.
Product Features
- Genuine Paramount SDX2 Retro safety drain
- Manufacturer part number: 004-192-2213-01
- Color: White
- Designed for concrete pool applications
- Retrofit design for existing suction outlets up to 10" in diameter where compatible
- High-flow suction outlet design
- Suitable for wall or floor applications where installed correctly
- Anti-vortex shield helps block direct contact with suction
- Dome-shaped cover design helps reduce the chance of swimmer seal
- Ribbed cover design provides multiple smaller flow partitions
- No sump required in many retrofit applications where installed to Paramount instructions
- Designed for VGB-compliant suction outlet upgrades when installed as required
Product Details
| Brand | Paramount |
| Part Number | 004-192-2213-01 |
| Series | SDX2 Retro |
| Product Type | Retro Safety Drain / Suction Outlet |
| Pool Type | Concrete Pools |
| Color | White |
| Retrofit Size | Fits existing suction outlets up to 10" in diameter where compatible |
| Floor Flow Rating | 188 GPM where specified |
| Wall Flow Rating | 154 GPM where specified |
| Application | Pool suction outlet retrofit, safety drain replacement, and wall or floor drain applications |
Compatibility
- Concrete pools requiring a white Paramount SDX2 Retro safety drain
- Existing suction outlet covers up to 10" in diameter where the SDX2 Retro system can be properly installed
- Wall suction outlet applications where SDX2 Retro is approved and correctly installed
- Floor drain applications where debris removal is not the primary concern
- Pool systems where pump flow does not exceed the listed suction outlet flow rating
- Retrofit applications where the included support plate, plugs, screws, fasteners, and spacers can be secured properly
Common Uses
- Replacing worn, damaged, missing, or outdated concrete pool drain covers
- Upgrading older suction outlets to a modern Paramount SDX2 Retro safety drain system
- Retrofitting existing plaster-ring suction outlets
- Wall drain applications where a high-flow SDX2 suction outlet is required
- Pool remodels, resurfacing jobs, and safety drain replacement projects
Important Notes
- This product is intended for concrete pool applications.
- Verify part number 004-192-2213-01, color, pool surface type, and existing drain layout before ordering.
- This is a safety-related suction outlet component and must be installed according to Paramount instructions and all applicable pool safety codes.
- Do not exceed the maximum listed flow rating for the suction outlet.
- Single suction outlet installations may require an approved backup system such as an SVRS or other code-compliant suction safety method.
- SDX2 Retro is a circulation drain and is not intended to remove debris.
- The drain cover, black support plate, slot plugs, security screws, fasteners, and spacers must be installed correctly for proper operation.
- Do not use power tools to overtighten the drain cover or support plate screws.
- Do not install on seating areas or backrests of seating areas.
- If the support plate cannot be securely fastened, stop installation and consult a qualified pool professional.
- Installation should be performed by a qualified pool professional familiar with suction outlet safety requirements.
Installation Notes
- Turn off all power to the pool, spa, and pump system before installation.
- Remove the existing drain cover and inspect the suction outlet, plaster ring, screw holes, and pool surface.
- Confirm the existing outlet is compatible with the SDX2 Retro support plate before installation.
- Select the correct screws, fasteners, and spacers based on the existing ring or sump condition.
- Attach the black support plate securely to the pool or spa surface.
- Install all required slot plugs into the support plate after the plate is secured.
- Attach the drain cover to the support plate using the supplied security screws and tool.
- Hand tighten screws only; do not use power tools.
- Confirm the cover and support plate are secure before returning the system to service.
- Inspect the installed cover regularly for cracks, loose screws, missing plugs, wear, or damage.
Related Products
- Paramount 004-192-2213-01 White SDX2 Retro Safety Drain for Concrete Pools
- Paramount 004-302-4176-03 4-Port 2" Black Water Valve
- Paramount 005-152-2207-00 DDC / EDC Leaf Canister Basket
- Paramount 006-502-4714-01 PoolValet Retro Single Head Kit, White
- Paramount / Hayward 004-552-5020-03 PCC2000 Black Rotating Nozzle
- Paramount / Hayward 004-552-5440-00 PCC Head Removal Tool
- Paramount 004702100100 White Paraskim V Venturi Skimmer Without Lid
- Paramount 004760290207 Beige Paralevel Complete Water Leveler
Maintenance Tips
- Inspect drain covers regularly for cracks, missing screws, damaged slots, loose fittings, or worn components.
- Replace damaged or expired drain covers immediately.
- Keep the drain area clear of leaves, hair, fabric, plastic, toys, and other debris.
- Do not operate the pool or spa if a suction outlet cover is missing, loose, cracked, or damaged.
- Confirm screws remain secure and the cover is seated properly after service or pool cleaning.
- Have suction outlet systems inspected by a qualified pool professional as part of routine safety maintenance.
