Jandy R0445200 Backplate Kit

Part Number: R0445200

Description

This comprehensive backplate kit replaces the pump rear cover assembly for a range of high-performance Jandy circulation pumps. It includes the backplate, mechanical seal components, O-ring, mounting bolts and washers to restore proper sealing and alignment.

Compatibility & Fitment

  • Fits Jandy ePump®, JEP Series and Jandy Stealth®, SHPF/SHPM Series variable-speed pumps.
  • Also compatible with Jandy PlusHP®, PHP Series, WaterFeature® and WaterFall® pump models in the same family.
  • Use this kit when the original backplate is cracked, the mechanical seal is leaking or you're performing a major pump rebuild.

Features & Specifications

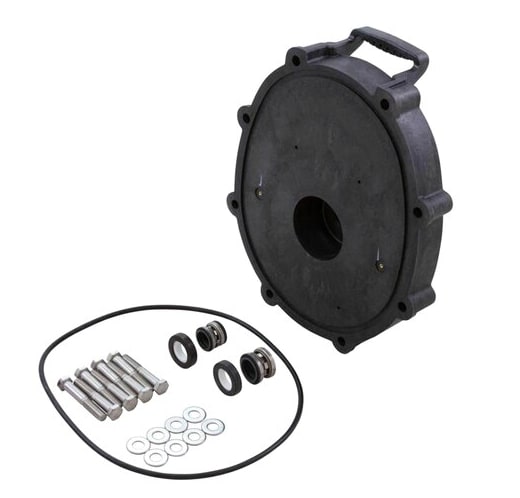

  • Kit includes: backplate housing, ceramic and carbon mechanical seals, O-ring, bolts and washers.
  • Designed with OEM precise fit for optimal pump hydraulic performance and long-term reliability.
  • Manufactured from corrosion-resistant materials suitable for pool chemical environments.

Installation Notes

Turn off power and relieve system pressure. Remove the pump strainer housing, motor bracket and old backplate. Clean the pump cavity and inspect for any damage. Install the new R0445200 backplate, fit the mechanical seal per manufacturer orientation, tighten bolts uniformly, reinstall the motor bracket and strainer lid, restore power and verify leak-free operation and correct pump performance.

Maintenance Tip

During annual pump service inspect the backplate and seal area for coolant or suction leaks, corrosion or wear. Replacing the entire kit at the first sign of failure ensures optimal pump lifespan, avoids repeated service calls, and helps maintain efficient pool circulation.
