Jandy Pro Series Backplate Kit With | R0479500
Jandy
SKU: R0479500

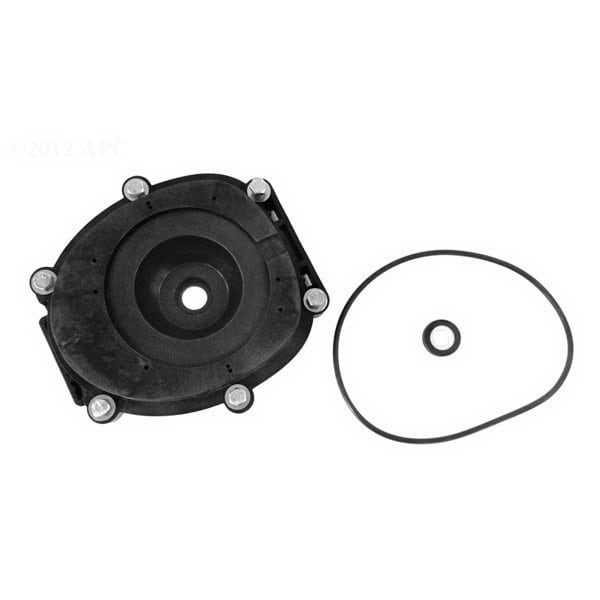

Jandy R0479500 – Backplate Kit for FloPro Pumps
Product Overview
The Jandy R0479500 is a genuine OEM backplate kit designed for use with the FloPro series pumps. This kit replaces the backplate assembly, mechanical seals and hardware, restoring proper sealing and performance in your pump wet-end.
Key Features
- Complete backplate replacement including seal plate, O-ring, ceramic/carbon mechanical seal and mounting hardware.
- Direct OEM replacement for Jandy FloPro (FHPM) pump models—ensures correct fit and performance.
- Helps eliminate leaks around the pump backplate and restore optimal hydraulic performance.
- Heavy-duty construction suited for pool chemical environments and heavy usage.
Technical Specifications
- Part Number: R0479500
- Includes: Backplate assembly, mechanical shaft seal (ceramic/carbon), O-ring, bolts and washers.
- Compatible Equipment: Jandy FloPro (FHPM) series medium head and variable speed models.
- Weight: Approx. 2.9 lb (kit only)
Applications & Fitment
This backplate kit is intended for service on Jandy FloPro pump models where the existing plate is cracked, leaking or otherwise compromised. Before ordering, confirm your pump model number and verify that your wet-end matches the FloPro FHPM or VS-FloPro series. Proper installation restores system integrity and reduces risk of motor or hydraulic damage.
Installation Instructions
- Turn off power to the pump and isolate electrical supply.
- Drain or relieve pressure, then remove the pump wet-end assembly to access the backplate.
- Remove the old backplate, mechanical seal and hardware; clean and inspect the mating surface on the pump housing.
- Install the new backplate along with the new mechanical seal, O-ring and bolts supplied in the kit.
- Reassemble the pump wet-end, restore circulation, and monitor for leaks and proper operation.
Troubleshooting
- Leaks at backplate seam: Ensure the O-ring is seated, surfaces are clean and bolts are torqued evenly.
- Reduced flow or pressure issues: A worn or incorrect backplate can cause bypass; replacing with this kit often restores proper flow.
- Noise or vibration: Verify the mechanical seal seating, alignment of the backplate and that bolts are tightened correctly.
Maintenance Tip
Inspect the backplate and mechanical seal annually during your pump service interval. If you see any signs of seepage, component wear or structural fatigue, replacing with the R0479500 kit proactively prevents downtime and extends pump service life.
