Intermatic 110V Timer Motor | WG1570-10D
Intermatic
SKU: WG1570-10D

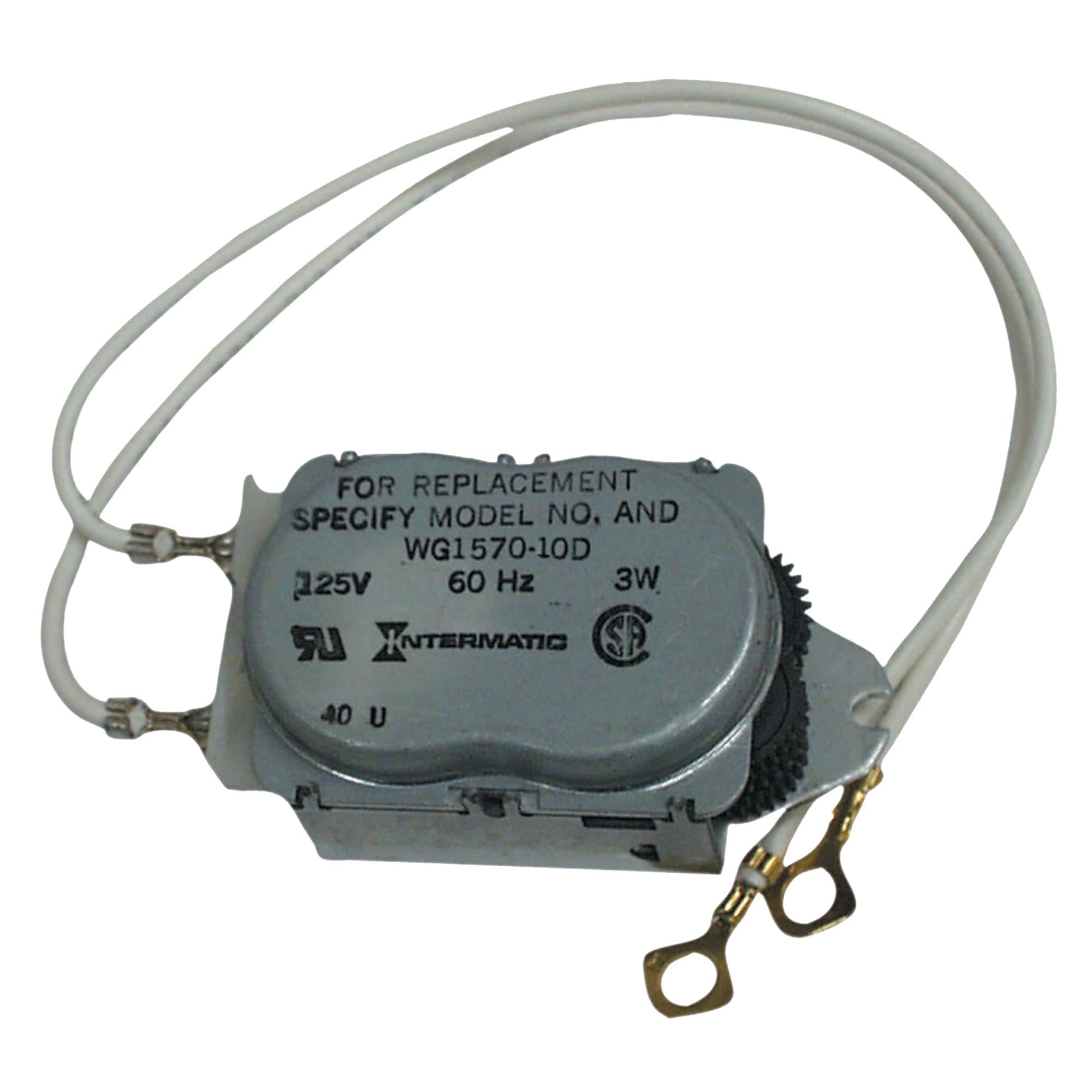

Intermatic WG1570-10D 125V Replacement Time Clock Motor (T100 / T170 Series)
Intermatic WG1570-10D is a genuine 125 VAC, 60 Hz replacement time clock motor used in compatible Intermatic mechanical timer mechanisms. It is commonly used to replace a worn or failed motor in T100/T170 series timer switches, including popular pool timer applications such as T101-style 120V timer setups.
Key Features
- Part Number: WG1570-10D
- Brand: Intermatic
- Product Type: Replacement time clock motor
- Electrical Rating: 125 VAC, 60 Hz
- High-torque replacement motor design
- Fixed tab connectors for slip-on installation to timer connection poles
- Used with compatible Intermatic T100 and T170 series time switches
- Commonly referenced for T101/T103/T105 timer mechanisms (verify exact model before ordering)
- Common replacement for older WG1570 revisions (such as WG1570-3, WG1570-5, WG1570-10)
Applications
Ideal for repairing compatible Intermatic mechanical timers used for pool pumps, outdoor equipment, lighting, and other scheduled on/off control applications where the timer dial stops advancing due to a failed clock motor.
Usage Notes
- Verify timer mechanism model and voltage before ordering (125V motor for 120/125V timer applications).
- Disconnect power at the breaker before servicing any timer mechanism.
- Confirm the timer contacts and mechanism are in good condition when replacing the motor.
- Install using proper wiring/electrical safety practices and manufacturer instructions.
- If your timer is a 208-277V model (such as many T104 setups), this is typically not the correct motor.
Related Products
- Intermatic Timer Motors
- Intermatic Pool Timers
- Pool Timer Replacement Parts
- Intermatic T101 Timer Products
- Intermatic Timer Mechanisms
Maintenance Tips
- Inspect timer enclosures for moisture intrusion, corrosion, and insect debris during service.
- Check that the timer dial advances correctly after motor replacement.
- Tighten terminal connections as needed and inspect for heat discoloration.
- Replace damaged trippers and worn mechanisms if switching performance is inconsistent.
