Hayward Booster Pump Volute | AX6060A
Hayward Products
SKU: HPPAX6060A

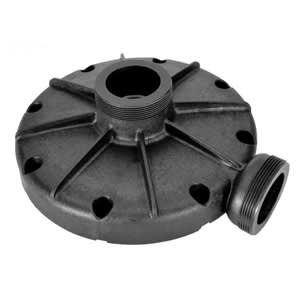

Hayward AX6060A Booster Pump Volute Housing
The Hayward AX6060A is the OEM volute (pump housing) designed for Hayward booster pumps and certain pressure-side pool cleaner booster systems. It forms the main wet-end housing that directs water flow through the pump and into your pool plumbing or cleaner — making it a critical component when your original volute is cracked, leaking, or otherwise damaged.
Key Features
- Official Hayward replacement volute for 6060/5060 booster pumps and compatible pressure-side cleaner pump systems.
- Constructed from durable pool-rated plastic/resin — resistant to chlorinated or salt water and designed for prolonged outdoor exposure.
- Exact OEM fit — ensures correct alignment with motor, shaft, impeller, and plumbing unions when replacing a worn or damaged housing.
- Can be re-oriented in some installations for horizontal discharge to suit different plumbing layouts.
Specifications
- Manufacturer: Hayward Pool Products
- Part Number: AX6060A
- Component: Pump volute (wet-end housing)
- Compatibility: Hayward 6060 & 5060 booster pumps; pressure-side pool cleaners (e.g., Viio Turbo, Viper, Phantom Turbo, or other cleaner models using these booster pumps)
- Material: Pool-rated thermoplastic resin
When to Replace / Use
Use the AX6060A volute when the original housing is cracked, leaking, or has failed — symptoms may include loss of prime, reduced pressure, leaks at the pump wet-end, or inability to maintain flow. Replacing the volute restores proper hydraulic function and extends the life of the pump or cleaning system.
Installation & Maintenance Tips
- Shut off power and drain water before disassembly. Remove the motor and impeller per manufacturer instructions.
- Inspect the shaft, impeller, and seals while disassembled — replacing worn components as needed to prevent leaks or damage.
- Fit the new volute carefully, align unions and plumbing to avoid stress on fittings, and tighten bolts evenly.
- Prime and test the pump after reassembly — check for leaks and proper flow before full operation.
Why Carry This Part
Because the volute is a common failure point — especially on pressure-side booster pumps or older pool systems — stocking AX6060A gives pool owners or service professionals a direct, OEM-grade replacement option. That avoids the need to replace the entire pump or cleaner when only the housing has failed, keeping maintenance costs down and equipment life extended.
