Hayward C200S Filter Diffuser Assembly CXFDA200
Hayward Products
SKU: CXFDA200

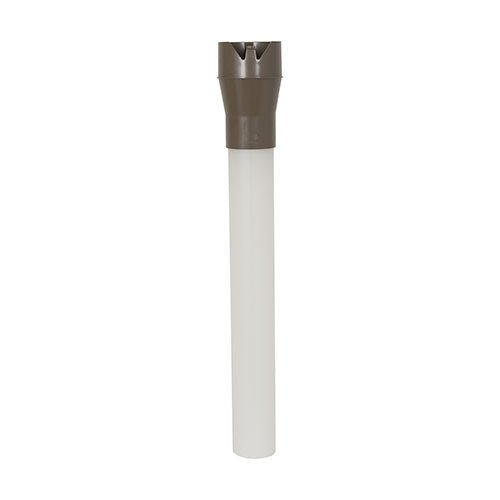

Hayward® CXFDA200 C200S Filter Diffuser Assembly
Hayward CXFDA200 is a replacement diffuser assembly for specified C200S cartridge filters. It services the internal water-distribution component in the filter.
A matched diffuser helps retain the intended internal assembly arrangement. Verify CXFDA200 in the filter’s parts diagram and inspect the surrounding cartridge and housing components while the filter is open.
Product Features
- Hayward cartridge-filter diffuser assembly
- Part number / listing SKU: CXFDA200
- Filter Model: C200S
- Component: Diffuser assembly
Product Details
| Brand | Hayward |
| Part Number / SKU | CXFDA200 |
| Product Type | Cartridge-filter diffuser assembly |
| Filter Model | C200S |
| Component | Diffuser assembly |
Compatibility
- Hayward C200S assemblies specifying CXFDA200
- Confirm the exact model and part number before ordering.
Common Uses
- Replacing a damaged diffuser
- Servicing filter internals
Installation Notes
- Switch off the pump, isolate the system, and fully release filter pressure before opening it.
- Follow the exact filter manual for component positioning and locking/clamping procedures.
- Check seals and retainers, then follow the prescribed air-purging and startup procedure.
Related Products
Maintenance Tips
- Inspect sealing surfaces and locking components during routine service.
- Maintain the filter media and monitor the pressure gauge according to the manual.
- Never operate a filter with damaged pressure-vessel or retaining components.
