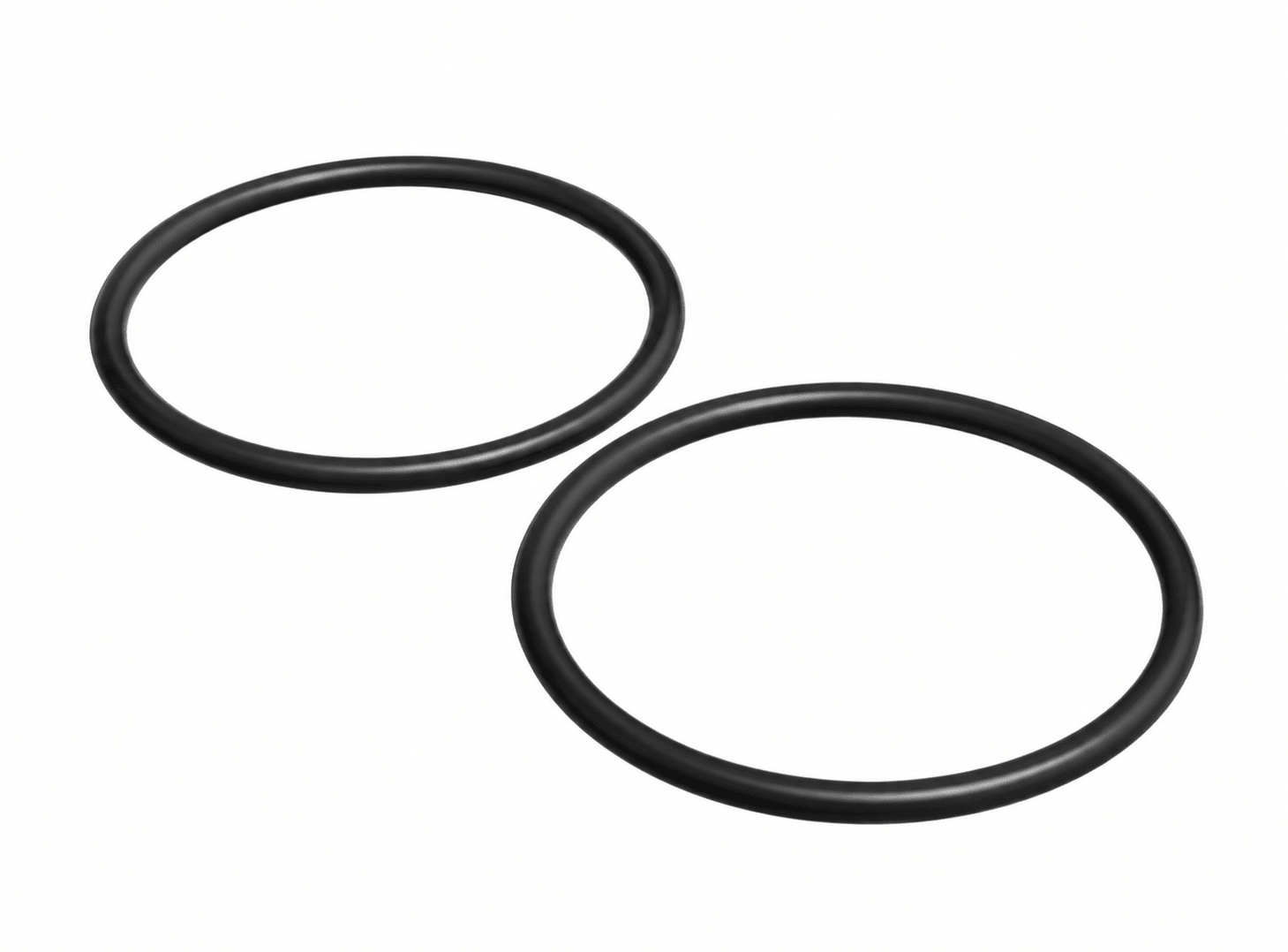

Hayward ED1/ED2 Union O-Ring HAXFOR1930
Hayward Products
SKU: HAXFOR1930
Hayward H-Series Heater Flange O-Rings, Set of 2 | HAXFOR1930
The Hayward HAXFOR1930 Heater Flange O-Ring Set is a genuine OEM replacement sealing kit designed for compatible Hayward H-Series gas swimming pool and spa heaters. This package includes two replacement O-rings used to seal the heater's inlet and outlet plumbing flange connections.
Manufactured to Hayward's original equipment specifications, these O-rings are designed to work with compatible heater flange pipe nipples and union nuts. They provide a replacement for worn, flattened, cracked, or deteriorated original seals that may cause water leaks around the heater plumbing connections.
Product Features
- Genuine Hayward OEM: Original manufacturer replacement flange O-rings.
- Set of Two: Includes two O-rings for compatible heater inlet and outlet connections.
- H-Series Heater Compatibility: Designed for select Hayward ED1, ED2, and induced-draft heater models.
- Watertight Plumbing Connections: Helps seal the connection between the heater header and plumbing flange assemblies.
- Replacement Union Seals: Designed for compatible Hayward heater union fittings.
- Convenient Maintenance Kit: Allows replacement of both inlet and outlet seals during heater servicing.
- OEM Fitment: Manufactured for heater assemblies requiring part number HAXFOR1930.
Product Specifications
- Manufacturer: Hayward Pool Products
- Manufacturer Part Number: HAXFOR1930
- Product Type: Heater Flange / Union O-Ring Set
- Compatible Heater Series: Hayward H-Series
- Compatible Heater Generations: ED1, ED2, and Select Induced-Draft Models
- Application: Heater Inlet and Outlet Plumbing Connections
- Related Flange Pipe Nipples: HAXNIP1930
- Related Union Nuts: HAXNUT1930
- Package Quantity: 2 O-Rings
Compatible Hayward Pool Heaters
The Hayward HAXFOR1930 O-ring set is designed for compatible H-Series gas pool and spa heaters, including select configurations of the following models:
- Hayward H150
- Hayward H200
- Hayward H210
- Hayward H250
- Hayward H300
- Hayward H350
- Hayward H400
- Hayward H-Series ED1 Electronic Ignition Heaters
- Hayward H-Series ED1 Millivolt Heaters
- Hayward H-Series ED2 Electronic Ignition Heaters
- Compatible Hayward H-Series Induced-Draft Heaters
Compatibility Notice: Not every Hayward H-Series heater uses the same flange seals. Verify the heater model, production series, and original O-ring part number before ordering. These O-rings should not be assumed compatible with newer Universal H-Series FD heaters.
What Do Heater Flange O-Rings Do?
The flange O-rings provide a watertight seal at the heater's inlet and outlet plumbing connections. When the union nuts are properly secured, the O-rings seal the connection between the flange pipe nipples and the heater header.
Over time, exposure to heat, water chemistry, and normal operating conditions can cause the original O-rings to lose flexibility or become compressed. Replacing deteriorated seals helps prevent water leaks and maintain proper plumbing connections.
When to Replace Your Heater O-Rings
- Water leaking around the heater inlet or outlet unions
- Original O-rings are cracked or brittle
- O-rings have become flattened or permanently compressed
- Seals are twisted, stretched, or physically damaged
- Heater plumbing connections have been disassembled for repair
- Existing seals no longer fit correctly in their grooves
Troubleshooting: Water leaks at heater unions may also result from cracked flange pipe nipples, damaged union nuts, or deteriorated heater header connections. Inspect all related components before determining which parts require replacement.
Related Hayward H-Series Heater Plumbing Parts
Complete your heater plumbing repair with these related genuine Hayward products available from Aqua Pool Supply.
- Hayward HAXNNO1930 – H-Series Heater Plumbing Kit – Complete plumbing connection kit containing flange pipe nipples, union nuts, and O-rings for compatible Hayward H-Series heaters.
- Hayward HAXHOR1930 – H-Series Heater Header O-Ring – Replacement sealing component for compatible Hayward heater header assemblies. This is a different seal from the HAXFOR1930 flange O-rings.
Additional Hayward Heater Replacement Parts
Looking for replacement flange pipe nipples or union nuts? Browse these related components:
- Hayward HAXNIP1930 – Heater Flange Pipe Nipples, Set of 2 – Replacement pipe nipples for compatible H-Series heater inlet and outlet connections.
- Hayward HAXNUT1930 – Heater Union Nuts, Set of 2 – Replacement union nuts used to secure compatible heater flange pipe connections.
Installation Instructions
- Turn off the pool heater and circulation pump.
- Disconnect electrical power and allow the heater to cool completely.
- Close applicable isolation valves and relieve water pressure from the heater.
- Carefully loosen the heater plumbing union nuts.
- Remove the existing flange O-rings.
- Clean and inspect the flange grooves and mating surfaces.
- Check the flange pipe nipples and union nuts for cracks or other damage.
- Install the new Hayward HAXFOR1930 O-rings in their correct positions.
- Apply a light coating of manufacturer-approved silicone O-ring lubricant if permitted by Hayward's instructions.
- Reconnect and secure the unions according to the manufacturer's specifications.
- Restore water circulation and inspect both connections for leaks before operating the heater.
Installation and Maintenance Recommendations
When replacing heater flange O-rings, inspect the surrounding plumbing fittings for damage. Cracked flange pipe nipples or distorted union nuts may cause leaks even when new O-rings are installed.
Do not use petroleum-based lubricants unless specifically approved for the sealing material. Avoid overtightening plastic union nuts, which can damage the heater plumbing connections.
Package Contents
Includes: Two (2) Genuine Hayward HAXFOR1930 Heater Flange O-Rings.
Important: This listing includes two flange O-rings only. Flange pipe nipples, union nuts, heater headers, and other plumbing components are sold separately.
Compatibility: Designed for compatible Hayward H-Series ED1, ED2, and select induced-draft heaters requiring flange O-ring part number HAXFOR1930. Verify your original part number before purchasing.
Safety: Always turn off the pool pump and heater, allow the equipment to cool, and completely relieve water pressure before disconnecting heater plumbing. Follow Hayward's installation and service instructions.
