Pentair Challenger Diffuser 2HP and 3HP 355545z
Pentair
SKU: 355545Z
Not sure it fits?
See this part on the interactive diagram
Challenger High Pressure Pump
Not sure it fits?
See this part on the interactive diagram
Challenger High Pressure Pump

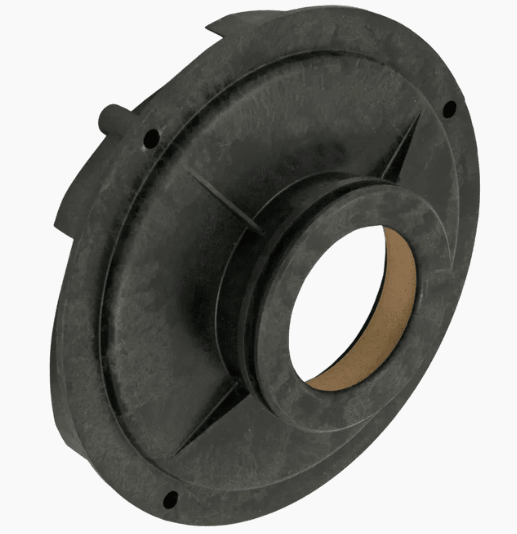

Pentair 355545Z Challenger Pump Diffuser for 2 HP and 3 HP Pumps
The Pentair 355545Z Diffuser is a genuine replacement diffuser used in compatible Pentair Challenger High Pressure pool and spa pumps. The diffuser helps direct water flow from the impeller into the pump volute, supporting proper pressure, flow, and pump performance.
This replacement diffuser is commonly used during Challenger pump rebuilds, impeller replacement, motor service, or repairs where the existing diffuser is cracked, warped, worn, or damaged. A damaged diffuser can reduce flow, create noise, cause poor pump performance, or prevent the pump from operating efficiently.
Product Features
- Genuine Pentair replacement pump diffuser
- Manufacturer part number: 355545Z
- Designed for select Pentair Challenger High Pressure pump applications
- Used with 3 HP full-rated, 2-1/2 HP up-rated, and 2 HP full-rated pump configurations where specified
- Helps direct water flow from the impeller into the pump housing
- Common replacement part during pump rebuilds and impeller service
- Compatible with select WaterFall™ and Challenger pump applications requiring this part number
Product Details
| Brand | Pentair |
| Part Number | 355545Z |
| Product Type | Pump Diffuser |
| Pump Series | Challenger High Pressure |
| Application | Pool and spa pump internal replacement part |
| Common Pump Ratings | 3F, 2.5A, and 2F applications where specified |
| Common Use | Restoring pump flow, pressure, and impeller-to-volute performance |
Compatibility
- Pentair Challenger High Pressure pump models requiring diffuser part number 355545Z
- Challenger 2 HP full-rated applications where the parts diagram calls for 355545Z
- Challenger 2-1/2 HP up-rated applications where the parts diagram calls for 355545Z
- Challenger 3 HP full-rated applications where the parts diagram calls for 355545Z
- Select Pentair WaterFall™ pump applications requiring diffuser 355545Z
Common Signs This Part May Need Replacement
- Pump has reduced water flow or pressure
- Pump is noisy after impeller or motor service
- Diffuser is cracked, warped, melted, or physically damaged
- Pump has been run dry and internal parts show heat damage
- Impeller was replaced and the diffuser shows wear or mismatch
- Pump does not prime or move water properly after other causes have been ruled out
Important Notes
- This item is the diffuser only.
- Impeller, diffuser O-ring, shaft seal, seal plate, motor, housing, basket, lid, and hardware are sold separately unless otherwise stated.
- Verify your exact pump model, horsepower rating, service factor, and parts diagram before ordering.
- For some Challenger High Pressure applications, Pentair notes that diffuser 355545Z should be replaced together with impeller 355604Z.
- This part is not universal for all Challenger pump models or all Pentair pumps.
- If the impeller, seal plate, front housing, or motor shaft is damaged, replacing the diffuser alone may not restore proper pump performance.
Installation Notes
- Turn off power to the pump at the breaker before servicing.
- Relieve system pressure and drain the pump before disassembly.
- Inspect the impeller, diffuser, shaft seal, seal plate, and O-rings during service.
- Replace worn seals and O-rings whenever the pump is opened for repair.
- Make sure the diffuser seats properly over the impeller and aligns correctly with the pump housing.
- Use pool-safe silicone lubricant on O-rings where required.
- Do not use petroleum-based lubricant on rubber seals.
- Prime the pump fully before restarting to avoid dry-run damage.
- After installation, check for leaks, abnormal noise, vibration, and proper water flow.
Related Products
- Pentair 355604Z Challenger 2 HP Full Rate / 2.5 HP Up Rate Impeller
- Pentair 355331Z Challenger Diffuser O-Ring
- Pentair 355329Z Challenger Front Housing O-Ring
- Aladdin GO-KIT5 Seal Kit for Pentair Challenger Pump
- U.S. Seal PS-200 5/8" Pump Shaft Seal
- Pentair 355318Z Challenger Plastic Strainer Basket
- Pentair 355300Z Black Challenger NPT Strainer Pot
Maintenance Tips
- Keep the pump basket clean to reduce strain on the pump and internal components.
- Do not allow the pump to run dry, as heat damage can warp the diffuser and impeller.
- Inspect the diffuser and impeller whenever replacing a motor or shaft seal.
- Replace worn O-rings and seals during pump rebuilds to help prevent leaks and air intrusion.
- Maintain proper water level and clear suction lines to help prevent cavitation and loss of prime.
- Address unusual pump noise, vibration, or flow loss quickly to help prevent additional pump damage.
