Century Pool Pump Motor 2HP 1 Phase 60Hz 230V 56Y Frame | B2748
Century
SKU: CRMB2748

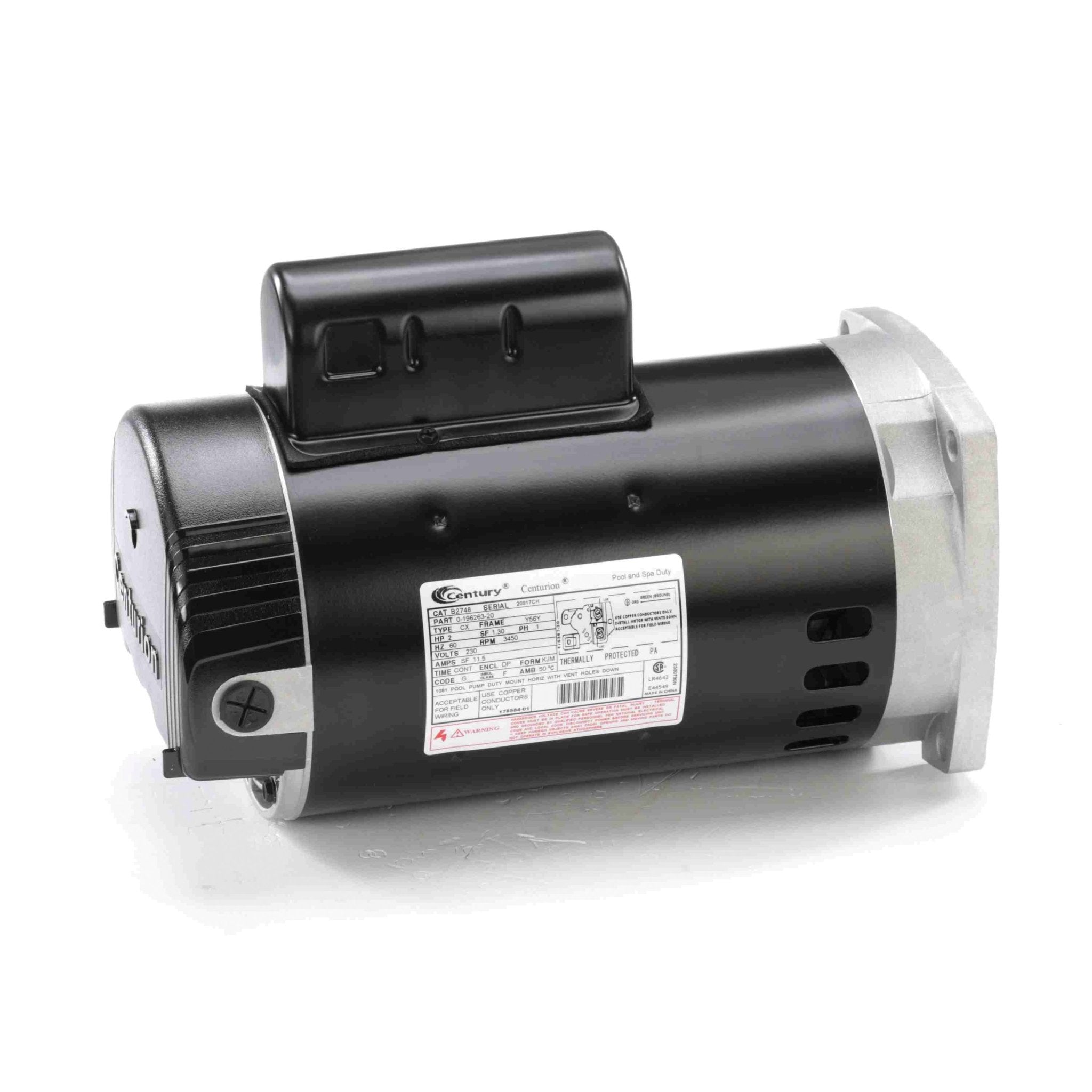

Century B2748 2 HP Square-Flange Pool Pump Motor
Part Number: B2748
Description
A heavy-duty 2 HP full-rated replacement motor designed for in-ground pool pump systems requiring a square-flange mounting, 3450 RPM speed, 230 V supply and 56Y frame. Engineered to deliver robust performance for full-rate applications such as high-flow pumps or retrofits.
Compatibility & Fitment
- Fits pump systems originally equipped with a 2 HP, full-rated motor requiring 230 V, single-phase, square-flange mount, 56Y frame.
- Use when the existing motor is noisy, drawing excessive current, shows bearing failure or you’re performing a full motor replacement.
- Drop-in replacement for installations specifying part number B2748.
Features & Specifications
- Horsepower: 2.0 HP (full-rated).
- Speed: 3450 RPM, single-speed.
- Voltage: 230 V, 1-phase.
- Frame: 56Y square-flange mount.
- Shaft: threaded stainless steel, standard pool pump mount configuration.
- Service Factor: 1.30; Full Load Amps: ≈ 11.5 A.
- Designed with sealed ball bearings, open drip-proof enclosure and durable construction for continuous pool service.
Installation Notes
Turn off power and lock out the circuit before servicing. Remove the pump housing and old motor, disconnect wiring and note original connections. Mount the new B2748 motor to the pump housing using square-flange bolts, align shaft, connect wiring per nameplate, restore power and verify correct rotation and current draw. Monitor initial operation for vibration, noise or excessive amps.
Maintenance Tip
At each seasonal service interval inspect bearings for noise, shaft seal for leaks, and verify current remains within specification. Replace the motor if you observe sustained overheating, abnormal noise or failure to reach full pump flow—keeping the drive system reliable and your pool healthy.
