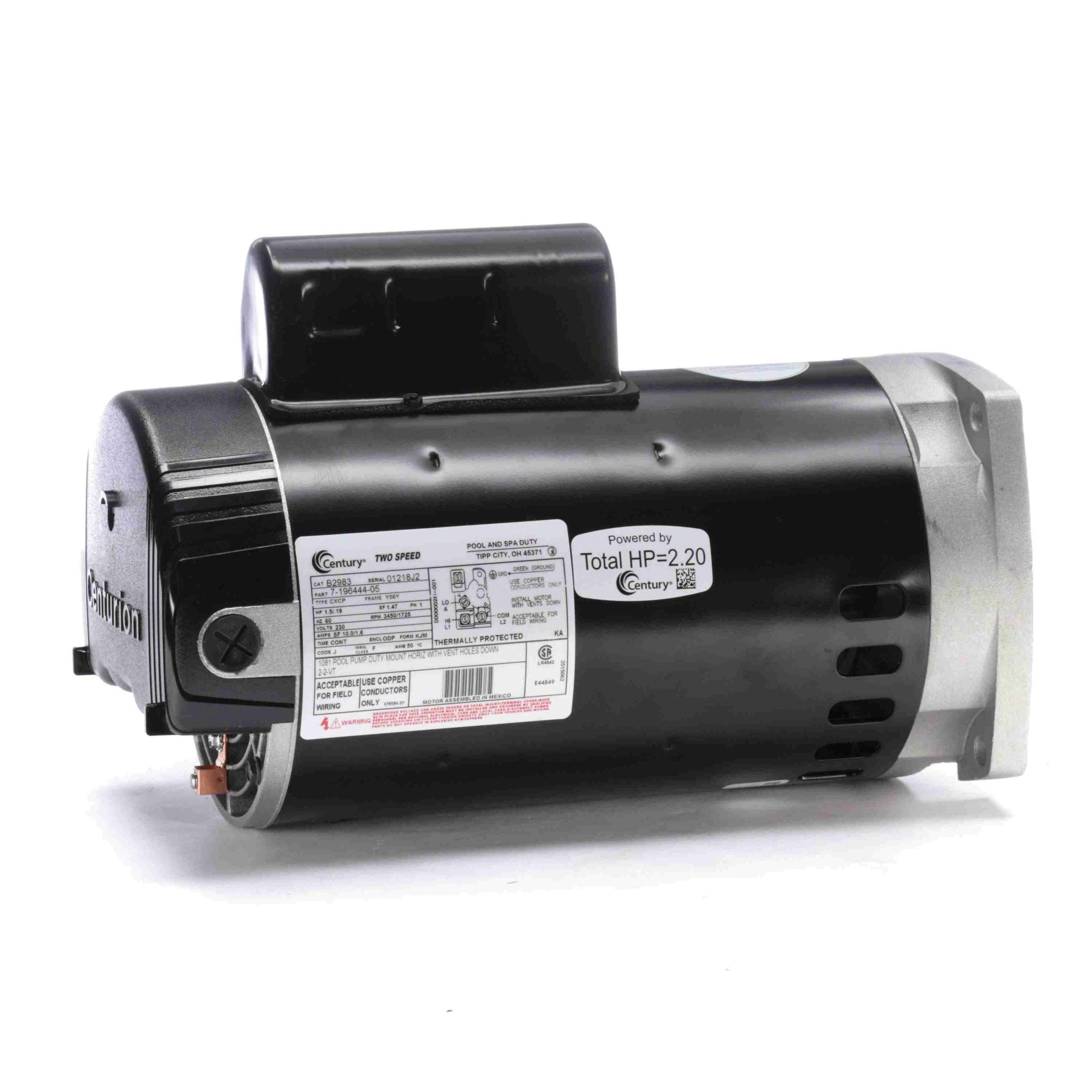

Century Pool Pump Motor 1.5HP 2-Speed 1 Phase 60Hz 230V 56Y Frame | B2983
Century
SKU: CRMB2983
Century B2983 – 1.5 HP 2-Speed Square Flange Pool & Spa Motor
Product Overview
The Century B2983 is a full-rated, two-speed replacement motor designed for in-ground pool and spa pumps. With a 56Y square flange frame and dual speed capability, it offers both high-speed performance and low-speed economy in a single unit.
Key Features
- 1.5 HP high speed / 0.19 HP low speed operation for flexibility in pump control.
- Frame: 56Y square flange mounting, compatible with many common pump brands.
- Voltage: 230 V single-phase; dual speed (3450/1725 RPM typical) for high and low performance modes.
- Full-rated service factor (1.47), sealed ball bearings, stainless steel shaft and thermally protected motor design.
Technical Specifications
- Part Number: B2983
- Horsepower: 1.5 HP (high speed) / 0.19 HP (low speed)
- Voltage: 230 V single-phase
- Frame: 56Y, square flange mounting
- Speeds: 3450 RPM (high) / 1725 RPM (low)
- Service Factor: 1.47
- Mounting: Square Flange (threaded shaft), sealed bearings
Applications & Compatibility
This motor is ideal for replacing older or worn motors on pool pumps that use a 56Y square flange motor mount. It’s especially suited for in-ground pump systems that call for a two-speed option—high speed for full flow and low speed for quieter, energy-saving operation. Before purchase, verify mounting type, shaft configuration, electrical rating and pump model compatibility.
Installation Instructions
- Turn off main power to the pool pump and lock out the circuit before servicing.
- Drain or relieve pump housing pressure, disconnect the wiring according to motor wiring diagram.
- Remove the old motor, keeping the same mounting configuration and note shaft spacing and alignment.
- Mount the new B2983 motor using the square flange holes, ensure shaft engages pump coupling correctly.
- Wire the motor per label instructions for desired speed (high or low), restore power and test operation in both modes.
Troubleshooting
- Motor fails to start: Verify correct wiring, check capacitor (if applicable), ensure correct voltage supply.
- Pump vibration or noise: Confirm shaft alignment, pump impeller clearance, tight mounting bolts and balanced rotor.
- Low flow on low speed mode: Ensure plumbing and filter are clean, pump impeller is sized appropriately for low-speed operation.
Maintenance Tip
Check motor mounting bolts, pump alignment and cleanliness annually. Lubricate any required parts if applicable, ensure motor is ventilated and free of debris. Replacing worn bearings or coupling during motor changeover helps protect the new B2983 from premature wear.
