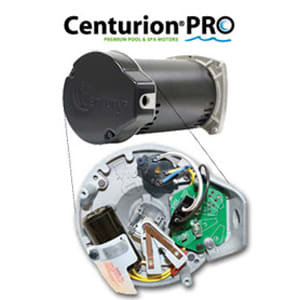

Century Centurion Pro Pool Pump Motor, Square Flange, 1HP 115/230V 48Y | HSQ125

Century SKU: CRMHSQ125
Century Centurion Pro Pool Pump Motor, Square Flange, 1HP 115/230V 48Y | HSQ125 - Pool Pump Motors - img - 1

Century Centurion Pro Pool Pump Motor, Square Flange, 1HP 115/230V 48Y | HSQ125

Century SKU: CRMHSQ125
  • In stock, ready to ship
  • Inventory on the way
Instant Savings: $50
/
🕒 Order within -- hrs and -- min  for same-day shipping!
Free US Shipping - Shipping Policy

Century HSQ125 Centurion Pro 1.25 HP 115/230 V Motor

Part Number: HSQ125

Description

A high-quality square-flange pool/spa pump motor from Century’s Centurion Pro series. Rated at 1.25 HP, dual voltage (115/230 V), single-speed, and built on a 48Y frame for reliable replacement performance in residential pump systems.

Compatibility & Fitment

  • Fits pump systems requiring a 1.25 HP, 48Y frame, square-flange motor with threaded shaft and dual-voltage 115/230 V wiring.
  • Ideal when the existing motor draws excessive amps, produces bearing noise, leaks, or fails despite wet-end servicing.
  • Direct replacement for motors specifying HSQ125 or equivalent 1.25 HP 3450 RPM square-flange configuration.

Features & Specifications

  • Horsepower: 1.25 HP
  • Voltage: 115/230 V, single phase
  • Speed: 3450 RPM
  • Frame size: 48Y square-flange
  • Shaft: Threaded stainless-steel (~5/8″ diameter)
  • Amps: ~14.8 A at 115 V / ~7.4 A at 230 V
  • Enclosure: Open Drip-Proof (ODP)
  • Bearings: Sealed ball bearings on both ends

Installation Notes

Shut off power and lock out the circuit before servicing. Remove the pump housing and old motor, confirm mounting and shaft alignment match, install the new HSQ125 motor, wire per voltage label, secure pump and motor assembly, restore power and verify correct rotation, amp draw and smooth operation.

Maintenance Tip

Inspect motor bearings for noise or vibration annually, check mounting bolts for tightness, and verify current draw remains within spec. Replace the motor if amps increase, flow falls or lubrication/ventilation issues appear to maintain pump performance and prolong service life.
