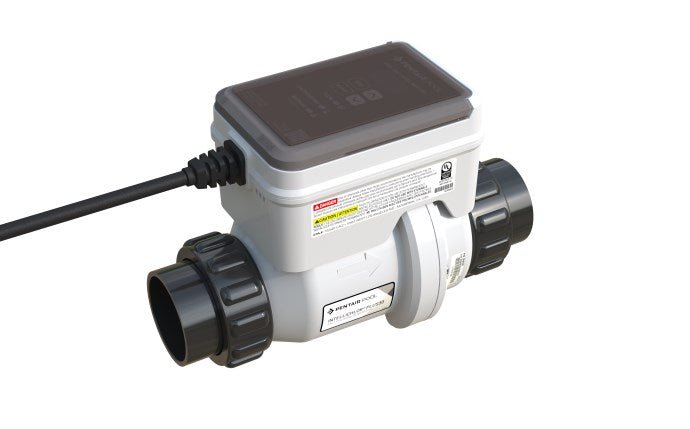

Pentair 523730 IntelliChlor Plus30 Salt Chlorine Generator Cell

The Pentair 523730 IntelliChlor Plus30 Salt Chlorine Generator Cell is a genuine Pentair replacement salt cell designed for residential pool sanitization. The Plus30 cell is rated for pools up to 30,000 gallons and produces up to 1.10 lbs of chlorine per 24 hours at 100% output.

This updated IntelliChlor Plus cell provides automated chlorine production from salt, helping maintain clean, clear pool water while reducing the need to manually handle and add traditional chlorine. It is designed as a drop-in replacement for compatible existing Pentair salt chlorine generator installations with no additional plumbing required in many retrofit applications.

Product Features

• Genuine Pentair IntelliChlor Plus replacement salt cell
• Manufacturer part number: 523730
• Plus30 model rated for pools up to 30,000 gallons
• Produces up to 1.10 lbs of chlorine per 24 hours at 100% output
• Compatible with existing Pentair IntelliChlor Power Center systems
• Compatible with select Pentair automation systems
• Drop-in retrofit design for compatible existing IntelliChlor and iChlor plumbing
• Easy-to-read LCD/LED interface with built-in diagnostics and warnings
• Redesigned conductivity sensor for improved salt level accuracy
• Built-in polarity reversal helps reduce scale buildup

Product Details

Included

• IntelliChlor Plus30 salt chlorine generator cell
• Attached cell cord
• Cell cleaning kit

Not Included

• Power Center
• Automation control system
• Salt for pool startup or adjustment
• Additional plumbing parts that may be required for non-standard installations

Compatibility Notes

• This cell is designed for use with compatible Pentair salt chlorine generator systems.
• Compatible with existing IntelliChlor Power Center applications.
• Designed to connect with compatible Pentair automation systems, including IntelliCenter, IntelliConnect, EasyTouch, IntelliTouch, SunTouch, IntelliSync, and IntellipH systems.
• The Plus30 model matches the iChlor-style form factor and is designed to retrofit compatible existing IntelliChlor or iChlor plumbing.
• This is the cell only. A compatible power center or automation system is required for operation.

Installation Notes

• Turn off all power to the pool equipment before installation or service.
• Install the cell in the proper flow direction as marked on the housing.
• The cell may be installed horizontally or vertically when installed according to Pentair instructions.
• Install the salt cell at least 3 feet from the heater outlet.
• Verify proper water flow before operating the salt system.
• Ideal salt level is 3,600 ppm as indicated on the IntelliChlor interface.
• Installation should be completed by a qualified pool professional or electrician.

Maintenance Tips

• Maintain proper pool water chemistry to help extend salt cell life.
• Keep salt level within the recommended operating range.
• Inspect the cell periodically for scale buildup on the plates.
• Clean the cell only when needed and follow the manufacturer’s cleaning instructions.
• Low water temperature, low salt, poor flow, scale buildup, or improper chemistry can reduce chlorine production.
• For winterization, remove the cell or use the proper spacer cell when required by the installation conditions.
