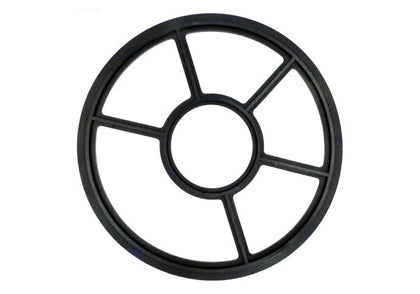

Pentair 2" HiFlow Multiport Valve Diverter Seal / Spider Gasket | 272409Z

The Pentair 272409Z HiFlow Multiport Valve Diverter Seal is a genuine OEM replacement spider gasket designed for select Pentair and Pac-Fab 2-inch HiFlow pool and spa multiport valves. This essential sealing component helps prevent internal water bypass between valve passages, maintaining proper filtration, backwashing, rinsing, and waste functions.

Manufactured to Pentair's original equipment specifications, the 272409Z replaces damaged, worn, or deteriorated diverter seals in compatible HiFlow valve assemblies. A properly installed spider gasket helps restore correct water flow through the selected valve position and prevents unwanted water loss through the waste line.

Product Features

• Genuine Pentair OEM Replacement: Original manufacturer diverter seal for compatible HiFlow multiport valves.
• 2-Inch HiFlow Valve Compatibility: Fits Pentair valve models 261049, 261050, and 261142.
• Spider Gasket Design: Seals the internal passages of the multiport valve.
• Helps Prevent Water Bypass: Reduces unwanted water movement between filter, backwash, rinse, and waste passages.
• Restores Valve Performance: Helps correct internal leakage caused by a worn or damaged diverter seal.
• Durable Rubber Construction: Designed for swimming pool filtration equipment.
• Direct OEM Replacement: Replaces original Pentair part number 272409.

Product Specifications

• Manufacturer: Pentair
• Manufacturer Part Number: 272409Z
• Alternate Part Number: 272409
• Distributor Part Number: PAC-061-3004
• Product Type: Multiport Valve Diverter Seal / Spider Gasket
• Valve Series: Pentair HiFlow
• Valve Size: 2 Inches
• Material: Rubber
• Color: Black
• Approximate Outside Diameter: 7.64 Inches
• Approximate Center Opening: 2.39 Inches
• Compatible Valve Models: 261049, 261050, 261142
• UPC: 788379693336
• Quantity: 1 Diverter Seal

Compatible Pentair HiFlow Valves

• Pentair 261049 – 2" HiFlow Multiport Valve
• Pentair 261050 – 2" HiFlow Multiport Valve
• Pentair 261142 – 2" HiFlow Multiport Valve

This replacement gasket is designed for the specified 2-inch HiFlow multiport valve assemblies. It is not a universal spider gasket and should not be substituted for gaskets used in other valve models without confirming compatibility.

Signs Your Multiport Valve Spider Gasket Needs Replacement

A worn or damaged spider gasket can allow pool water to travel between valve passages even when the selector is positioned correctly. Common symptoms include:

• Water continuously leaking from the waste line while the valve is in FILTER mode
• Reduced filtration efficiency from internal water bypass
• Unexpected water movement between valve passages
• Cracked, torn, flattened, or deteriorated gasket material
• Loose or displaced spider gasket inside the diverter assembly
• Water leaking to waste during normal pool circulation

These symptoms may also be caused by a damaged diverter, spring, or valve body. Inspect all internal valve components before replacing the seal.

Installation Instructions

1. Turn off the pool pump and disconnect electrical power.
2. Relieve all pressure from the pool filtration system before opening the valve.
3. Remove the multiport valve top assembly according to Pentair's service instructions.
4. Inspect the diverter and carefully remove the old spider gasket.
5. Thoroughly clean the gasket groove and remove all old adhesive and debris without damaging the valve components.
6. Inspect the new Pentair 272409Z gasket for proper fit.
7. Install and secure the gasket using a manufacturer-approved cyanoacrylate adhesive suitable for rubber-to-plastic bonding, following Pentair's instructions.
8. Allow the adhesive to cure completely before reassembling the valve.
9. Reinstall the valve top assembly and confirm the components are correctly seated.
10. Restart the filtration system and inspect for proper valve operation and leaks.

Installation Note: This diverter seal must be properly secured during installation. Follow Pentair's adhesive application and curing instructions. Do not use excessive adhesive or install the gasket over old adhesive residue.

Related Pentair HiFlow Valve Replacement Parts

Complete your HiFlow multiport valve repair with these related genuine Pentair parts available at Aqua Pool Supply.

• Pentair 272422 – 2" HiFlow Valve Top Assembly – Complete replacement upper valve assembly for compatible Pentair HiFlow models 261049, 261050, and 261142. An option when the existing diverter or upper valve components are damaged.
• Pentair 272120 – HiFlow 2" Valve Position Label – Replacement valve position label specifically designed for Pentair HiFlow valve model 261142.

Additional Pentair Multiport Valve Parts

Looking for other replacement components? Browse Pentair HiFlow multiport valve replacement parts at Aqua Pool Supply for additional valve handles, diverters, springs, O-rings, and complete valve assemblies.

Package Includes: One (1) genuine Pentair 272409Z HiFlow Multiport Valve Diverter Seal / Spider Gasket.

Note: This listing includes the rubber diverter seal only. The valve diverter, handle, spring, valve top assembly, and installation adhesive are sold separately unless otherwise specified.

Compatibility: Designed for Pentair 2-inch HiFlow valve models 261049, 261050, and 261142. Verify the valve manufacturer's part number before purchasing.

Safety: Never rotate, open, or disassemble a multiport valve while the pool pump is running or the filtration system is pressurized. Always follow the manufacturer's pressure-release and maintenance instructions.
